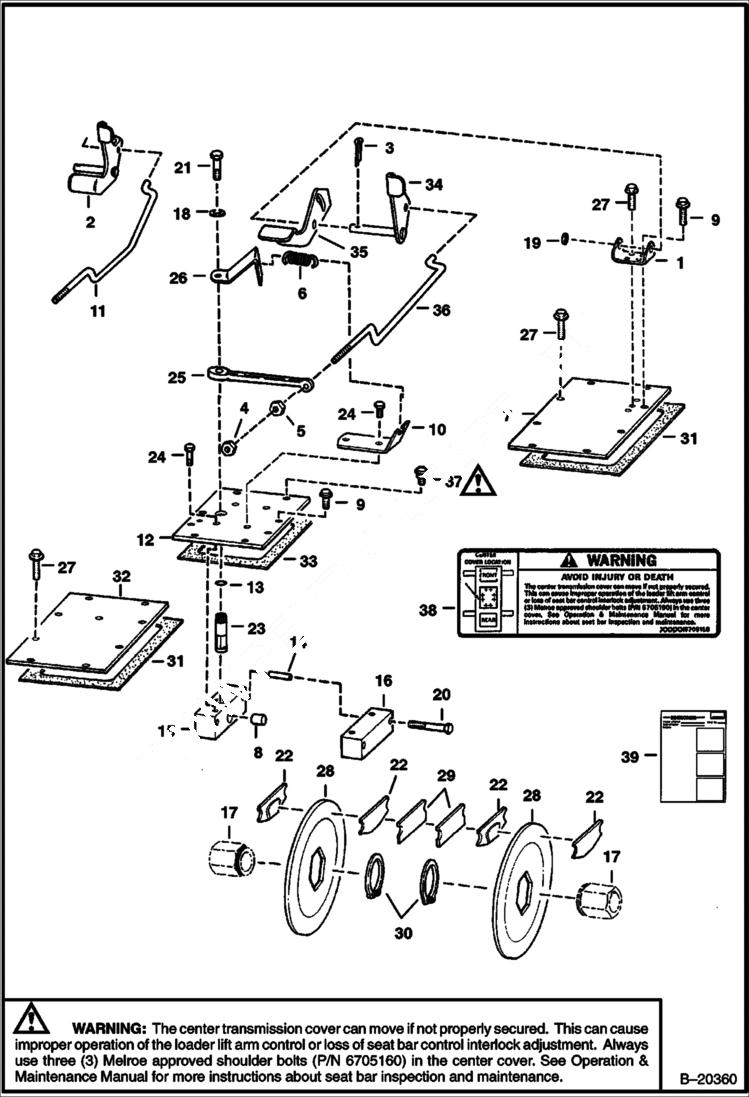

Запчасти Bobcat 800s DISC BRAKE DRIVE TRAIN

1

6700073

PEDAL MOUNT

2

PEDAL NLA - brake - Order Ref. 34-36 - Was 6578501 - A

2

2

2

2

3

1318565

COTTER PIN

4

85D8

NUT, 5

5

6564669

NUT, 10

6

6584584

SPRING

7

6578505

COVER

8

6569927

PIN

9

84G3716

SCREW 5

9

84G3716

SCREW 5

9

84G3716

SCREW 5

9

84G3716

SCREW 5

9

84G3716

SCREW 5

9

84G3716

SCREW 5

9

84G3716

SCREW 5

9

84G3716

SCREW 5

9

84G3716

SCREW 5

9

84G3716

SCREW 5

9

84G3716

SCREW 5

10

6701627

BRACKET

11

ROD NLA - Order Ref. 34-36 Was 6700074 - A

11

Was 6700074 - A

11

11

11

12

6702922

COVER Use W/45 degree bent cross link -

12

6702922

COVER See Illustration CONTROL PEDALS/ B20362

12

6702922

COVER

12

6706279

COVER Use W/new style cross link -

12

6706279

COVER See Illustration CONTROL PEDALS/ B20362

12

6706279

COVER

13

25K30100

O RING 10

14

6571796

SPACER

15

6571795

BLOCK

16

6571794

BLOCK

17

6708254

HUB See Illustration GEARCASE/ B20249 SEE NOTE WAS 6703055 - A

18

6506477

WASHER

19

25E25

WASHER 10

20

17C880

BOLT

21

17C820

BOLT

22

6700706

PAD

23

6569842

CAM PIN

24

17C816

BOLT

25

6563823

LEVER

26

6701626

BRACKET Was 6577552 - A

27

84G3712

BOLT 5

28

6705721

DISC

29

6702805

SPACER

30

742666

SNAP RING

31

6703097

GASKET, TRANS COVER

32

6700330

COVER

33

6703099

GASKET

34

6704812

PEDAL brake

34

6704812

PEDAL

34

6704812

PEDAL

34

6704812

PEDAL

34

6704812

PEDAL

34

6704812

PEDAL

35

6704811

PEDAL brake

35

6704811

PEDAL

35

6704811

PEDAL

35

6704811

PEDAL

35

6704811

PEDAL

35

6704811

PEDAL

36

6704810

ROD

36

6704810

ROD

36

6704810

ROD

36

6704810

ROD

36

6704810

ROD

36

6704810

ROD

37

6705160

SHOULDER BOLT Always use (3) 6705160 Shoulder Bolts in Center Cover ... SEE WARNING ON ILLUSTRATION

37

6705160

SHOULDER BOLT

37

6705160

SHOULDER BOLT

37

6705160

SHOULDER BOLT

37

6705160

SHOULDER BOLT

38

6705158

DECAL warning

38

6705158

DECAL

38

6705158

DECAL

38

6705158

DECAL

38

6705158

DECAL

39

6722343

INSTRUCTIONS

39

6722343

INSTRUCTIONS

39

6722343

INSTRUCTIONS

39

6722343

INSTRUCTIONS

39

6722343

INSTRUCTIONS
