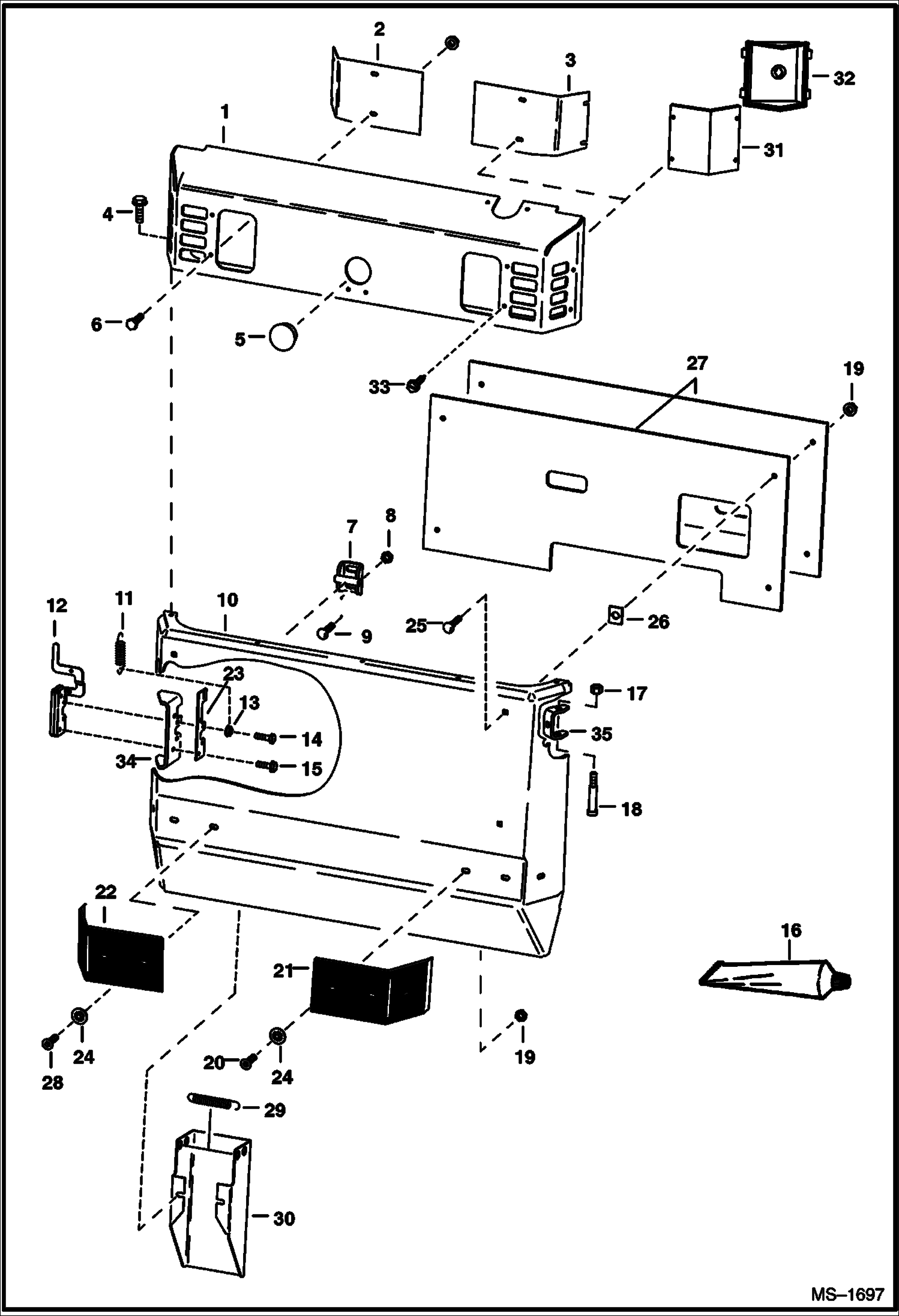

Запчасти Bobcat 800s REAR DOOR MAIN FRAME

1

6703868

HOOD steel

2

6704682

COVER

3

6704683

COVER

4

84G3716

SCREW 5

5

6718796

PLUG Was 6660646 - A

6

17C412

BOLT 5

7

6715157

STRIKER ASSY. Was 6579969 - A

8

83D8

NUT 5

9

37C820

BOLT

10

6708624

REAR DOOR Was 6704639 - A

11

6563128

SPRING

12

6649420

LATCH, REAR DOOR

13

57D4

NUT

14

17C424

BOLT

15

31C420

BOLT 5

16

6649835

ADHESIVE Use W/Ref. 21 & 22

17

59D6

NUT

18

38C856

BOLT

19

83D6

NUT 5

20

9G628

BOLT 5

21

6577400

BUMPER bond - W/Ref. 16

22

6577401

BUMPER bond - W/Ref. 16

23

6704464

GUIDE latch

24

6704332

WASHER

25

37C624

BOLT

26

1612281

SPRINGNUT

27

6712177

WEIGHT Was 6704638 - A

28

9G636

BOLT 5

29

6700743

SPRING

30

6709379

TOOL HOLDER Was 6705100 - A

31

6703797

LENS See Illustration LIGHT KIT/ B20367 - light option only

32

6704362

HOUSING See Illustration LIGHT KIT/ B20367 - light - light option only

33

6706517

SCREW See Illustration LIGHT KIT/ B20367 - self tapping - light option only - Was 6704400 - A

34

6700279

BRACKET weld on

35

6577395

HINGE
