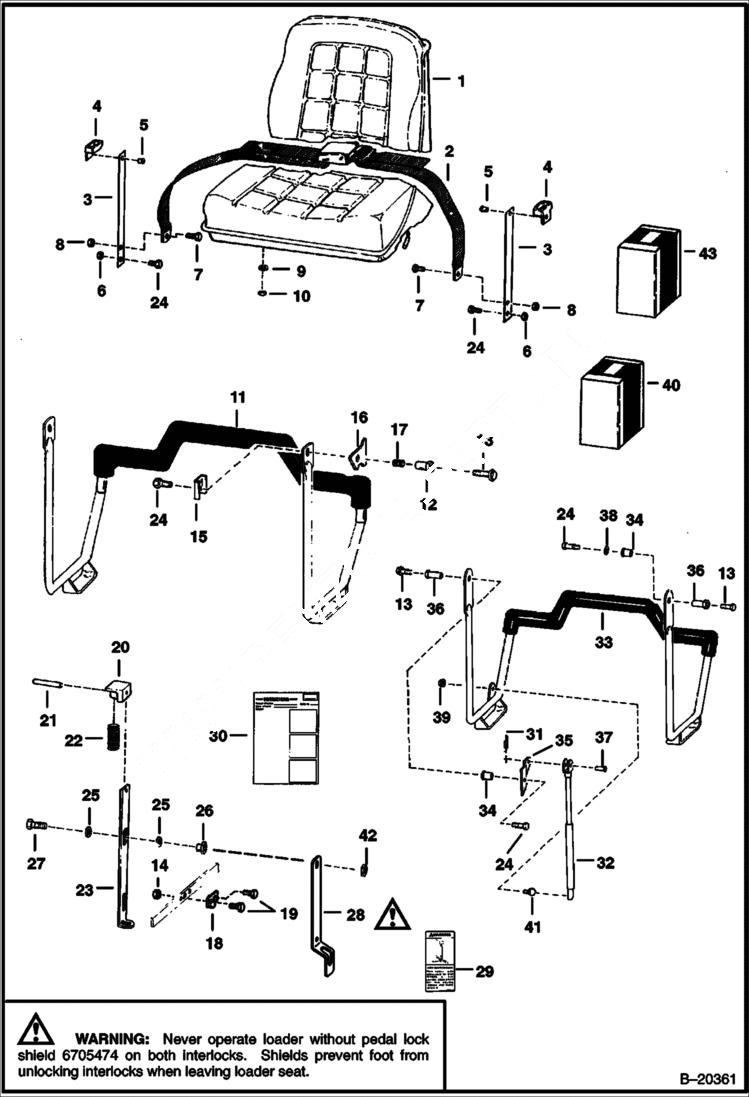

Запчасти Bobcat 800s SEAT & SEAT BAR MAIN FRAME

1

SEAT See Illustration SEAT/ B7185

2

SEAT BELT NLA - Order Ref. 43 - Was 6564774 - A

2

SEAT BELT NLA - Order 6675074 Seat Belt & (2) of Ref. (6725373 Spring Plate) - Was 6667875 - A

2

SEAT BELT NLA - W/ Spring Plates - Was 6725403 - A

2

6675074

SEAT BELT W/O spring plates

3

GUIDE ASSY. NLA - W/Ref. 4 & 5 - 13.75 - Use W/NLA 6564774 Seat Belt - Was 6565354 - A

3

GUIDE ASSY. NLA - W/Ref. 4 & 5 - 12.25 - Use W/NLA 6667875 Seat Belt - Order 6711908, Spring Plate, Ref. 4 & (2) of Ref. 5 - Was 6711907 - A

3

6711908

SPRING PLATE Use W/Ref. 2 (NLA/ 6667875 Seat Belt)

3

6725373

SPRING PLATE Use W/Ref. 2 (6675074 seal belt)

4

GUIDE NLA - Order 6703703 - Was 6565355

5

6630207

RIVET 5 Was 6512797 - A

6

85D6

NUT, 5

7

17C716

BOLT

8

85D7

NUT

9

4E5

WASHER

10

61D5

NUT

11

6706324

SEAT BAR one piece - Was 6703301 - A

12

6568742

BUSHING

13

35C608

BOLT

14

83D6

NUT 5

15

6563557

WASHER

16

6563313

RETAINER

17

6704453

SPRING Was 6578252 - A

18

6563151

LINK

19

17C616

BOLT 5

20

6563148

BLOCK, SPRING

21

14J2512

PIN 5

22

6702430

SPRING, COMPRESSION

23

6578150

LOCK

24

17C612

BOLT 5

25

6700170

WASHER plastic

26

6559479

NUT

27

6705489

BOLT Was 84G003724B - B

28

6705474

LOCK SHIELD Never operate loader without pedal lock shield on both interlocks ... SEE WARNING ON PREVIOUS PAGE

29

6705720

DECAL

30

6722392

INSTRUCTIONS W/Ref. 28

31

6631418

RING, RETAINING

32

6664207

GAS SPRING

33

6706358

SEAT BAR for Use W/Gas Spring

34

6706387

BUSHING

35

6706388

BRACKET

36

6706389

BUSHING

37

4F5062

PIN

38

25E21

WASHER 5

39

83D5

NUT 5

40

6706796

KIT See Illustration SEAT BAR KIT/ C3341 - gas spring seat bar

41

6649244

BALL STUD

42

59D6

NUT

43

KIT NLA- seat belt - W/Ref. 2 & 3 - Order Ref. 2 (6675074 Seat Belt) & (2) of Ref. 3 (6725373 Spring Plate) - Was 6713061 - A
