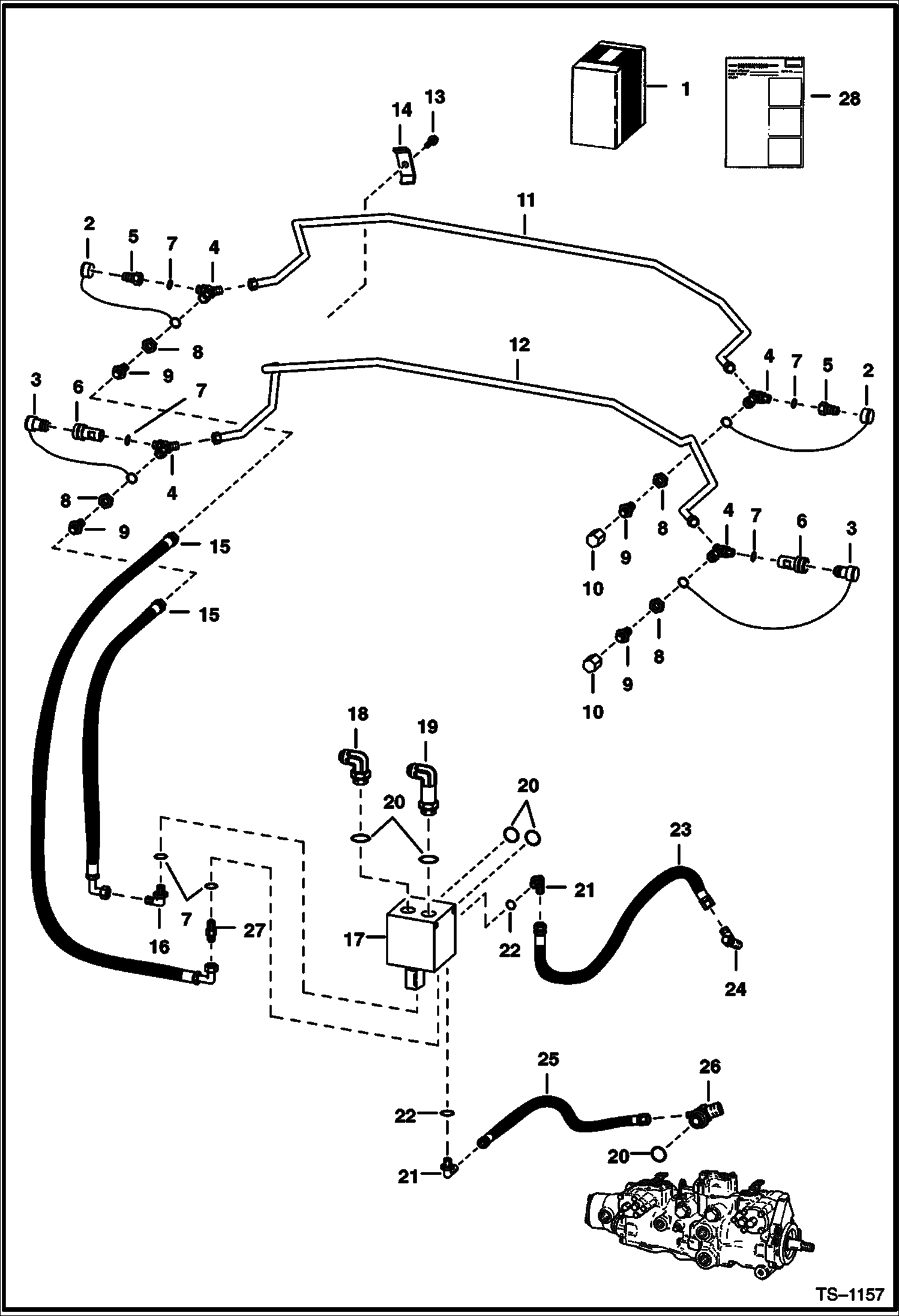

Запчасти Bobcat 800s REAR AUXILIARY ACCESSORIES & OPTIONS

1

KIT SALES - Ref. 2-26 & 28

2

1513549

CAP

3

1519324

PLUG

4

6706220

TEE W/Ref. 7

4

58K11

O RING 10 Face Seal

5

6648969

QUICK COUPLER male

6

6648967

QUICK COUPLER female

6

6655795

SEAL KIT

7

79K6

O RING 10

8

61E04

NUT

9

51E0404

ADAPTER

10

63E04

CAP

11

6706167

TUBE

12

6706168

TUBE

13

84G3716

SCREW 5

14

6500989

CLAMP

15

6706221

HOSE

16

17K5

ELBOW W/Ref. 7

17

6649686

VALVE See Illustration REAR AUXILIARY VALVE/ B12959 DIVERTER

18

17K8

FITTING W/Ref. 20

19

6519187

ELBOW W/Ref. 20

20

79K12

O RING 10

21

17K3

ELBOW W/Ref. 22

22

79K4

O RING 10

23

6706276

HOSE Was 6702276 - D

24

21K5

TEE W/Ref. 7

25

6706228

HOSE

26

6706144

CONNECTOR W/Ref. 20

27

15K5

FITTING Part of Base Equipment

28

6722589

INSTRUCTIONS
