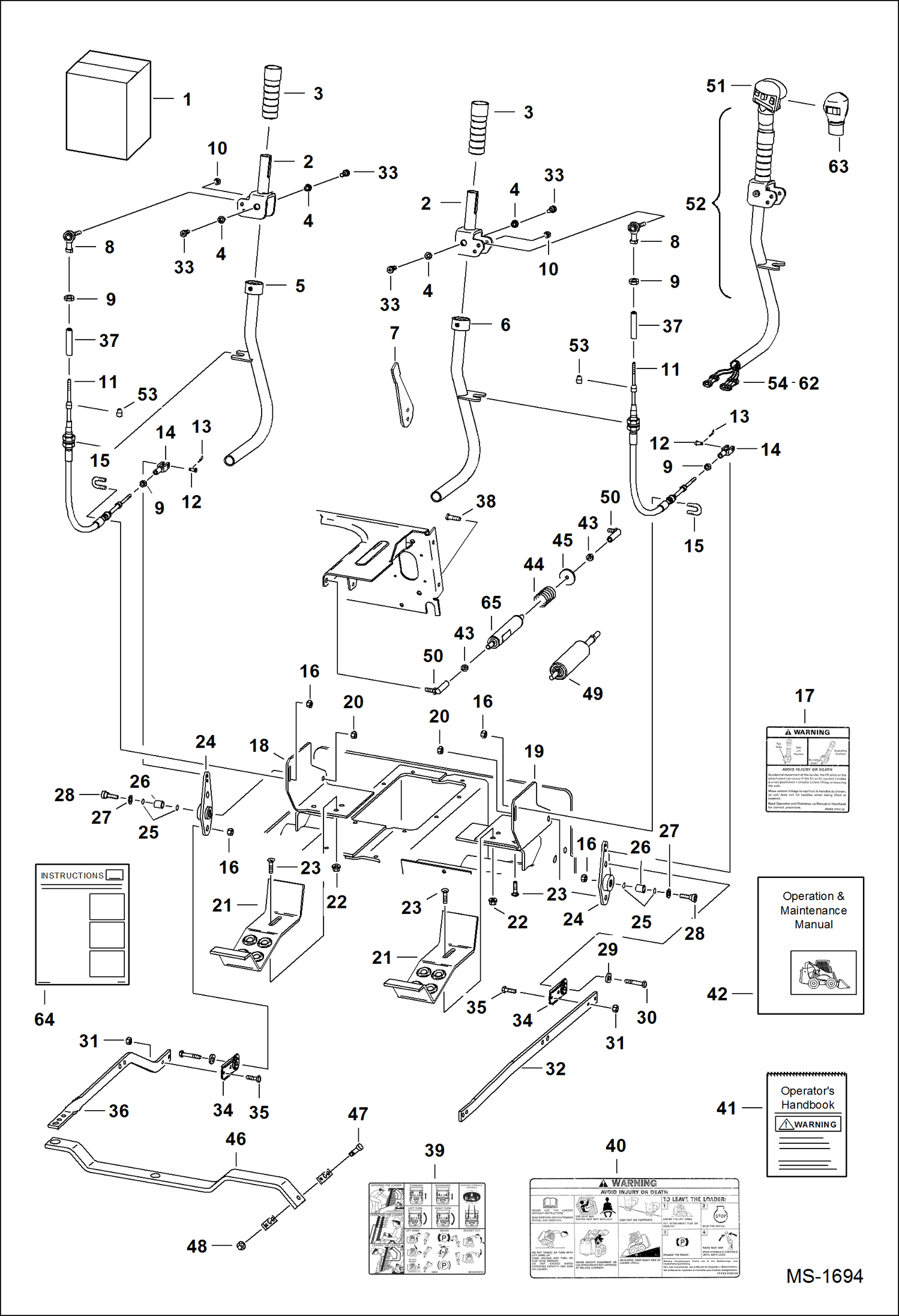

Запчасти Bobcat 800s HAND CONTROLS KIT (S/N 5084 11354 & Above) (S/N 5097 11001 & Above) ACCESSORIES & OPTIONS

1

KIT NLA - Cobra style handle - Ref. 2 - 45, 47, 48, 51 - 54 & 61 - Order kit from Sales - Was 6703676 - A

1

KIT NLA - Multi switch handle - Ref. 2 - 45, 47, 48 & 51 - 61 -Order kit from Sales - Was 6706823 - A

1

KIT NLA - Multi switch handle - Ref. 2 - 45, 47, 48 & 51-61- Order kit from Sales - Was 6708160 - A

2

6702786

LEVER Use W/6658613 Cable

2

6707349

LEVER Use W/6666379 Cable

3

6702621

GRIP Use W/6658613 Cable

3

6707367

GRIP Use W/6666379 Cable

4

6702990

BUSHING bronze sleeve

5

6702787

LEVER Use W/6658613 Cable

5

6707351

LEVER Use W/6666379 Cable

6

6702791

LEVER Use W/6658613 Cable

6

6707352

LEVER Use W/6666379 Cable

7

6702775

LEVER throttle

8

6631036

JOINT

9

8D4

NUT

10

86D4

NUT

11

6658613

CABLE 31.5'' (800 mm) long

11

6666379

CABLE 33.5'' (851 mm) long

12

4F4051

PIN

13

6513495

COTTER PIN

14

2J4200

CLEVIS

15

6592766

U-BOLT

16

83D5

NUT 5

17

6703726

DECAL warning

18

6706420

MOUNT cable - Was 6702778 - A

19

6706421

MOUNT cable - Was 6702777 - A

20

85D6

NUT, 5

21

6702776

BRACKET

22

57D6

NUT 5

23

37C620

BOLT carriage

24

6706281

BELLCRANK W/Ref. 26 - Was 6704292 - A

25

58K014

O-RING 10

26

6702782

BUSHING bronze

27

6655781

BEARING thrust

28

38C816

BOLT shoulder

29

6563914

WASHER

30

38C610

BOLT - Was 6704285 - A

31

85D4

NUT 5

32

6703122

LINK tilt

33

38C606

BOLT

34

6658682

BEARING swivel

35

17C410

BOLT 10

36

6702773

LINK lift

37

6658930

BOOT

38

25G612

SCREW socket hex head

39

6703724

DECAL operating

40

6703725

DECAL warning

41

6703678

HANDBOOK KIT for Kits made NLA

41

6708159

HANDBOOK, OPERATOR'S W/WIRE ROPE

41

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

41

6558310

SLEEVE wire rope

42

6724035

MANUAL operator - Was 6720916 - A

43

8D6

NUT 5

44

6703463

SPRING

45

619021

WASHER, 5

46

LINK See Illustration CONTROL PEDALS/ D2024 NOT IN KIT

47

38C612

BOLT

48

59D6

NUT

49

GAS SPRING NLA - Japan Option - Order Ref. 65 - Was 6649551 - A

50

6599744

BALL JOINT Not in Kit

51

6706340

HANDLE ASSY. R.H. - Multi switch - Also Order Ref. 53, 54, 57, 58, 61 & 62

51

6640690

PIN

51

6641176

SEAL

51

6706567

KIT R.H. Multi switch - includes Ref. 51, 53, 54, 57, 58, 61 & 62

51

6707976

HANDLE ASSY. L.H. - Multi switch - Also Order 53, 54, 56, 59 & 60 - Was 6705923 - A

51

6640690

PIN

51

6640691

PIN

51

6641176

SEAL

51

6662857

PIN

51

6706568

KIT L.H. Multi switch - includes Ref. 51, 53, 54, 56 & 59 - 62

51

6680447

DECAL Was 6677370 - A

52

LEVER ASSY. NLA - R.H. - Cobra style - W/Ref. 2 - 4, 6, 33, 51, 53 & 54-Order 6666379 Cable -Was 6704487 - A

52

LEVER ASSY. NLA - L.H. - Cobra style - W/Ref. 2 - 5, 33, 51, 53, & 54 - Order 6666379 Cable - Was 6704488 - A

52

LEVER ASSY. NLA - R.H. - Multi switch style - W/Ref. 2 - 4, 6, 33, 51, 53, 54, 57 & 58 - Order 6666379 Cable - Was 6707099 - A

52

LEVER ASSY. NLA - L.H. - Multi switch style - W/Ref. 2 - 5, 33, 51, 53, 54, 56, 59 & 60 - Order 6666379 Cable - Was 6707100 - A

52

LEVER ASSY. NLA - R.H. - Order component parts - Was 6707365 - A

52

LEVER ASSY. NLA - L.H.- Order component parts - Was 6707366 - A

53

6666534

SEAL

54

6641180

LOCK Use W/ 2-pin connector

55

6641179

CONNECTOR 2-pin

56

6641178

CONNECTOR 2-pin

57

6641173

CONNECTOR 6-pin

58

6641181

LOCK 6-pin

59

6664599

CONNECTOR 3-pin triangle - Was 6664184 - A

60

6664800

LOCK 3-pin triangle - Was 6664186 - A

61

6640699

CONNECTOR 3-pin

62

6640700

LOCK 3-pin

63

6704454

HANDLE ASSY. See Illustration CONTROLS ELECTRICAL/ D2150 COBRA - Also Order Ref. 53-55

64

6722847

INSTRUCTIONS - Was 6720917 - A

65

7188108

GAS SPRING
