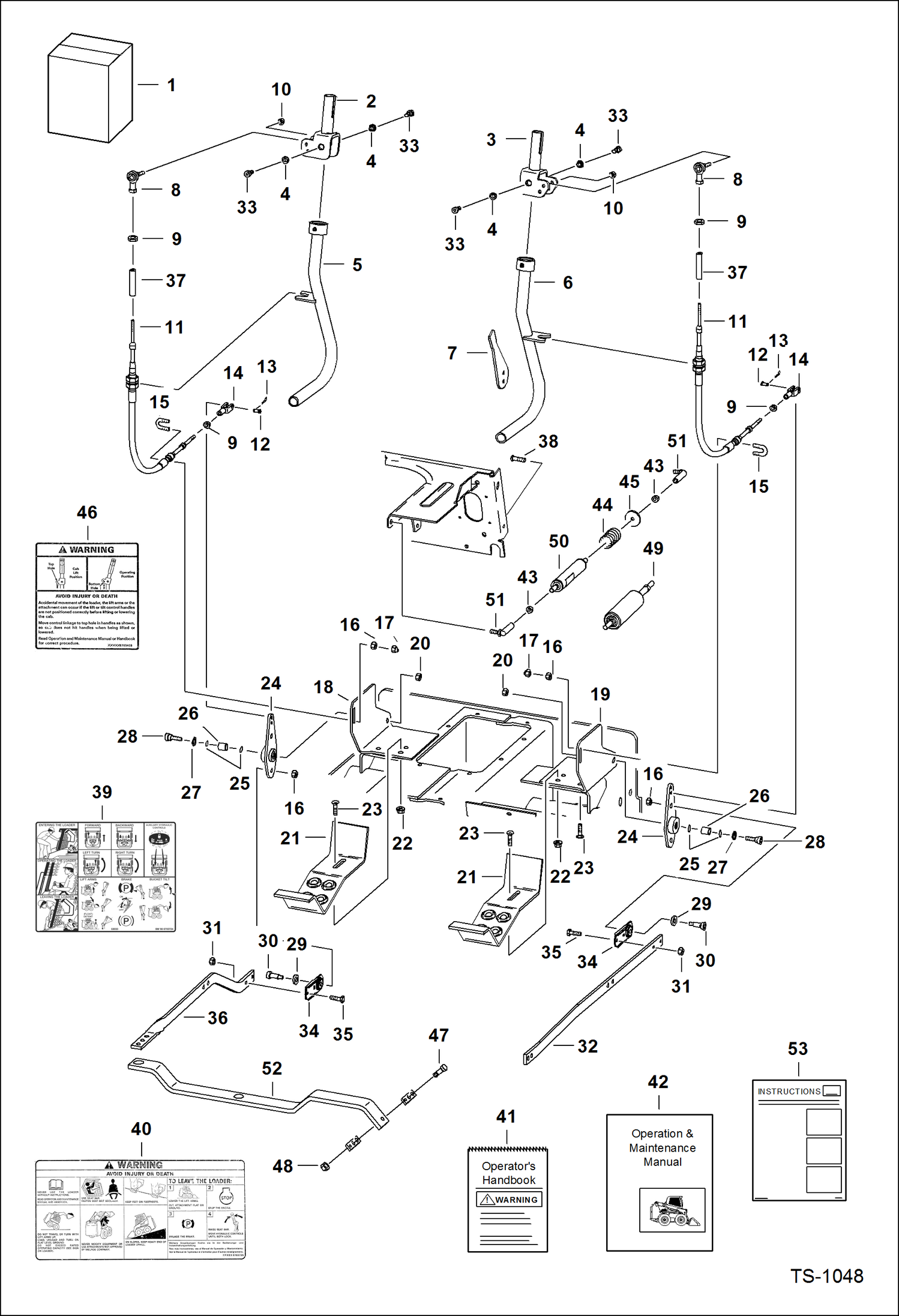

Запчасти Bobcat 800s HAND CONTROLS KIT (S/N 5084 11353 & Below) ACCESSORIES & OPTIONS

1

KIT NLA - Ref. 2-48 & 53-Was 6703224 - A

2

6702992

LEVER

3

6702993

LEVER

4

6702990

BUSHING bronze sleeve

5

6702787

LEVER

6

6702791

LEVER

7

6702775

LEVER throttle

8

6631036

JOINT

9

8D4

NUT

10

86D4

NUT

11

6658613

CABLE

12

4F4051

PIN

13

6513495

COTTER PIN

14

2J4200

CLEVIS

15

6592766

U-BOLT

16

83D5

NUT 5

17

46D5

NUT

18

6706420

MOUNT cable - Was 6702778 - A

19

6706421

MOUNT cable - Was 6702777 - A

20

85D6

NUT, 5

21

6702776

BRACKET

22

57D6

NUT 5

23

37C620

BOLT carriage

24

6706281

BELLCRANK W/Ref. 26 - Was 6704292 - A

25

58K014

O-RING 10

26

6702782

BUSHING bronze

27

6655781

BEARING thrust

28

38C816

BOLT shoulder

29

6563914

WASHER

30

6704285

BOLT - Was 17C000620B - B

31

85D4

NUT 5

32

6703122

LINK tilt

33

38C606

BOLT

34

6658682

BEARING swivel

35

17C410

BOLT 10

36

6702773

LINK lift

37

6658930

BOOT

38

25G612

SCREW socket hex head

39

6702996

DECAL operating

40

6702997

DECAL warning

41

6703280

HANDBOOK

41

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

41

6558310

SLEEVE wire rope

42

6720683

MANUAL operator

43

8D6

NUT 5

44

6703463

SPRING

45

619021

WASHER, 5

46

6703403

DECAL warning

47

38C612

BOLT

48

59D6

NUT

49

GAS SPRING NLA - Japan Option - Order Ref. 50 - Was 6649551 - A

50

7188108

GAS SPRING

51

6599744

BALL JOINT Not in Kit

52

LINK See Illustration CONTROL PEDALS/ D2024 Not in Kit

53

6720672

INSTRUCTIONS
