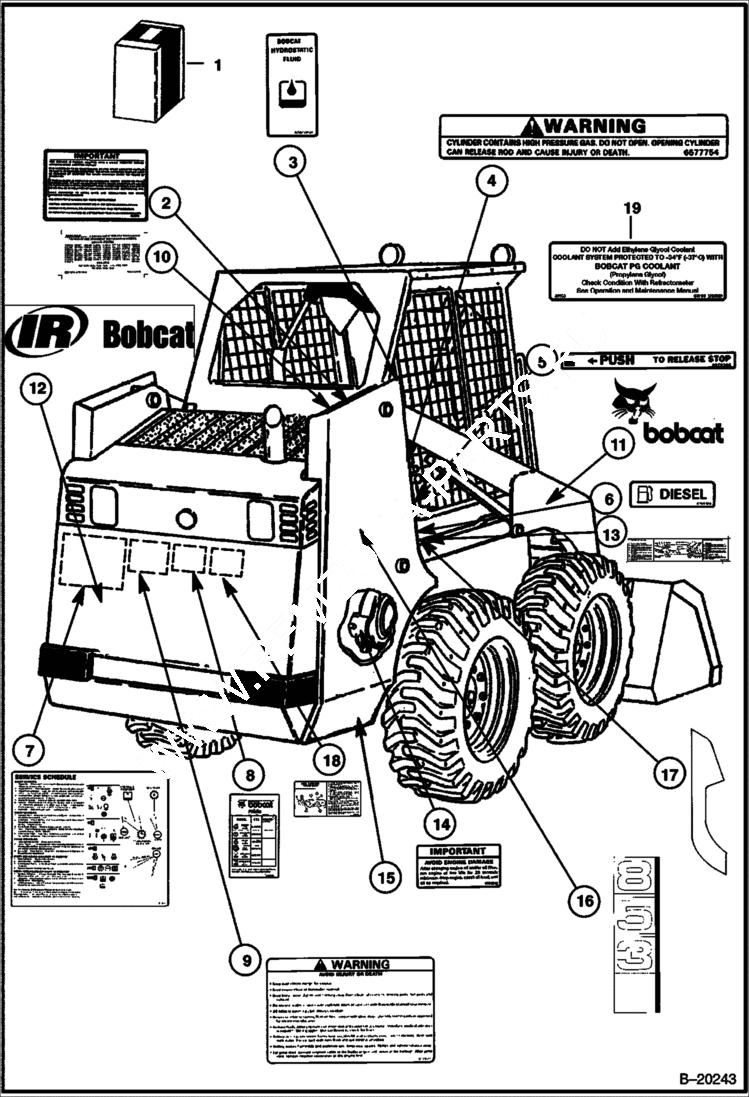

Запчасти Bobcat 800s DECALS ACCESSORIES & OPTIONS

1

6701898

KIT See Illustration DECALS/ B20242 DECAL - REF. 2 - 13 ON THIS PAGE & REF. 2 - 14

2

6560573

DECAL spark arrestor

3

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

4

6577754

DECAL, WARNING 5 gas spring

5

6578368

DECAL, OPERATION push to release stop

6

6700388

DECAL diesel

7

6708212

DECAL service - Was 6578218 - A

8

6703329

DECAL filters - Was 6700273 - A

9

6579511

DECAL warning

10

DECAL NLA - patent - Was 6557224 - C

11

6559070

DECAL R.H. - Bobcat head

11

6559071

DECAL L.H. - Bobcat head

12

DECAL NLA - Bobcat Logo - Was 6727307 - A

13

6706558

DECAL, OPERATION lift arm support - Was 6701921 - C

14

6702942

DECAL See Illustration ENGINE & ATTACHING PARTS/ B20240 WARNING - NOT IN KIT

15

DECAL NLA - trim R.H. - Not in Kit - Was 6701206 - C

15

DECAL NLA - trim L.H. - Not in Kit - Was 6701207 - C

16

6702854

DECAL model no. 853 R.H. - Not in Kit - Was 6579966 - A

16

6703291

DECAL model no. 853H R.H. - Not in Kit

17

DECAL NLA - upright patch - R.H. - Shown - Not in Kit - Was 6701204 - C

17

DECAL NLA - upright patch - L.H. - Not Shown - Not in Kit - Was 6701205 - C

18

6705221

DECAL belt tension - Not in Kit

19

6708929

DECAL, COOLANT propylene glycol
