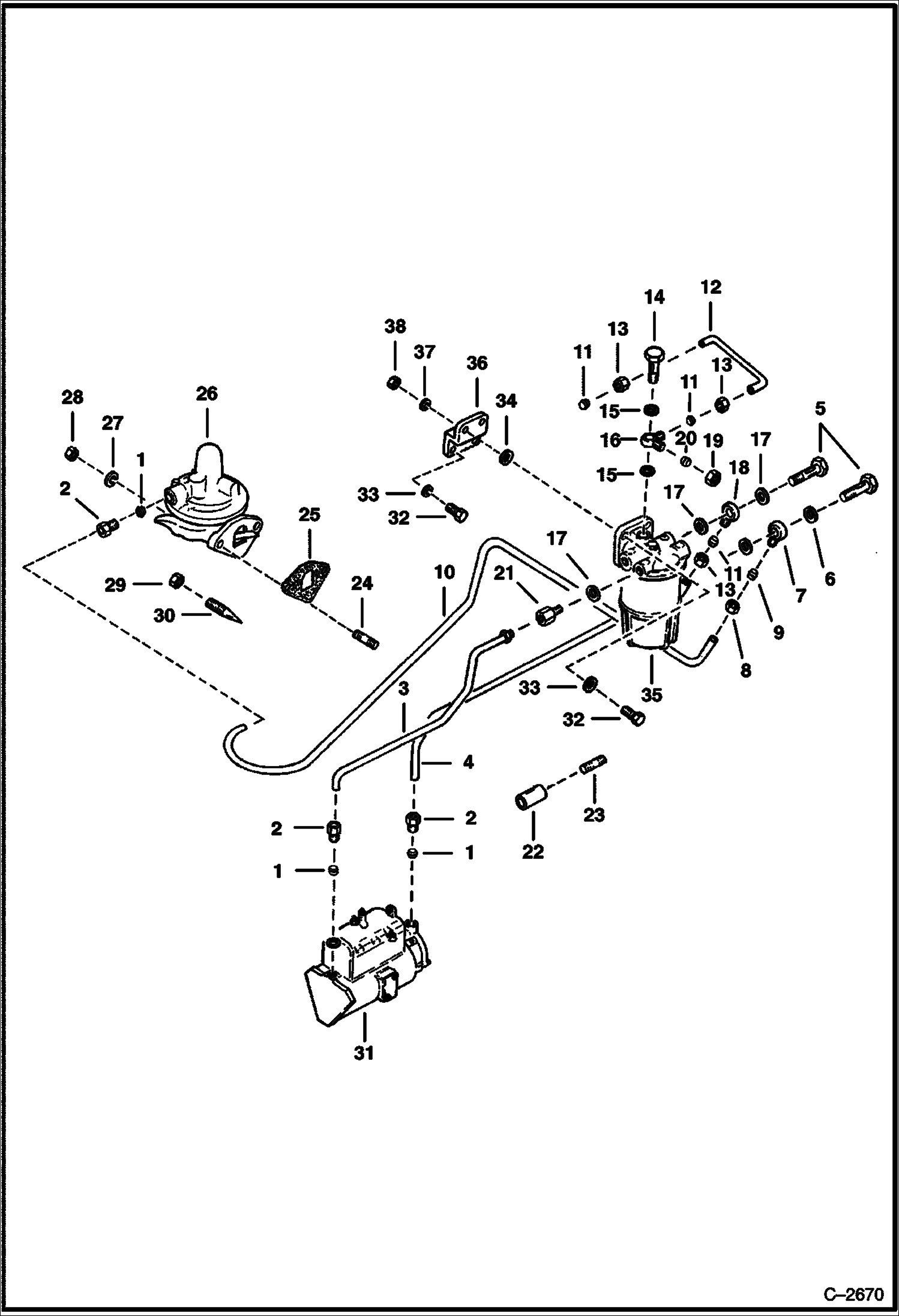

Запчасти Bobcat 800s FUEL LINES POWER UNIT

1

3727375

FERRULE

2

3727374

NUT

3

PIPE NLA - Was 6598669 - A

4

PIPE NLA - purchase locally - Was 6514616 - A

5

3727284

BOLT

6

3727285

WASHER

7

3727283

CONNECTER banjo

8

3729963

NUT

9

3729965

FERRULE

10

PIPE NLA - See Service Bulletin 843-003 - Order (2) 6599488 fittings, (2) 6582515 bulk hose, & (2) 6511047 clamps

11

3490132

SEAL

12

PIPE NLA - purchase locally - Was 6514618 - A

13

3490133

UNION NUT

14

BOLT NLA - Was 6598041 - A

15

3490721

WASHER

16

3490200

FITTING

17

6515755

WASHER

18

6510452

CONNECTION banjo

19

58F3

NUT

20

57F3

SLEEVE

21

3739799

VALVE

22

6598670

SPACER

23

3551821

STUD

24

6510484

STUD

25

6668032

GASKET Was 3727370B - A

26

997981

FUEL PUMP

26

6651441

KIT Was 994896B - A

27

23E5

L WASHER Was 2E000005B - A

28

10D5

NUT

29

8D7

NUT

30

6598683

BOLT

31

PUMP See Illustration FUEL INJECTION SYSTEM/ C2635 INJECTION

32

BOLT NLA - Was 6598037 - A

33

6598019

WASHER

34

3736954

WASHER

35

3551883

FILTER

35

3885315

FILTER, FUEL 12

36

BRACKET NLA - Was 6598668 - A

37

6514996

WASHER

38

6598006

NUT Was 6514984 - A
