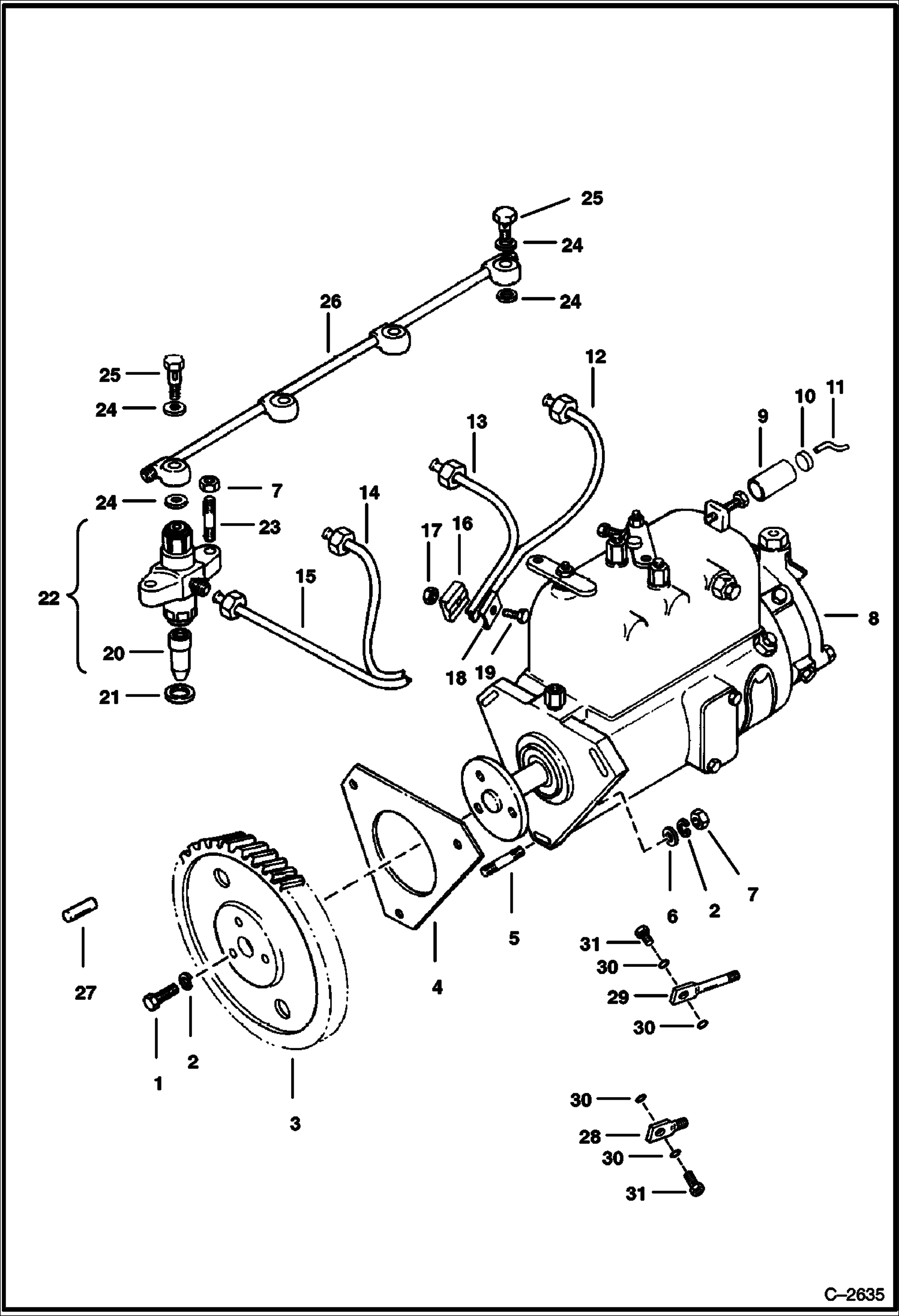

Запчасти Bobcat 800s FUEL INJECTION SYSTEM POWER UNIT

1

18C518

BOLT

2

23E5

L WASHER Was 2E000005B - A

3

GEAR NLA - Was 997991 - A

4

6668020

GASKET Was 3490326B - A

5

3734650

STUD

6

3725700

WASHER

7

10D5

NUT

8

PUMP NLA - injection - order 6598656REM - Was 6598656 - A

8

6598656REM

PUMP, FUEL INJ. PERKINS 4.154

9

3490323

SLEEVE

10

3490324

SEAL

11

3490325

WIRE

12

997996

TUBE

13

6514474

PIPE

14

6514473

PIPE

15

997993

TUBE

16

3725677

DAMPERS

17

1781096

NUT Was 3734234B - A

18

3725678

PLATE

19

46G1016

SCREW

20

6598658

NOZZLE

21

3490720

WASHER

22

6598657

INJECTOR ASSY

23

998286

STUD

24

3490095

WASHER 5

25

3490094

BOLT

26

PIPE NLA - Was 6514475 - A

27

3726071

PIN

28

3739017

BANJO banjo - Short

29

3739041

BANJ.CONN banjo - Long

30

3739007

WASHER

31

6630946

BOLT banjo
