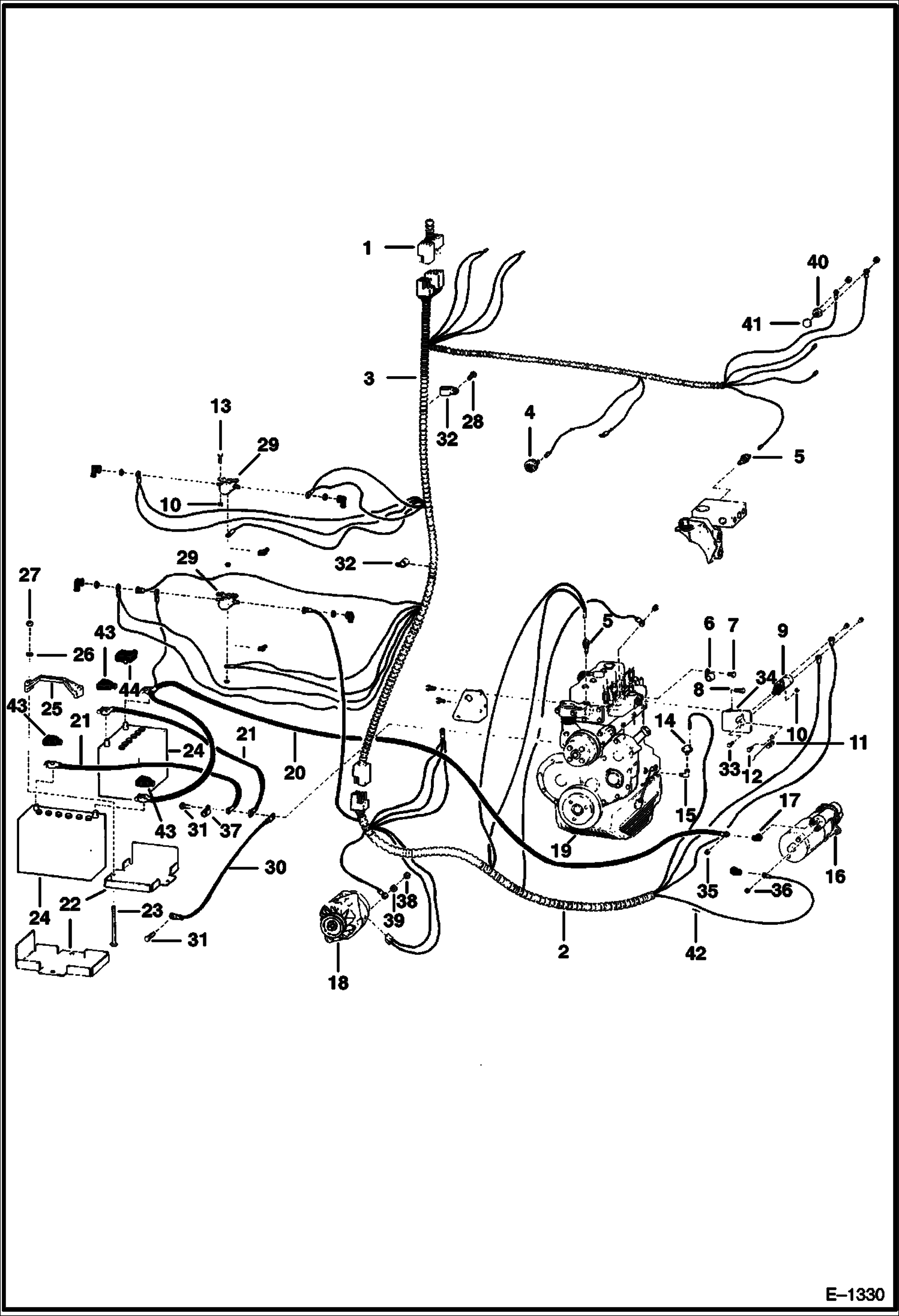

Запчасти Bobcat 800s ENGINE ELECTRICAL ELECTRICAL SYSTEM

1

HARNESS See Illustration CAB ELECTRICAL SYSTEM/ B18266 CAB

2

6562699

HARNESS engine

3

6562700

HARNESS hydro.

4

6631695

SWITCH hydrostatic oil pressure - Was 6519715 - A

5

6598384

SWITCH temp.

6

30H55

CLIP

7

1CM612

BOLT Was 4CM612 - A

8

18C510

BOLT

9

6599638

SOLENOID See Service Bulletin 843-002 - 1 wire internally grounded - Was 6598301 - A

10

85D4

NUT 5

11

6560292

SPRING

12

18C408

BOLT

13

17C410

BOLT 10

14

6631010

SWITCH, PRESS OIL ENG pressure

15

1309105

ELBOW

16

STARTER See Illustration STARTER/ D2119 See Illustration STARTER/ B18270

17

6560172

COVER

18

ALTERNATOR See Illustration ALTERNATOR/ B18268

19

ENGINE See Illustration ENGINE/ B18275 PERKINS 4.154

20

6565059

CABLE Positive - W/Ref. 43 & 44

21

6564716

CABLE Negative - W/Ref. 43

22

6558826

MOUNT battery

23

6569623

BOLT

24

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

24

6630154

CAP Danger

24

6630155

CAP Poison

24

6514898

CAP tilt-tite

25

6569203

CLAMP battery

26

25E15

WASHER

27

59D5

NUT 5

28

18C612

BOLT

29

6659319

SOLENOID Was 6559319 - A

30

6563025

CABLE

31

84G3712

BOLT 5

32

30H46

CLIP

33

93G410

BOLT

34

6562938

MOUNT

35

7D6

NUT

36

12D8

NUT

37

30H31

CLAMP 10

38

1DM6

NUT Was 4DM6 - A

39

6E4

WASHER 10

40

2350984

SWITCH brake

41

COVER NLA - Was 6563177 - A

42

3675725

DIODE

43

2356058

BOOT

44

6598956

BOOT
