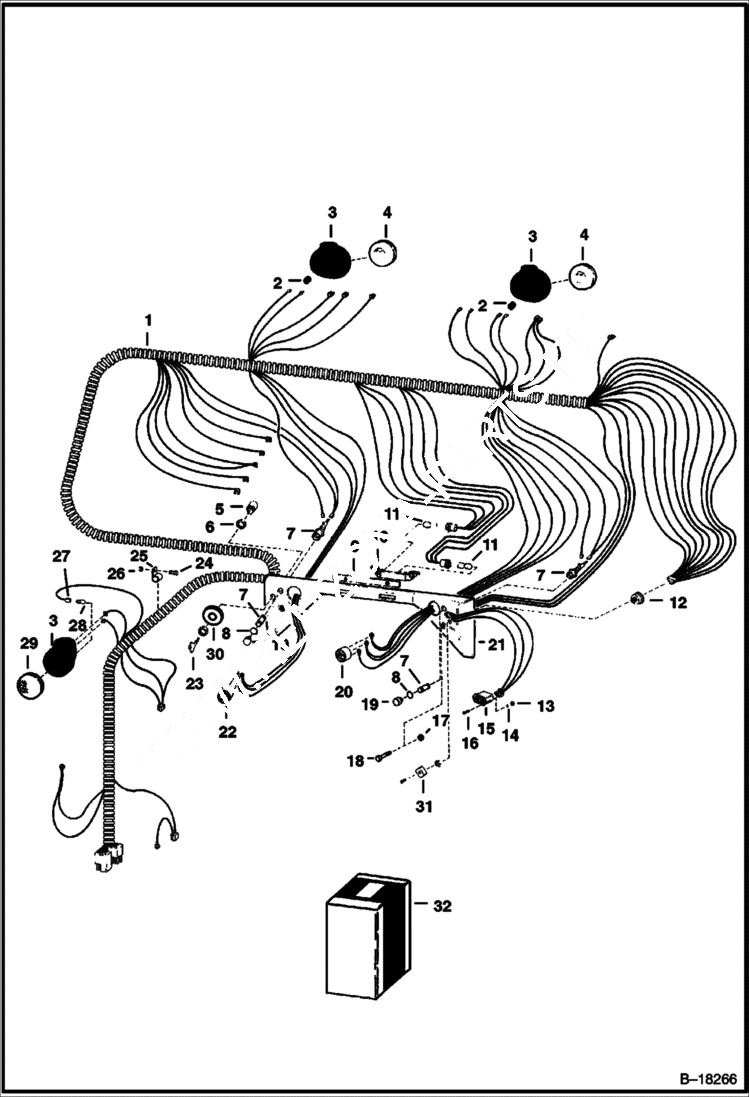

Запчасти Bobcat 800s CAB ELECTRICAL SYSTEM ELECTRICAL SYSTEM

1

6561500

HARNESS

2

6557493

GROMMET

3

6558142

HOUSING

4

6557486

LAMP

5

SWITCH See BTI289 NLA - Order Ref. 32 - Was 6519592 - A

5

6665606

SWITCH

6

6598721

NUT for 6519592

6

6674202

NUT for 6665606

7

6513469

HOLDER fuse

7

1319451

FUSE 5

8

6514643

GASKET

9

6560699

LENS

10

6558242

BRACKET

11

6513468

BULB

12

6512808

SWITCH

13

12D6

NUT 10

14

12E6

WASHER

15

6664886

HOURMETER Was 6631657 - A

16

85G608

SCREW

17

83D5

NUT 5

18

17C572

BOLT

19

6514642

CAP

20

6634273

GAUGE, FUEL Was 6560353 - A

21

6560182

PANEL

22

6659912

VOLTMETER Was 6560354

23

6512809

KEY for 6519592

23

KEY NLA - for 6665606 switch - Order 6693241 - Was 6709527 - A

23

6693241

KEY 10 ignition - single key W/O ring

24

10C512

BOLT Was 6553808 - A

25

30H45

CLIP Was 30H000041B - B

26

61D5

NUT

27

6557504

SOCKET

28

960855

1003 BULB #1003 - Use only with #4409 lamp

28

898731

1156 BULB #1156 - Use only with #4409X lamp

29

LAMP NLA - 4409 - Order 6563740 & 898731B

29

6563740

LAMP #4409X

30

6703705

PLATE for 6519592 - brake start - Was 6563431 - A

30

6709028

PLATE for 6665606

31

6599781

KNOB

32

6724282

SWITCH KIT Ref. 5, 23 & 30
