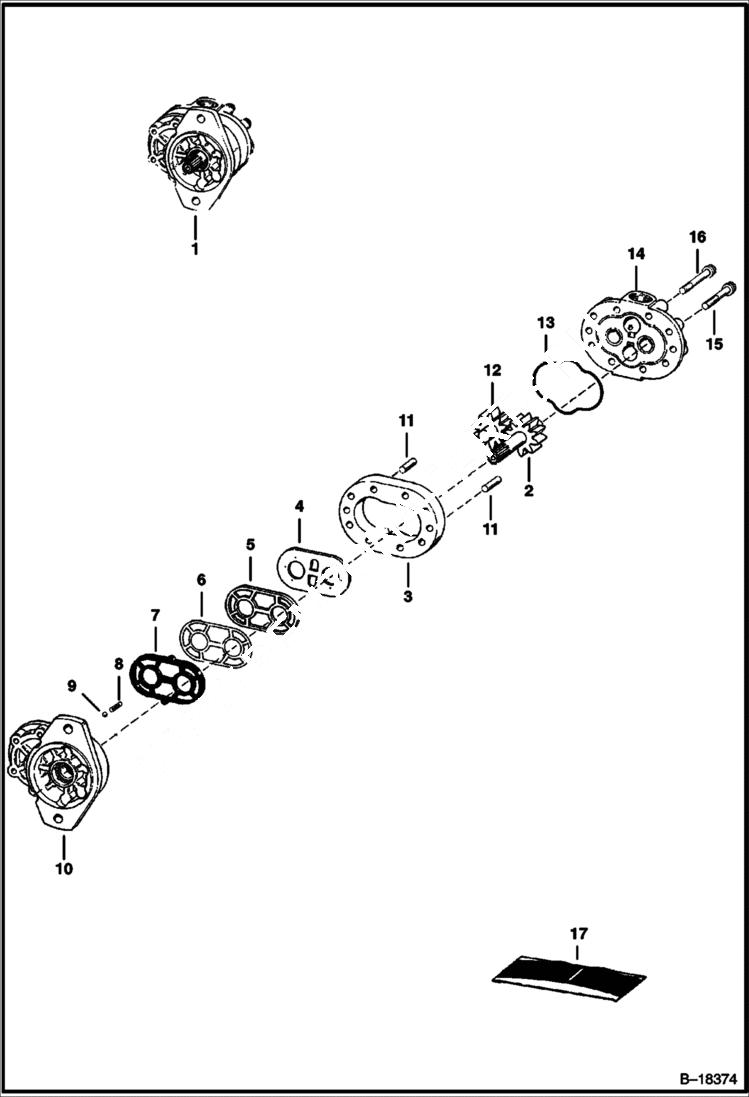

Запчасти Bobcat 800s GEAR PUMP (#24307 RCA) HYDROSTATIC SYSTEM

1

PUMP See BTI211 NLA - Order 6630239

2

6598423

DRIVE GEAR

3

891346

RING

4

DIAPHRAGM NSS

5

GASKET NSS

6

SEAL NSS

7

SEAL NSS

8

3490588

SPRING

9

10J7

BALL

10

6513974

PLATE front

11

6598424

DOWEL PIN

12

6598422

IDLER GEAR

13

O-RING NSS

14

6513975

PLATE back

15

6632002

BOLT cap

16

6632001

BOLT cap

17

894215

SEAL KIT Ref. 4 - 9, 11 & 13
