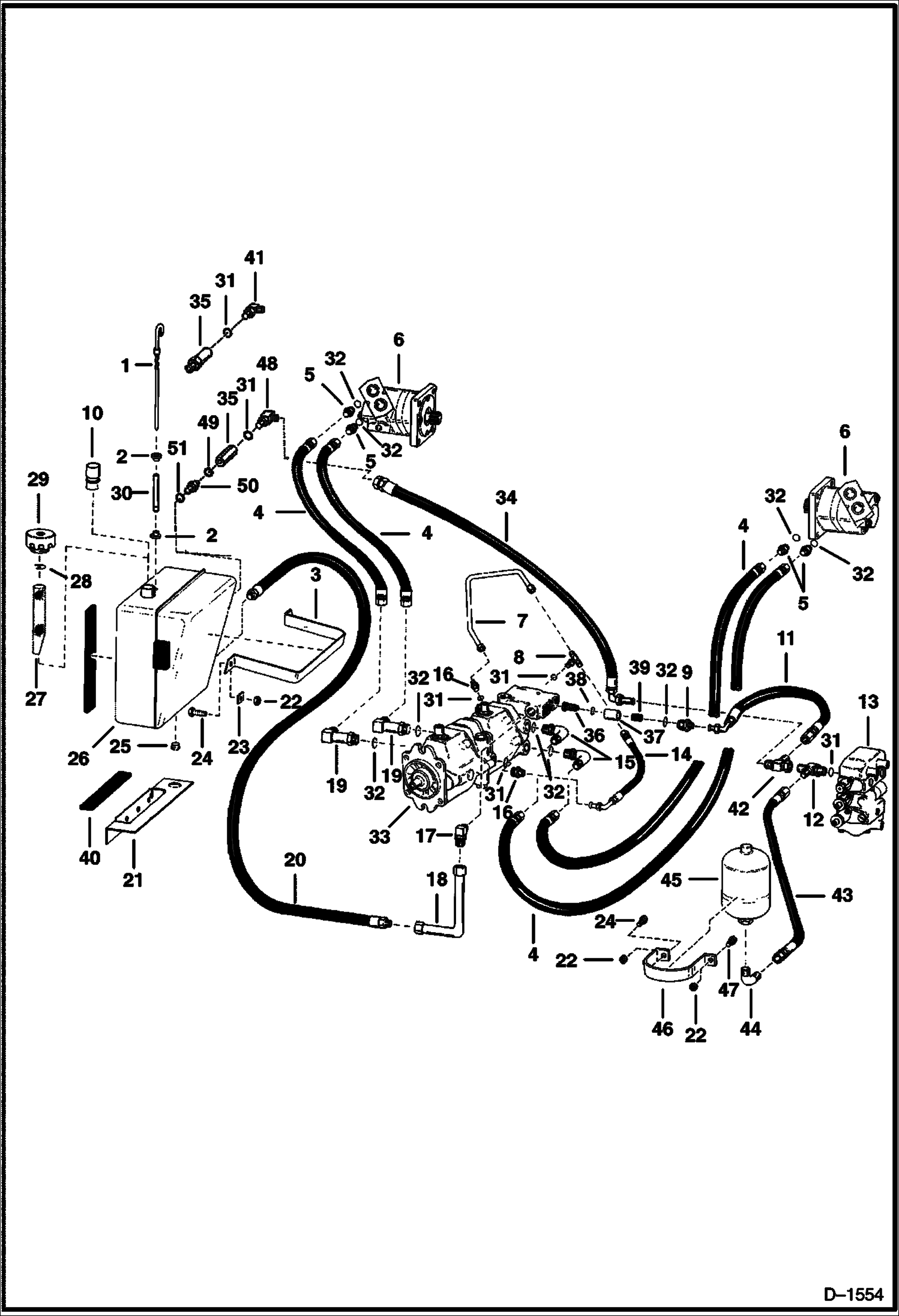

Запчасти Bobcat 800s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

6560575

DIPSTICK

2

6553411

BUSHING

3

6559449

BAND

4

6559159

HOSE

5

15K10

ADAPTOR W/Ref. 32

6

MOTOR See Illustration HYDROSTATIC MOTOR/ D1526

7

6562870

TUBE

8

19K7

TEE W/Ref. 31

9

1303485

CONNECTOR W/Ref. 32

10

TUBE NLA - extension - Was 6563266 - A

11

6562887

HOSE

12

21K7

TEE W/Ref. 31

13

VALVE See Illustration CONTROL VALVE/ E1272

14

6565155

HOSE Was 6564614 - A

15

17K10

FITTING W/Ref. 32

16

15K7

FITTING W/Ref. 31

17

17KB1612

FITTING, HYD ELBOW Was 1300309B - A

18

6559873

TUBE

19

2513089

FITTING W/Ref. 32

20

6560251

HOSE

21

6559451

BRACKET tank

22

61D6

NUT 5

23

6559447

WASHER

24

17C624

BOLT 5

25

16F12

PLUG

26

TANK NLA - Was 6563264 - A

27

6558604

SCREEN

28

713133

SNAP RING

29

CAP NLA - Pack of 12 - Was 1779011B - A

29

6577785

CAP breather - Qty. of 1

30

6560574

TUBE

31

79K10

O RING 10

32

79K16

O RING 10

33

PUMP See Illustration HYDROSTATIC PUMPS/ D1518 HYDRO.

34

6563265

HOSE

35

RELIEF VALVE NLA - Order 6667710 & Ref. 48, 50 & 51 - Was 6562889 - A

35

RELIEF VALVE NLA - Was 6667710 - A

36

6563995

FILTER KIT

37

6562650

TUBE

38

25K40030

O RING 10

39

6562690

SPRING

40

6559448

SEAL bulk - Sold Per Foot - Was 6559445 - A

41

17K7

ELBOW

42

13K7

FITTING

43

595033

HOSE

44

83F7

ELBOW

45

6599590

ACCUMULATOR fluid

46

6564885

BAND

47

17C616

BOLT 5

48

763818

ELBOW

49

79K8

O RING 10

50

15KB0812

FITTING, HYD CONNECTOR W/Ref. 51 - Was 755054B - A

51

79K12

O RING 10
