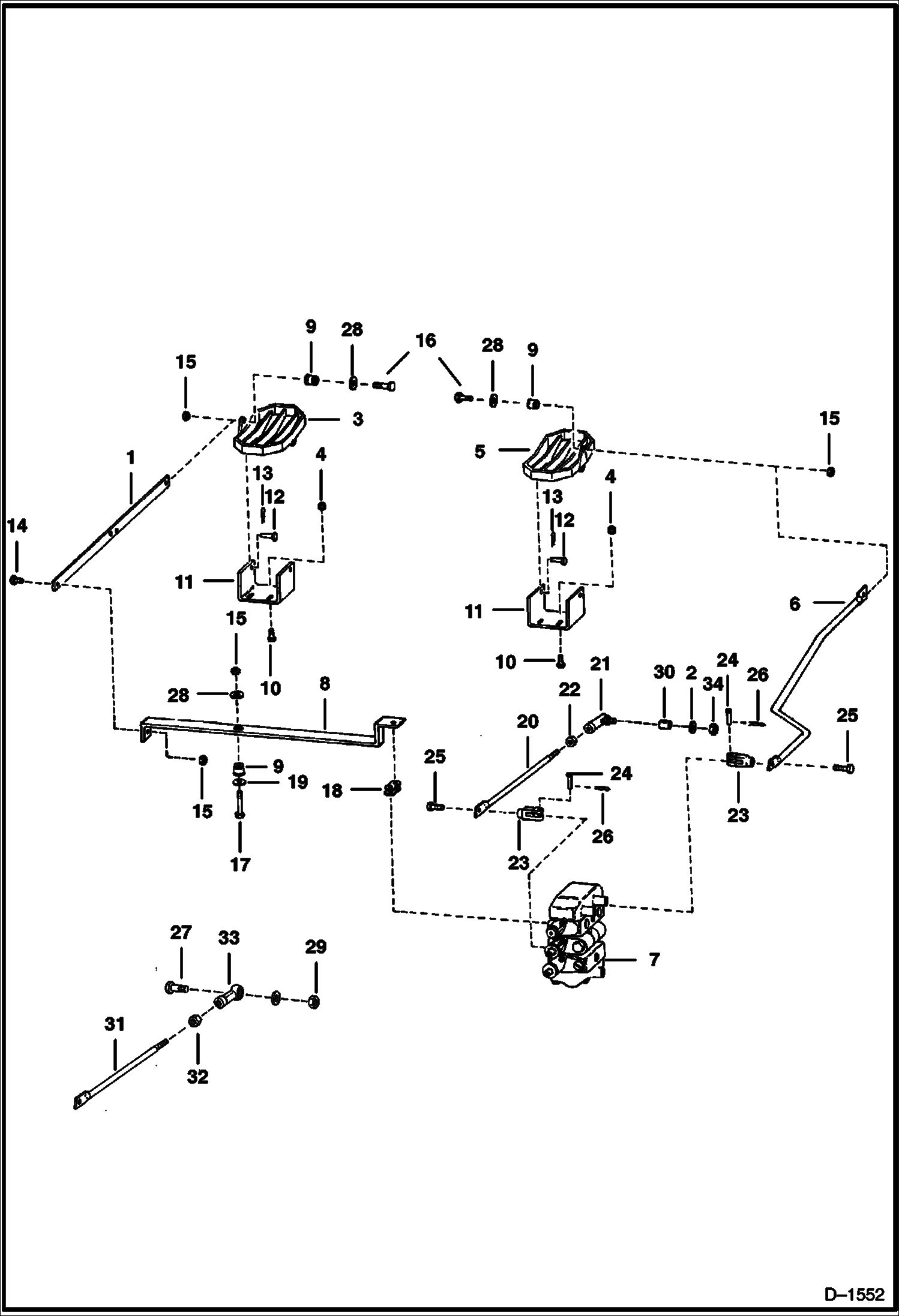

Запчасти Bobcat 800s CONTROL PEDALS HYDRAULIC SYSTEM

1

6563159

LINKAGE

2

6557831

WASHER

3

6558451

PEDAL L.H.

4

57D6

NUT 5

5

6558453

PEDAL R.H.

6

6563158

LINKAGE

7

VALVE See Illustration CONTROL VALVE/ E1272

8

6558911

BAR

9

6665701

BUSHING, PRESS FIT See BTI228 Was 6630081 - A

10

6704349

BOLT Was 6514537 - B

11

6558912

BRACKET

12

1737762

PIN

13

1306637

CLIP

14

17C616

BOLT 5

15

85D6

NUT, 5

16

17C624

BOLT 5

17

1304938

BOLT

18

6515186

CONNECTOR

19

25E17

WASHER 5

20

6564861

ROD auxiliary - R.H. Thread

21

1301362

BALL JNT ball - R.H. Rod - Use W/Ref. 20 - Was 6599953 - A

22

8D6

NUT 5 R.H. Rod - Use W/Ref. 20

23

6560526

CLEVIS

24

6559014

CLEVIS PIN

25

18C616

BOLT 5

26

6513495

COTTER PIN

27

17C620

BOLT

28

6563914

WASHER

29

85D6

NUT, 5

30

6544654

BUSHING

31

6560308

ROD auxiliary - L.H. Thread

32

13D6

NUT hex - Use W/Ref. 31 L.H. Rod

33

6512955

SWIVEL Use W/Ref. 31 L.H. threads

34

86D6

NUT
