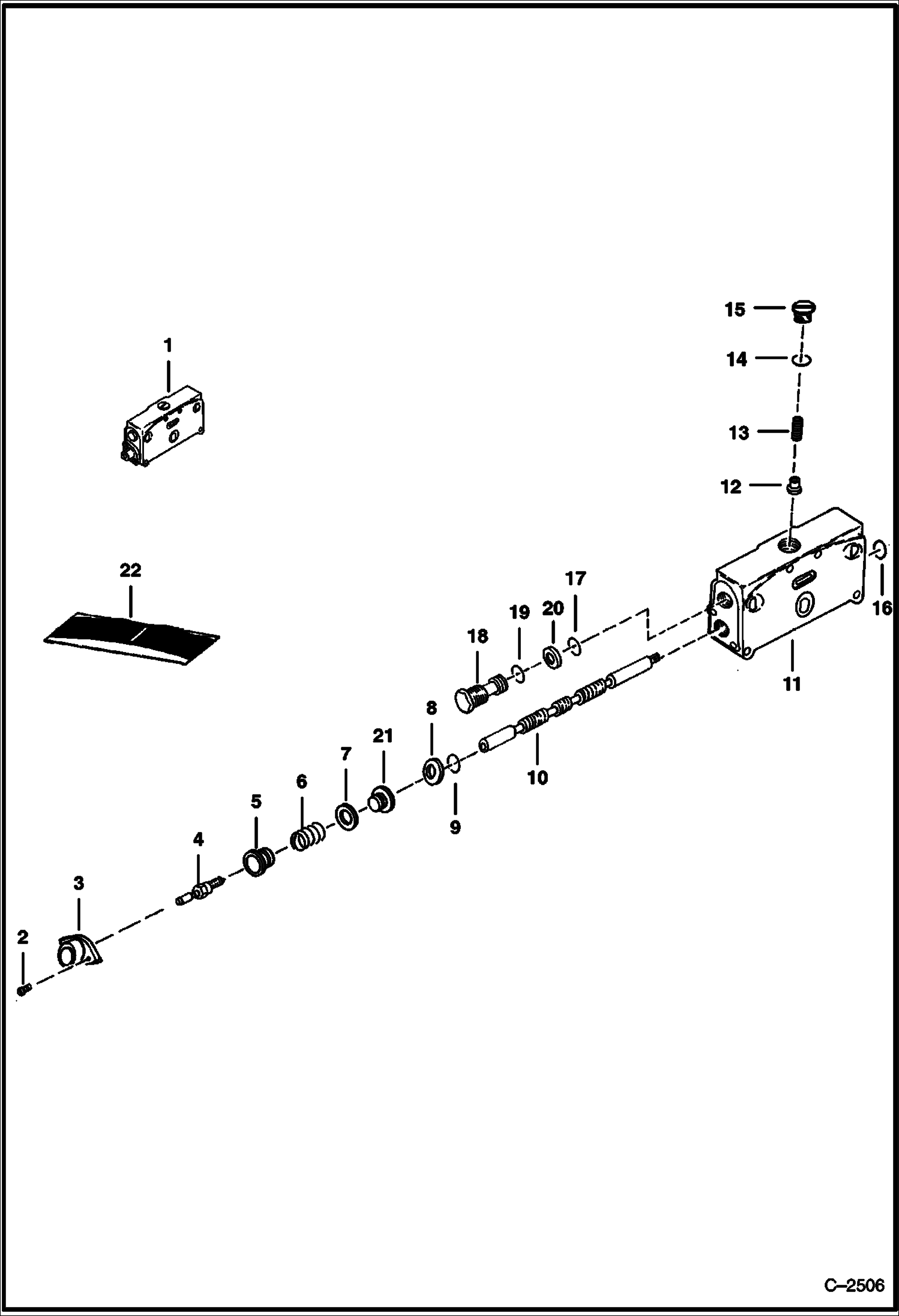

Запчасти Bobcat 800s AUXILIARY SECTION HYDRAULIC SYSTEM

1

SECTION NSS - aux. - Was 6513879 - A

2

6631988

SCREW

3

6513902

CAP detent

4

6513911

SCREW

5

6513910

WASHER centering

6

6513912

SPRING

7

6513913

WASHER centering

8

6513909

WASHER retainer

9

O-RING NSS

10

SPOOL NSS

11

BODY NSS

12

1550481

PLUNGER

13

1550482

SPRING

14

O-RING NSS

15

6513881

PLUG ASSY

16

O-RING NSS

17

O-RING NSS

18

947751

PLUG

19

O-RING NSS

20

WASHER NSS - back-up

21

6513899

WASHER

22

6513930

SEAL KIT Ref. 9, 14, 16 & 19-21
