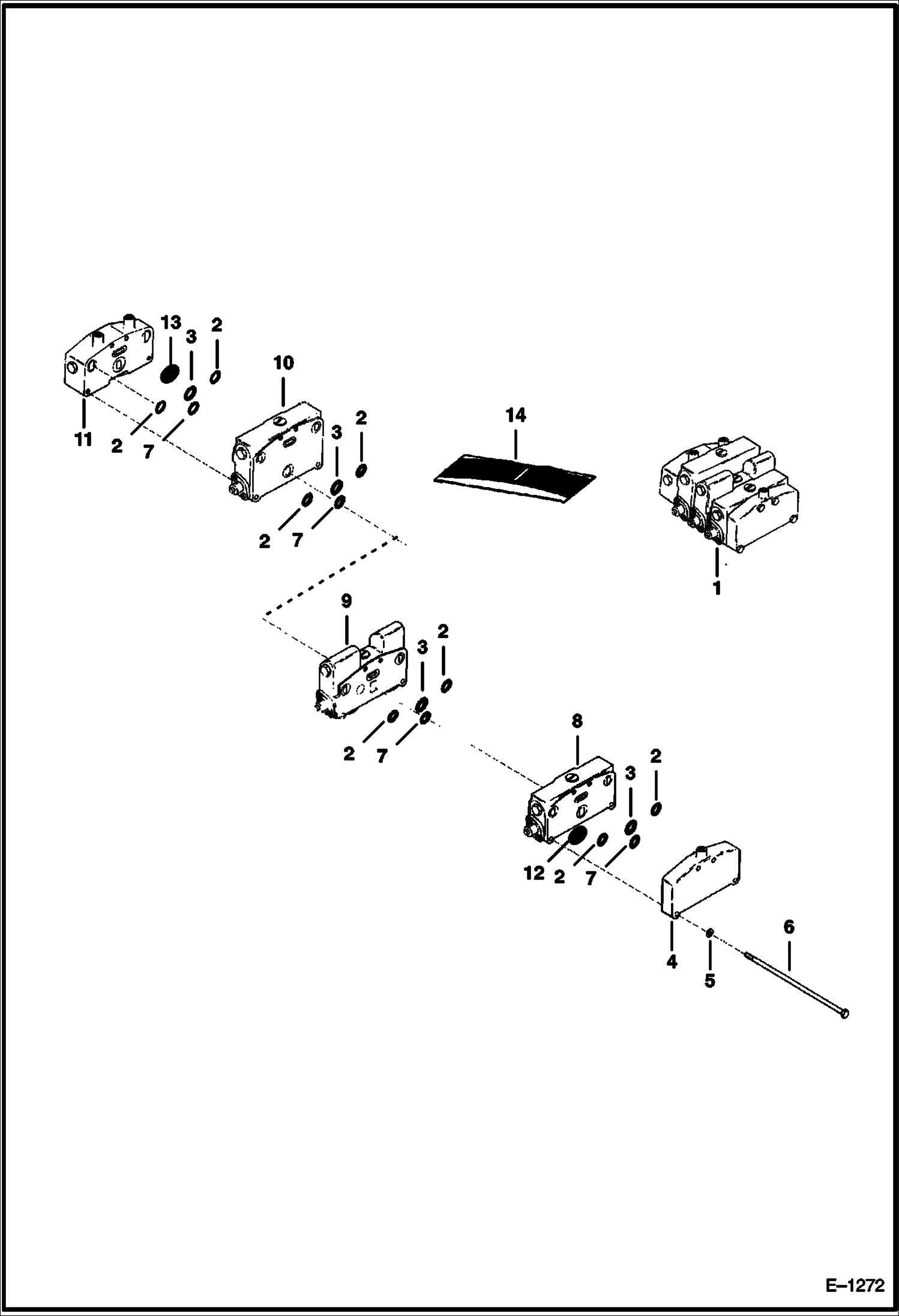

Запчасти Bobcat 800s CONTROL VALVE HYDRAULIC SYSTEM

1

VALVE NLA - control - Was 6562238 - A

2

O-RING NSS

3

O-RING NSS

4

6513851

PLATE end

5

25E6

WSHR

6

6513924

BOLT tie

7

O-RING NSS

8

SECTION See Illustration AUXILIARY SECTION/ C2506 AUX.

9

SECTION See Illustration LIFT SECTION/ C2505 LIFT

10

SECTION See Illustration TILT SECTION/ C2508 TILT

11

SECTION See Illustration INLET SECTION/ B3468 INLET

12

O-RING NSS

13

O-RING NSS

14

6513932

SEAL KIT Major

14

6513928

SEAL KIT between sections - Ref. 2, 3, 7, 12 & 13
