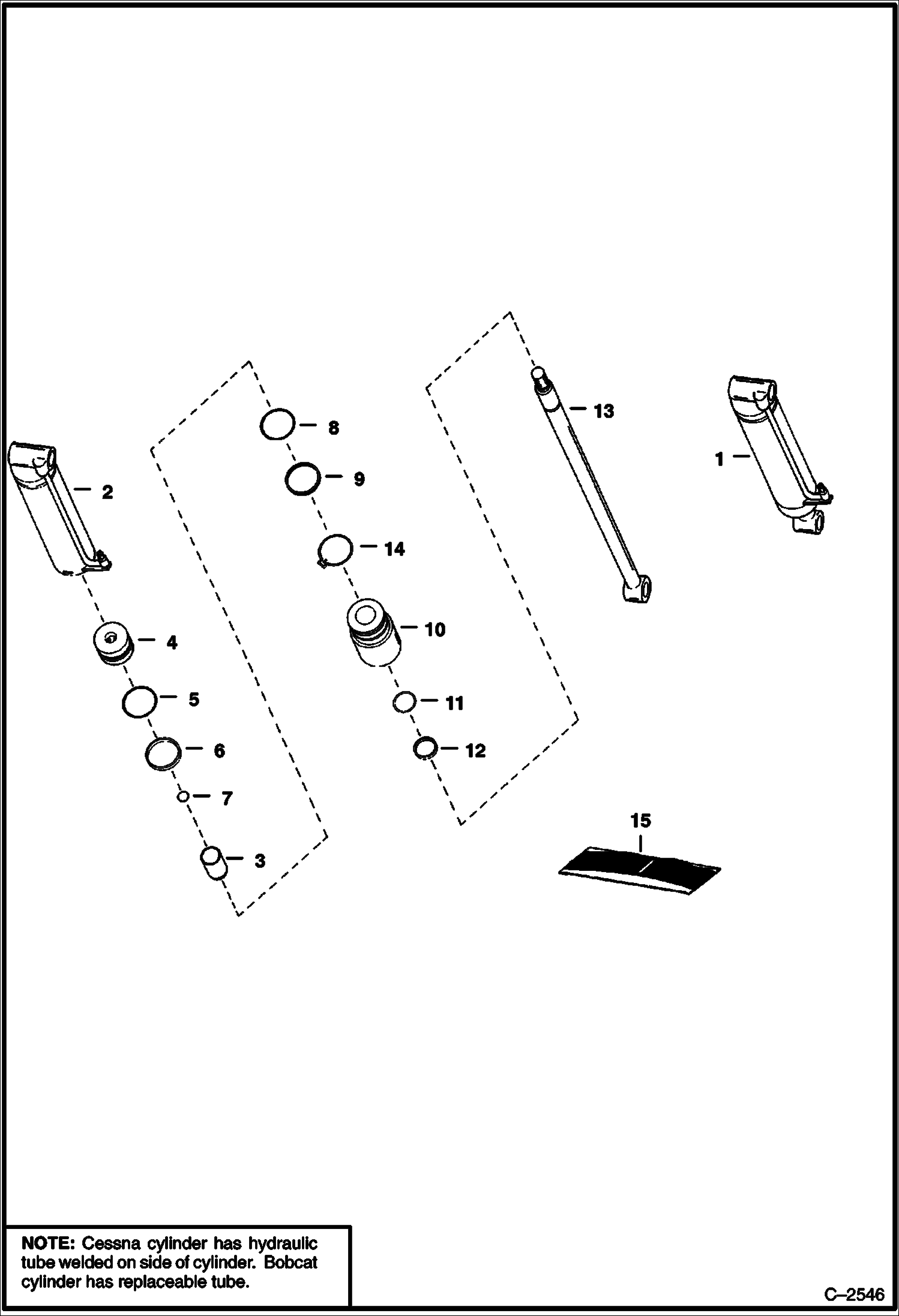

Запчасти Bobcat 800s TILT CYLINDER (W/Non-Replaceable Tube)(Cessna) HYDRAULIC SYSTEM

1

CYLINDER See Illustration TILT CYLINDER/ B18257 NLA - ORDER 6539808 CYL.

2

6514870

CASE

3

6514872

SLEEVE

4

PISTON NLA - Order 6539808 - Was 6598841 - A

5

SEAL NSS

6

O-RING NSS

7

O-RING NSS

8

O-RING NSS

9

WASHER NSS - back-up

10

6514869

HEAD

11

SEAL NSS - rod

12

SEAL NSS - wiper

13

ROD See Illustration TILT CYLINDER/ B18257 NLA - ORDER 6539808 CYL. WAS 6514871 - A

14

RING NLA - lock - Was 6514873 - A

15

6598860

SEAL KIT Ref. 5-9, 11 & 12
