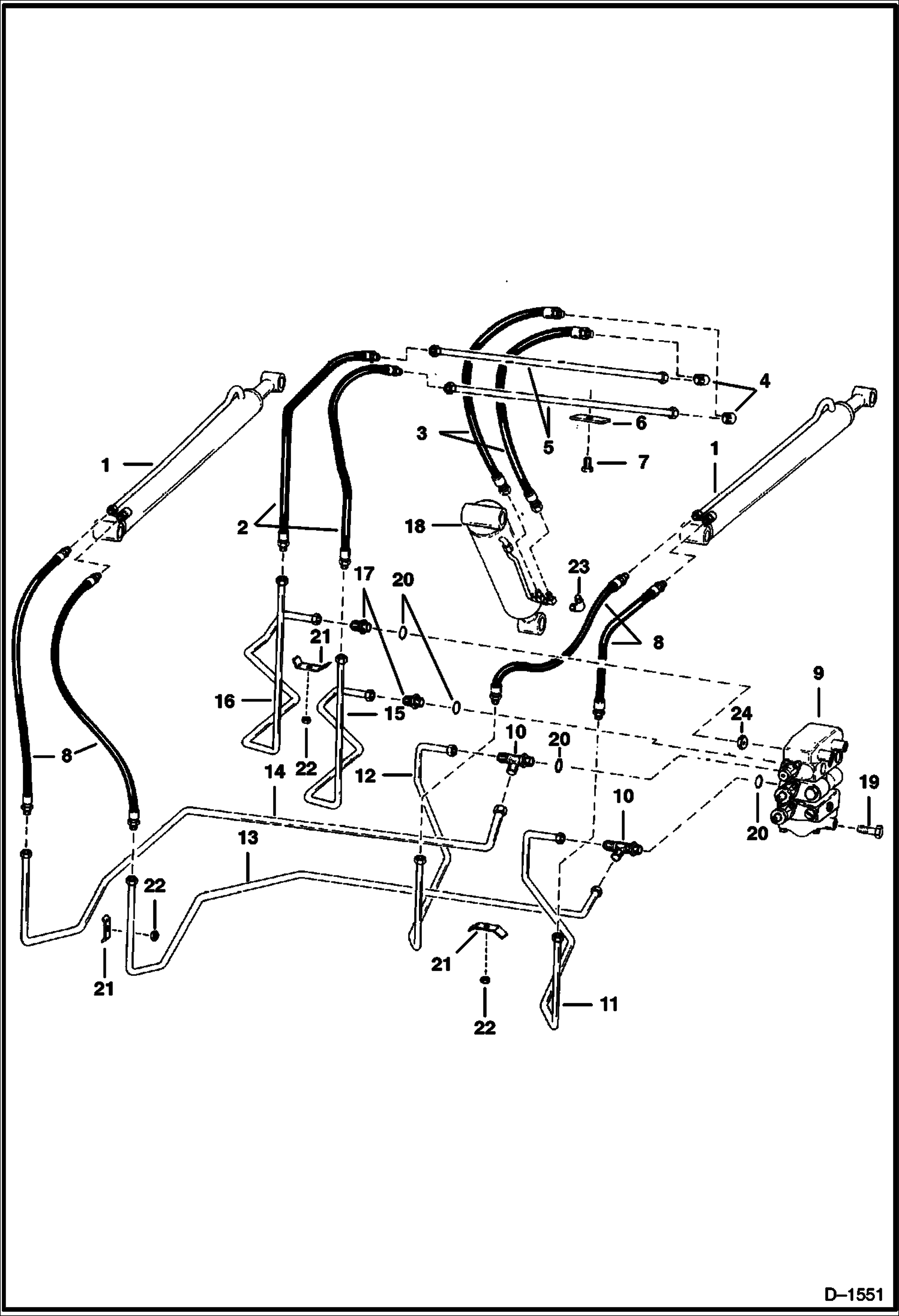

Запчасти Bobcat 800s HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

1

CYLINDER See Illustration LIFT CYLINDER/ B18249 LIFT

2

6560402

HOSE

3

659892

HOSE ASSY

4

77F7

ELBOW

5

6559442

TUBE

6

6559459

WASHER

7

84G3724

BOLT

8

6543063

HOSE

9

VALVE See Illustration CONTROL VALVE/ E1272

10

21K7

TEE W/REF. 20

11

6563427

TUBE

12

6563426

TUBE

13

6563424

TUBE

14

6563425

TUBE

15

6563858

TUBE

16

TUBE NLA - Was 6563857 - A

17

15K7

FITTING W/Ref. 20

18

CYLINDER See Illustration TILT CYLINDER/ C2546 TILT

19

17C816

BOLT

20

79K10

O RING 10

21

6502203

CLAMP

22

85D6

NUT, 5

23

6519195

ELBOW

24

6599479

ORIFICE Size .0995 (2,527 mm)

24

ORIFICE NLA - Size .1360 (3,4544 mm) - Was 6599592 - A
