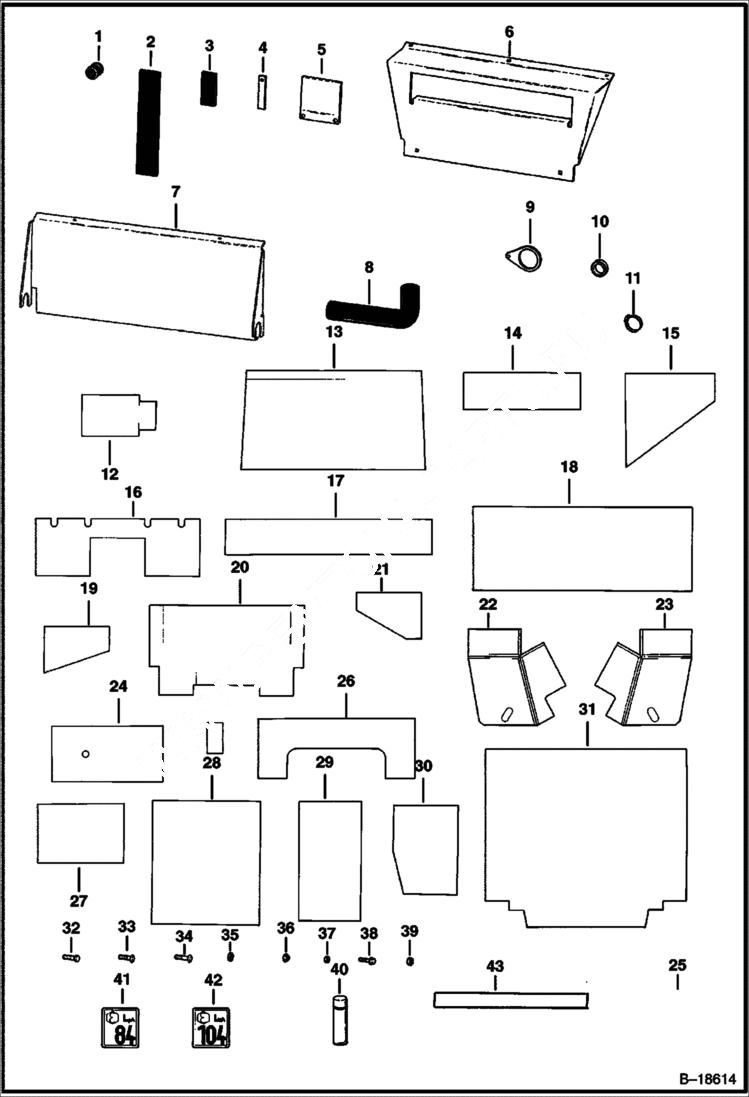

Запчасти Bobcat 800s SOUND OPTION ACCESSORIES & OPTIONS

1

6512067

GROMMET

2

6565139

COVER cylinder

3

6565141

COVER tie down slot - Rubber

4

6567664

COVER tie down slot - Metal

5

6568620

COVER

6

6579562

SHIELD tailgate

7

6579563

SHIELD radiator

8

6579716

HOSE air cleaner inlet

9

6579727

BRACKET air inlet hose

10

6579853

CHOKE air inlet

11

42HL300

CLAMP air inlet hose - Was 6598799 - A

12

6576283

INSULATOR floor

13

6577264

INSULATION tailgate - Lower

14

6579415

INSULATOR fender

15

6579416

INSULATOR motor cover

16

6579417

INSULATOR step

17

6579420

INSULATION tailgate - Upper

18

6579421

INSULATOR radiator shield

19

6579423

INSULATION

20

6579424

INSULATOR

21

6579451

INSULATOR fender

22

6579487

INSULATION air inlet

23

6579488

INSULATION air inlet

24

6579490

INSULATOR transmission

25

6579694

INSULATION steering lever

26

6579748

INSULATOR crossmember

27

6579749

INSULATION cab

28

INSULATOR NLA - clean-out - Was 6579940 - A

29

6579941

INSULATOR hydraulic tank

30

6579942

INSULATOR fender

31

6579943

INSULATOR blower housing

32

17C628

BOLT Use W/Ref. 9

33

7C620

BOLT Use W/Ref. 3 & 4

34

10C616

BOLT 10 Use W/Ref. 6

35

25E17

WASHER 5 Use on Ref. 33

36

57D6

NUT 5 Use on Ref. 32

37

81D6

NUT Use on Ref. 34

38

84G3716

SCREW 5 Use W/Ref. 2

39

85D6

NUT, 5 Use on Ref. 33

40

6632469

ADHESIVE spray can

41

6579384

DECAL sound level warning

42

6579404

DECAL sound level warning

43

6554274

INSULATION foam strip - 11'' (285 mm)
