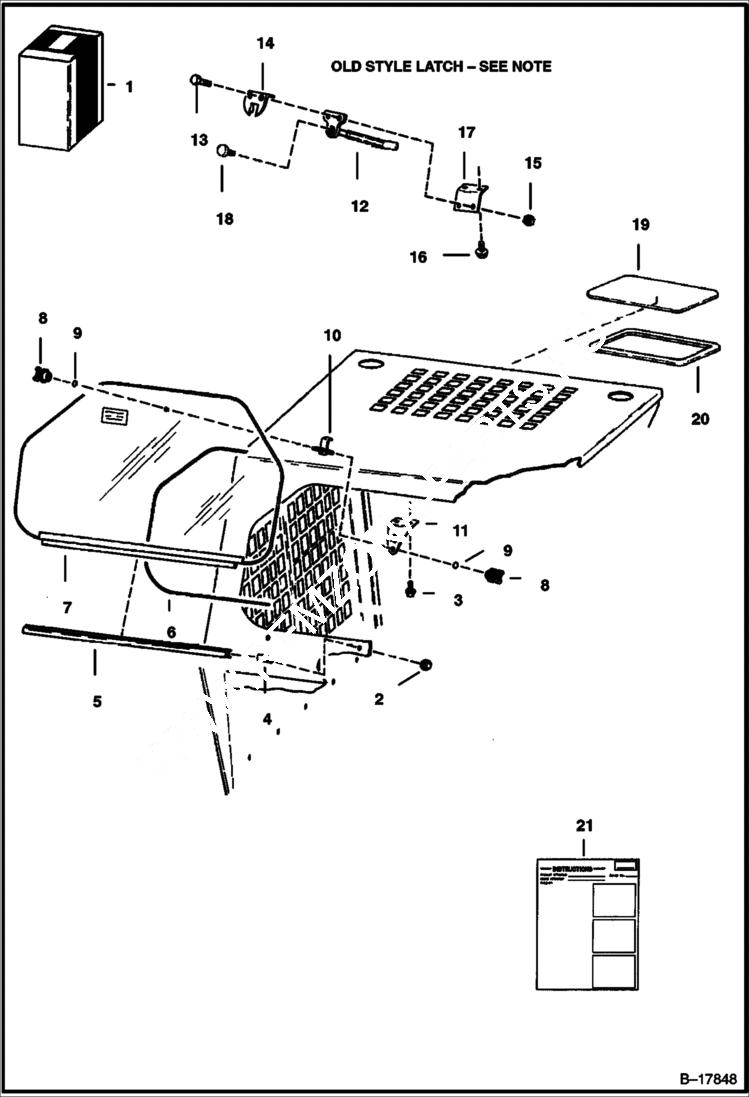

Запчасти Bobcat 800s REAR WINDOWS ACCESSORIES & OPTIONS

1

KIT See Illustration REAR WINDOW KIT/ B17825 - NLA - To completely enclose your cab, Order 6568708 Enclosure Kit, this includes a Door Kit, Shield Kit, Harness, Side, Rear & Top Windows.

2

59D4

NUT 5

3

84G3112

BOLT 5

4

6576513

BOLT

5

6630926

HINGE

6

6555351

SEAL bulk - sold per foot

7

6630925

WINDOW

8

6571529

KNOB

9

58K109

O RING 10

10

6571532

BRACKET

11

6571533

MOUNT

12

LATCH NLA - W/Ref. 18 - Order Ref. 3, 8-11 - Was 6630929 - A

13

85G1014

SCREW

14

CLIP NLA - Order Ref. 3, 8-11 - WAS 6630928 - A

15

50D10

LOCKNUT

16

84G3112

BOLT 5

17

6568540

MOUNT

18

KNOB NLA - Was 6631665 - A

19

6701986

WINDOW top - 10'' x 17'' (254mm x 431,8mm)glued on for 9'' x 15.5'' (228,6mm x 393,7mm) opening in cab

19

6705735

WINDOW Top - 8'' X 15'' (203,2mm x 381mm) - Use W/Ref. 20 for 8.6'' x 15.5'' (218,4mm x 393,7mm) opening in cab

20

6664351

SEAL Use W/cab headliner

20

6665012

SEAL

21

6566955

INSTRUCTIONS Rear Window
