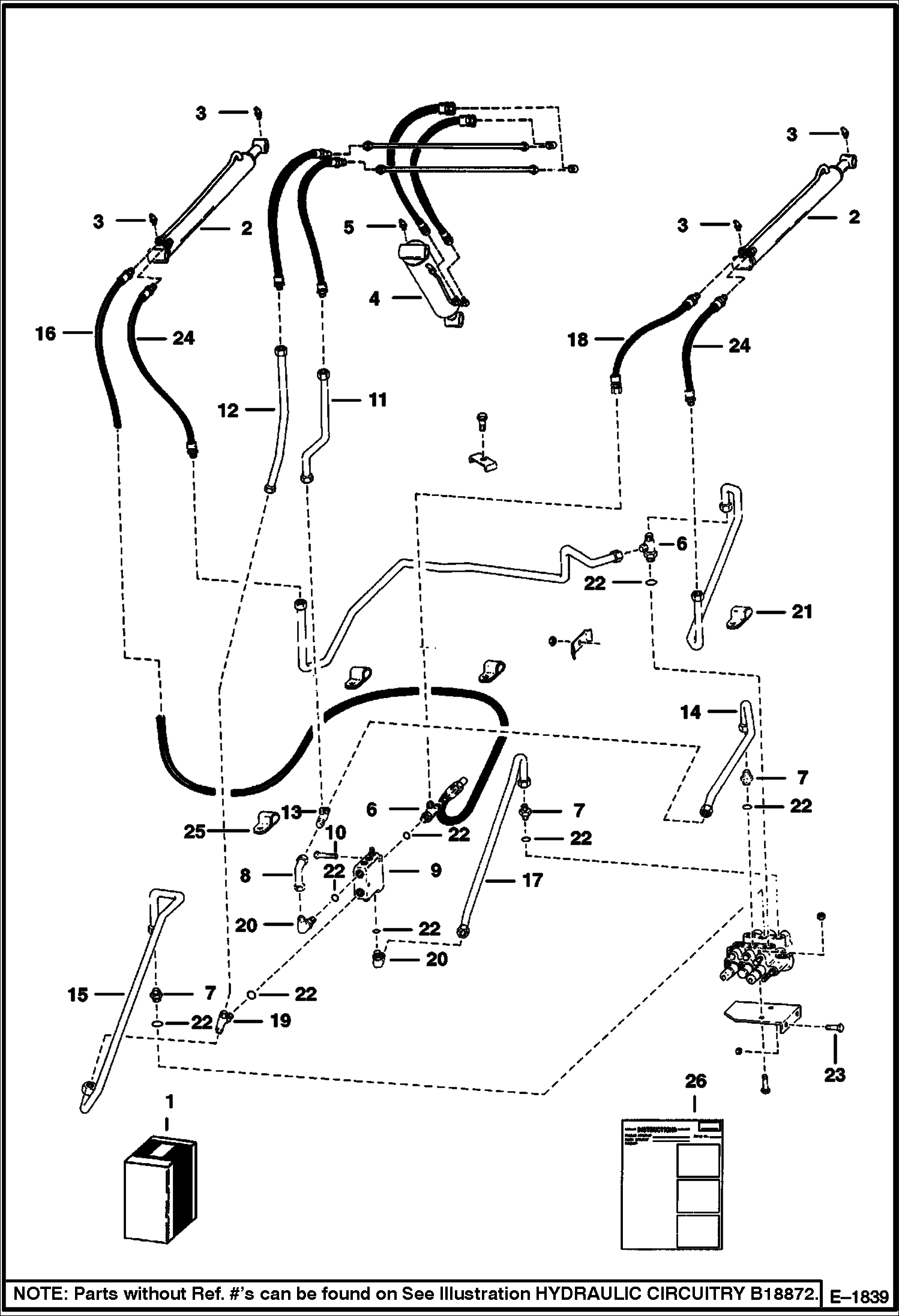

Запчасти Bobcat 800s BUCKET POSITIONING ACCESSORIES & OPTIONS

1

6702665

KIT BPV equipped w/solenoid - See Installation Instruction 6720321 for other parts required for on/off function - Was SALES - A

2

CYLINDER See Illustration LIFT CYLINDER/ B18253 - lift

3

11H25

FITTING10

4

CYLINDER See Illustration TILT CYLINDER/ B18257 - tilt

5

10H25

FITTING, GREASE 5

6

21K7

TEE W/Ref. 22

7

15K7

FITTING W/Ref. 22

8

6569420

TUBE

9

VALVE See Illustration BUCKET POSITIONING VALVE/ C3062 - NLA - Order 6673959 valve - if loader is not equipped with an on/off switch, Also Order 6647784 plug, 79K8 O-ring, 6647785 spring & 6647783 loa

10

17C540

BOLT

11

6569419

TUBE

12

6569418

TUBE

13

10K7

TEE

14

6569414

TUBE

15

6569413

TUBE

16

6569411

TUBE factory installed

16

6702821

HOSE field installed

17

6569416

TUBE

18

6577040

HOSE

19

19K7

TEE W/Ref. 22

20

17K7

ELBOW W/Ref. 22

21

6H16

CLSD CLIP

22

79K10

O RING 10

23

17C616

BOLT 5

24

6543063

HOSE

25

30H46

CLIP

26

6720545

INSTRUCTIONS
