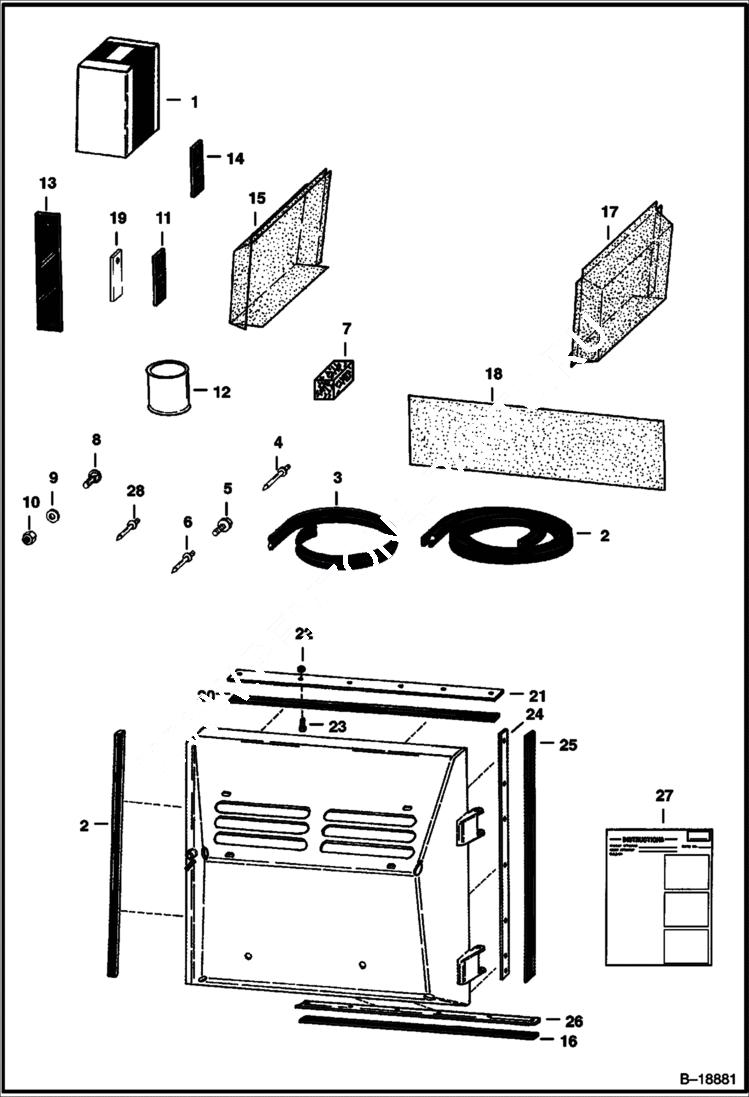

Запчасти Bobcat 800s AIR SEAL/SCREEN KIT ACCESSORIES & OPTIONS

1

6568768

KIT air seal/screen - Ref. 2-27

2

SEAL NLA - rear door - bulk - sold per foot - Was 6632217 - A

3

6513152

SEAL air duct - Bulk - Sold Per Foot - Order 4' (121,9 cm)

4

6591035

RIVET pop - For Rear Door and Grease Access

5

84G3716

SCREW 5 thread forming

6

6515213

RIVET pop - For Cab Screen

7

6565138

BLOCK foam - For Lift Cylinder

8

7C620

BOLT

9

25E17

WASHER 5

10

85D6

NUT, 5

11

6565141

COVER rubber - For Slots

12

6633583

SEALANT, POLYURETHANE 300 ML Was 6555349 - A

13

6565139

COVER rubber - For Lift Cylinder

14

6565137

COVER rubber - For Grease Access

15

6569404

SCREEN formed - RH

16

6569938

RETAINER

17

6569405

SCREEN formed - LH

18

6565142

SCREEN rear door

19

6567664

COVER

20

6567303

RETAINER

21

6567304

SEAL

22

85D5

NUT 5

23

17C516

BOLT

24

6569876

SEAL

25

6569877

STRIP

26

6569937

SEAL

27

INSTRUCTIONS NLA - Print Instructions from BASS - Was 6566965 - A

28

6598681

RIVET For Grease Access
