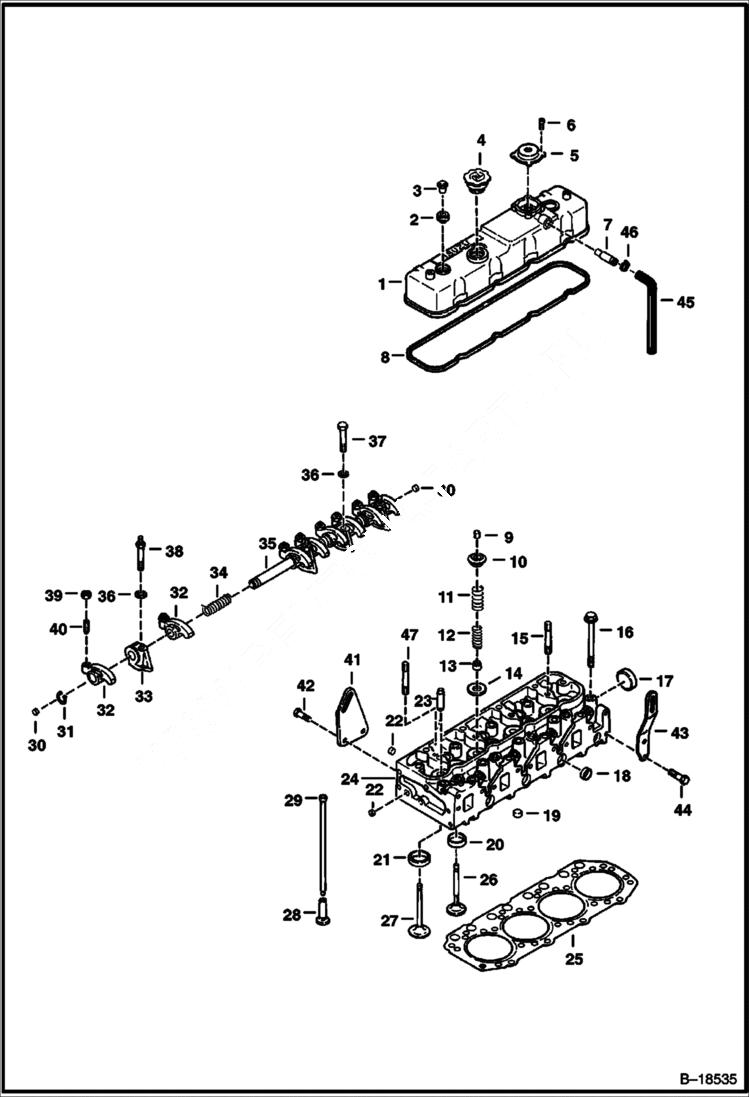

Запчасти Bobcat 800s CYLINDER HEAD & COVER POWER UNIT

1

6664552

COVER Was 6659923 - A

2

6667413

GASKET Was 6631827 - A

3

6631832

NUT

4

6631851

CAP push in

4

6660923

CAP screw in

5

6631862

BREATHER VALVE breather

6

6631883

SCREW

7

6631864

BREATHER PIPE breather

8

6631877

GASKET

9

6513139

RETAINER

10

6631785

SEAT

11

6631865

SPRING outer

12

6631866

SPRING inner

13

6631753

SEAL

14

3676843

SEAT

15

6631885

STUD Was 6631843 - A

16

6631852

BOLT

17

6631730

CUP sealing - 44,6 mm

18

6631731

CUP sealing - 22 mm

19

6670643

CUP sealing - 16 mm - Was 6512964 - A

20

6631778

INSERT valve seat - Exhaust

21

6631777

INSERT valve seat - Intake

22

6631738

CUP sealing - 12 mm

23

6631747

VALVE GUIDE valve

24

6655860

HEAD cylinder - W/Ref. 17-23

25

6655861

GASKET cylinder head - Was 6631756 - A

26

6631855

VALVE exhaust

27

6631781

VALVE intake

28

6631784

TAPPET

29

6631812

ROD

30

6512759

PLUG

31

6512760

SNAP RING

32

6631819

ROCKER ARM rocker

33

6631820

BRACKET

34

6658195

SPRING Was 6631755 - A

35

6631821

SHAFT

36

6631923

WASHER

37

BOLT NLA - Was 2CM01060B - A

38

6658196

BOLT Was 6631794 - A

39

6512755

NUT

40

6631817

SCREW adjusting

41

6631782

HANGER

42

6661091

BOLT Was 3676970B - A

42

6631880

BOLT

43

6631844

HANGER

44

909496

BOLT

45

6578172

HOSE 4' (121,9 cm) - bulk - Sold Per Foot - Was 743564B - A

46

42H10

HOSECLAM5

47

6631884

STUD
