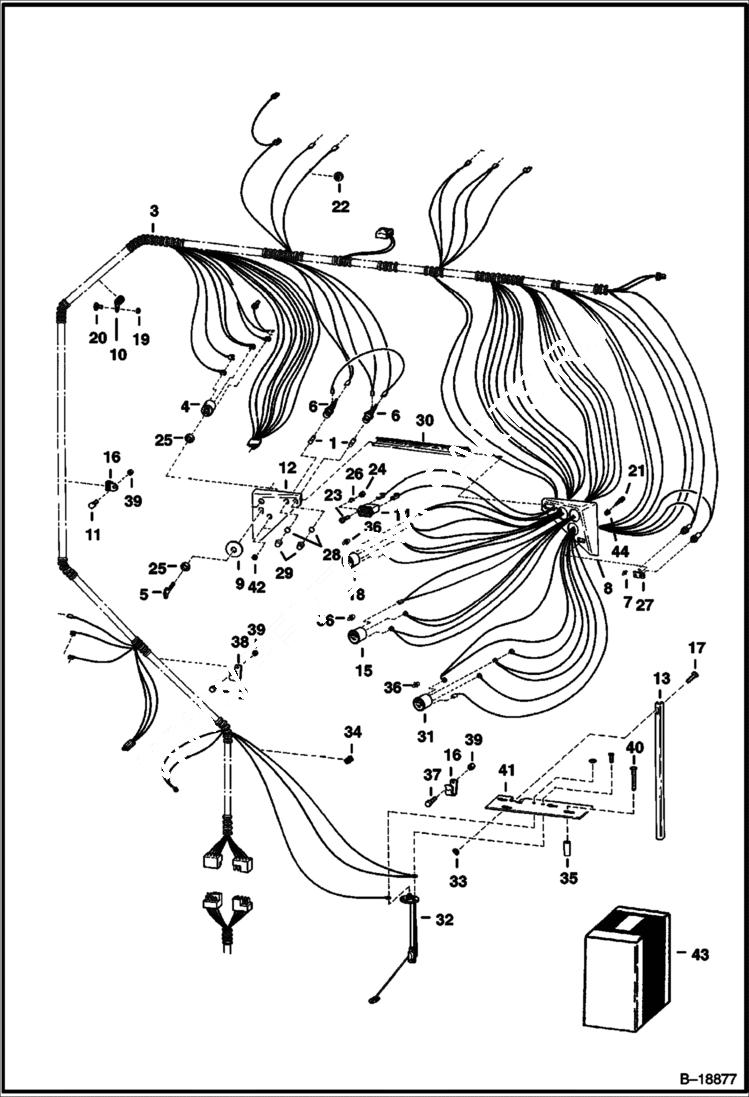

Запчасти Bobcat 800s CAB ELECTRICAL SYSTEM ELECTRICAL SYSTEM

1

1319451

FUSE 5

2

84G3712

BOLT 5

3

6572060

HARNESS

4

SWITCH See BTI289 NLA - Ref. 5 & 25 - Order Ref. 43 - Was 6519592 - A

4

6665606

SWITCH Ref. 5 & 25

5

6512809

KEY for 6519592

5

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241 - Was 6709527 - A

5

6693241

KEY 10 ignition - single key W/O ring

6

6513469

HOLDER fuse

7

6572065

BULB

8

6572053

PANEL RH

9

6703705

PLATE for 6519592 - Was 6563431 - A

9

6709028

PLATE for 6665606

10

30H55

CLIP Was 30H000054B - B

11

10C512

BOLT WAS 6553808 - A

12

6572054

PANEL LH

13

6567897

HOUSING

14

6664886

HOURMETER Was 6631657 - A

15

VOLTMETER NLA - W/clamp - Order 6669664 voltmeter & 6679027 clamp - Was 6658819 - A

15

6669664

VOLTMETER W/O clamp

16

30H45

CLIP Was 30H000041B - B

17

85G1008

SCREW

18

FUEL GUAGE NLA - W/clamp - Order 6669665 gauge & 6679027 clamp - Was 6658820 - A

18

6669665

FUEL GUAGE W/O clamp

19

83D4

NUT 10

20

25G412

CAPSCRW10

21

6702642

SCREW Was 84G003112B - B

22

6557493

GROMMET

23

65G608

SCREW

24

12D6

NUT 10

25

6598721

NUT for 6519592

25

6674202

NUT for 6665606

26

12E6

WASHER

27

6572056

LENS

28

6514643

GASKET

29

6514642

CAP

30

6578780

CROSSMEMBER Was 6572066 - A

31

6631649

GAUGE See BTI259 engine temp.

31

GAUGE See BTI259 NLA - eng temp - W/clamp - Order 6669663 gauge & 6679027 clamp - Was 6658817 - A

31

6669663

GAUGE See BTI259 eng temp - W/O clamp

32

SENDER See Illustration FUEL SYSTEM/ E1692 - fuel

33

12D10

NUT

34

6632215

GROMMET

35

6567898

SPACER

36

6599696

SOCKET & BULB assy.

36

895771

#161 BULB

37

17C512

BOLT 5

38

31H38

CLAMP

39

85D5

NUT 5

40

89G544

SCREW

41

6567896

SHIELD

42

6707674

PLUG

43

6724282

SWITCH KIT Ref. 4, 5 & 9

44

83D5

NUT 5
