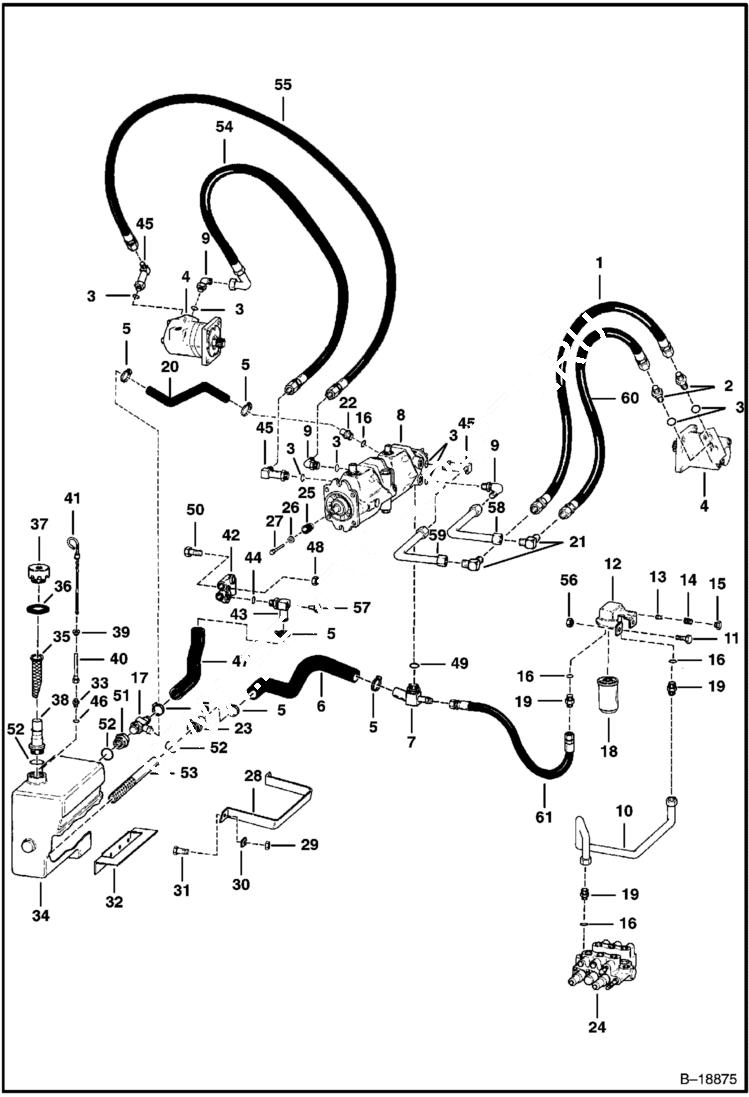

Запчасти Bobcat 800s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

6658098

HOSE Was 6559159 - A

2

15K10

ADAPTOR W/Ref. 3

3

79K16

O RING 10

4

MOTOR See Illustration HYDROSTATIC MOTOR/ D1526

5

42H32

HS CLAMP5

6

6569096

HOSE

7

6565557

TEE

8

PUMP See Illustration HYDROSTATIC PUMP/ D1518

9

17K10

FITTING W/Ref. 3

10

6702575

TUBELINE

11

17C516

BOLT

12

6564877

HEAD filter

13

6515078

POPPET

14

6553897

SPRING

15

6561811

PLUG

16

79K10

O RING 10

17

6700146

TEE

18

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long - A

19

15K7

FITTING W/Ref. 16

20

6700118

HOSE

21

77F10

ELBOW

22

6567885

ADAPTER W/Ref. 16

23

6569100

ADAPTER

24

VALVE See Illustration CONTROL VALVE/ B18874

25

6562878

ADAPTER

26

616783

WASHER

27

18C616

BOLT 5

28

6569333

BAND

29

61D6

NUT 5

30

6559447

WASHER

31

17C624

BOLT 5

32

6559451

BRACKET

33

15K5

FITTING

34

6569102

TANK

35

7120881

SCREEN, FILLER Was 6569219 - A

36

6571595

SEAL

37

6727475

CAP, OIL HYD Qty. of 1 - Was 6577785 - A

38

TUBE NLA - Was 6569955 - A

39

6553411

BUSHING

40

6569101

TUBE

41

6560575

DIPSTICK

42

6565619

BLOCK port

43

6576670

ELBOW W/Ref. 44

44

79K12

O RING 10

45

2513089

FITTING W/Ref. 3

46

79K6

O RING 10

47

6576673

HOSE

48

83D6

NUT 5

49

79K20

O RING 10

50

35C648

BOLT

51

6700145

ADAPTER

52

79K24

O RING 10

53

DIFFUSER TUBE NLA - diffuser - Was 6641221 - A

54

6702672

HOSE

55

6631708

HOSE

56

85D5

NUT 5

57

24K3

PLUG

58

6702605

TUBELINE

59

6702647

TUBELINE

60

6658099

HOSE

61

6565992

HOSE
