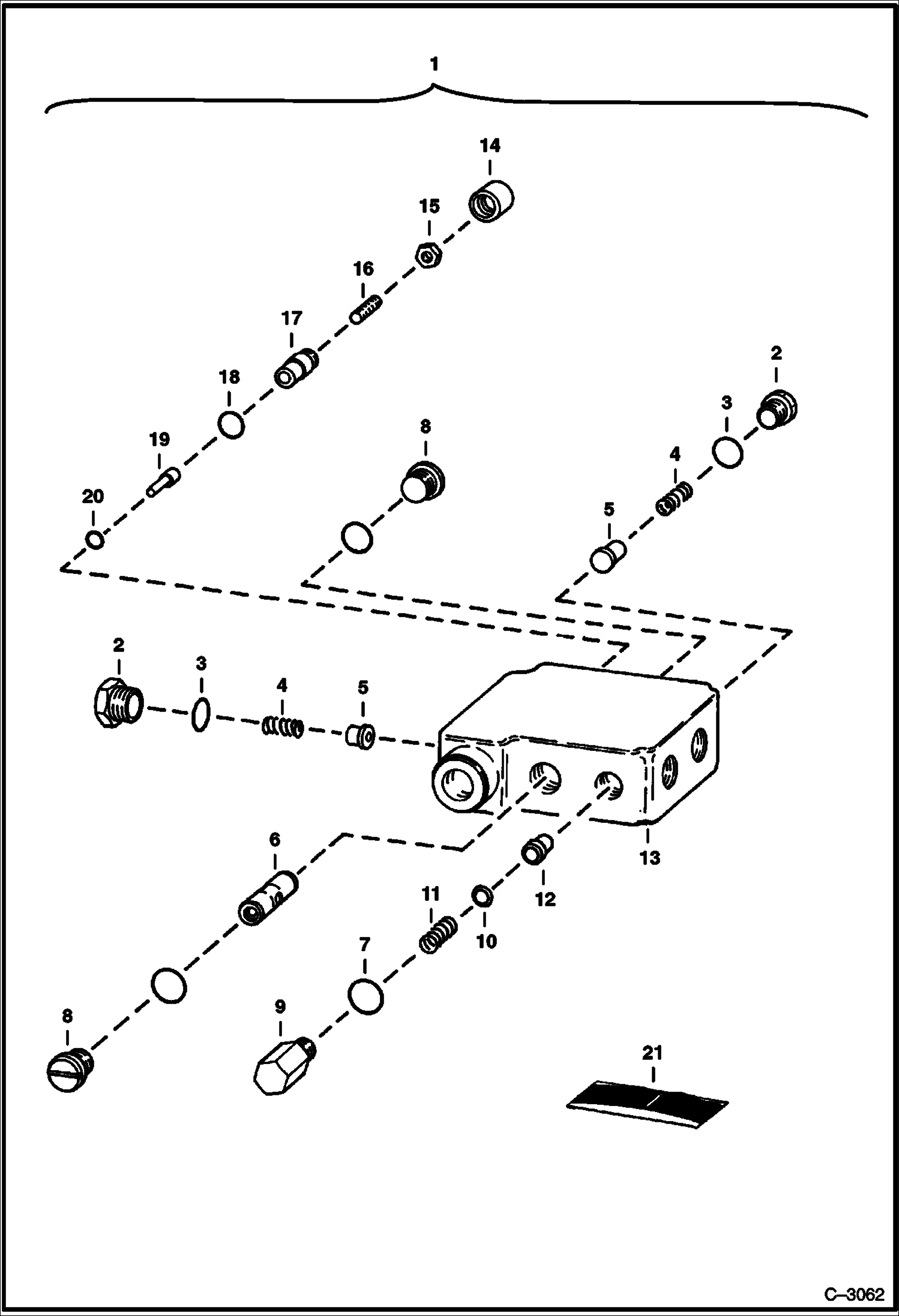

Запчасти Bobcat 800s BUCKET POSITIONING VALVE HYDRAULIC SYSTEM

1

VALVE NLA - Order 6673959 valve - if loader is not equipped with an on/off switch, Also Order 6647784 plug, 79K8 O-ring, 6647785 spring & 6647783 load check - Was 6666341 - A

2

6647784

PLUG W/Ref. 3

3

79K10

O RING 10

4

6647785

SPRING

5

6647783

LOAD CHECK

6

SPOOL NSS

7

79K10

O RING 10 Was 58K116 - B

8

6676543

PLUG Was 6647780 - A

8

79K10

O RING 10

9

6667176

PLUG W/Ref. 7 - Was 6647779 - B,D

10

6667680

SNAP RING

11

6648294

SPRING

12

SPOOL NSS

13

BODY NSS

14

6667676

COVER

15

8D4

NUT Was 6631561 - A

16

6648293

SCREW

17

6647778

CAP

18

6634874

O-RING Was 6667678 - A

19

6647777

PIN

20

6667677

O-RING

21

6647786

SEAL KIT Ref. 3, 7, 14, 18 & 20
