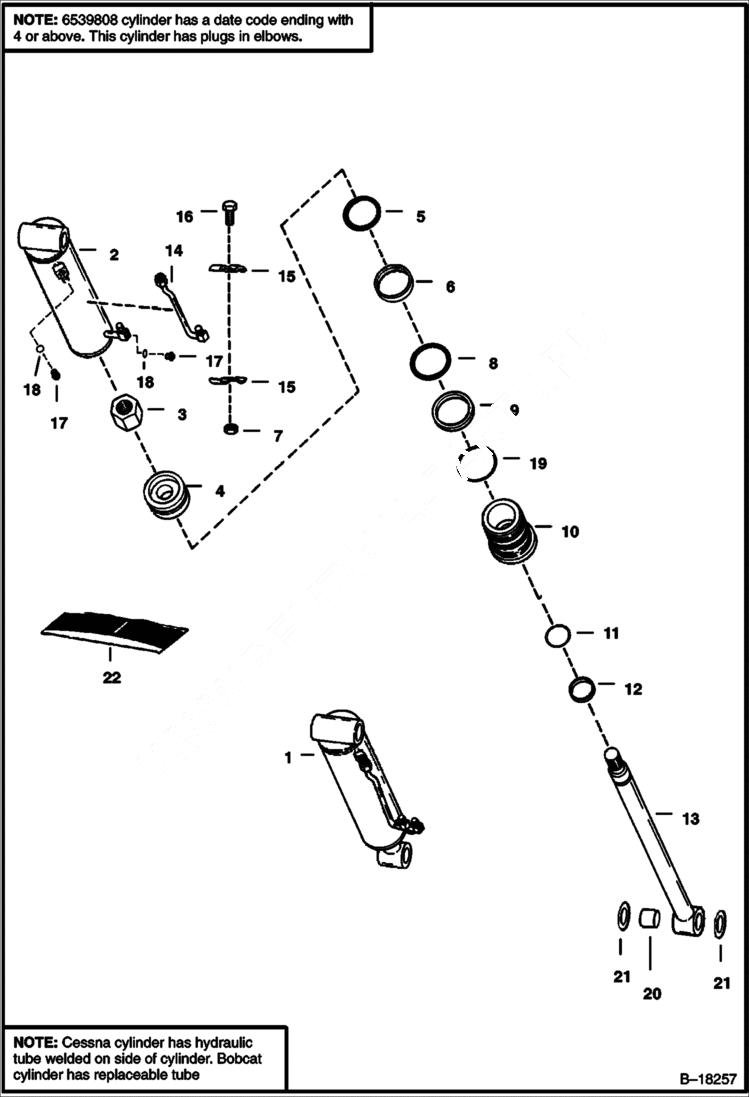

Запчасти Bobcat 800s TILT CYLINDER HYDRAULIC SYSTEM

1

6539808

CYLINDER, TILT tilt - Ref. 2-18 & 20 - Was 6592584 - A

2

6592593

CASE

3

6810539

NUT Was 6804592 - A

4

6539290

PISTON, CYL TILT Was 6592589 - A

5

SEAL NSS

6

O-RING NSS

7

85D6

NUT, 5

8

O-RING NSS

9

WASHER NSS - back-up

10

6529680

HEAD Was 6592590 - A

11

SEAL NSS

12

SEAL NSS - wiper

13

6539814

SHAFT, ROD CYL TILT Also order (2) Ref. 21 & (1) Ref. 20 - Was 6592591 - A

14

6592585

TUBE

15

6591804

CLAMP

16

17C616

BOLT 5

17

PLUG NLA - W/Ref. 18 - flat boss face - Was 47K000005B - A

17

90KV5

PLUG W/Ref. 18 - tapered boss face

18

79K6

O RING 10 flat boss face

18

95K6

O'RING tapered boss face

19

82K236

O-RING Was 58K000236B - A

20

6589665

BUSHING Was 6534387 - A

21

6654117

SEAL, OIL 51 mm (2'') OD

21

225855

SEAL, OIL 10 38 mm (1.5'') OD

22

7135551

KIT, SEAL Ref. 5, 6, 8, 9, 11, 12 & 20 - Was 6804605 - A
