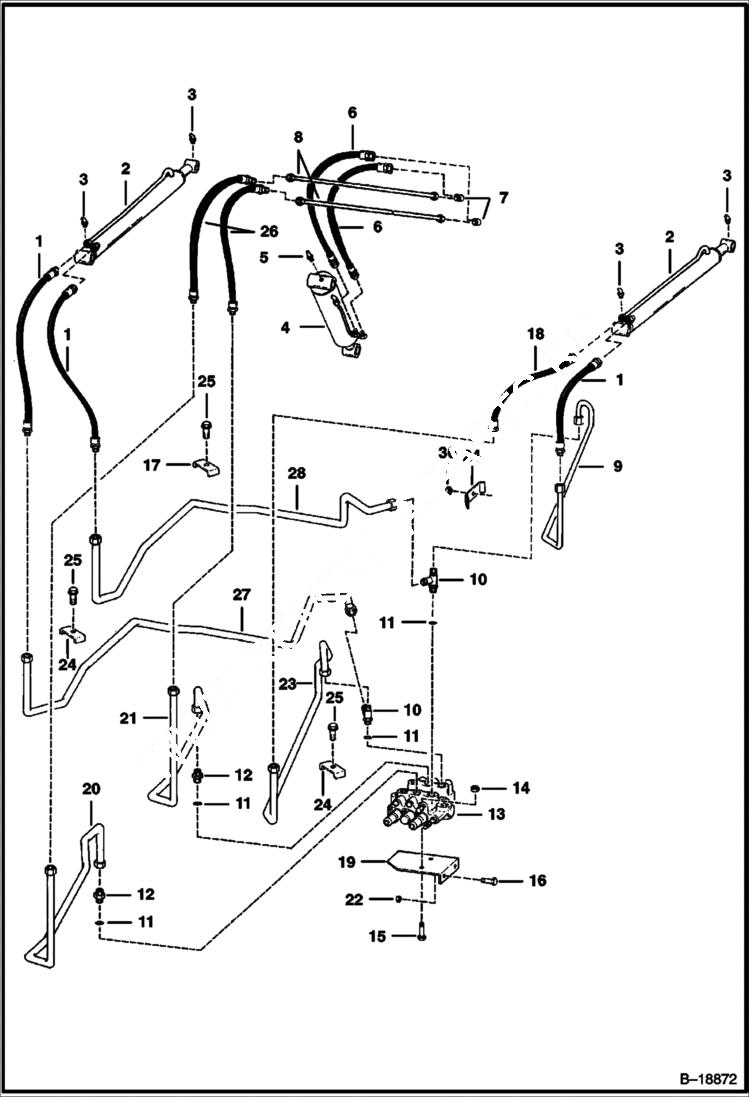

Запчасти Bobcat 800s HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

1

6543063

HOSE

2

CYLINDER See Illustration LIFT CYLINDER/ B18253 - lift

3

11H25

FITTING10

4

CYLINDER See Illustration TILT CYLINDER/ B18257 - tilt

5

10H25

FITTING, GREASE 5

6

659892

HOSE ASSY

7

77F7

ELBOW

8

6559442

TUBE

9

6569415

TUBE

10

21K7

TEE W/Ref. 11

11

79K10

O RING 10

12

15K7

FITTING W/Ref. 11

13

VALVE See Illustration CONTROL VALVE/ B18874

14

85D5

NUT 5

15

17C560

BOLT

16

17C616

BOLT 5

17

6591804

CLAMP

18

6577040

HOSE

19

6565558

MOUNT valve

20

6702579

TUBE

21

6702578

TUBE

22

85D6

NUT, 5

23

6702581

TUBE

24

6502203

CLAMP

25

84G3724

BOLT

26

6560402

HOSE

27

6702580

TUBE

28

6578852

TUBE
