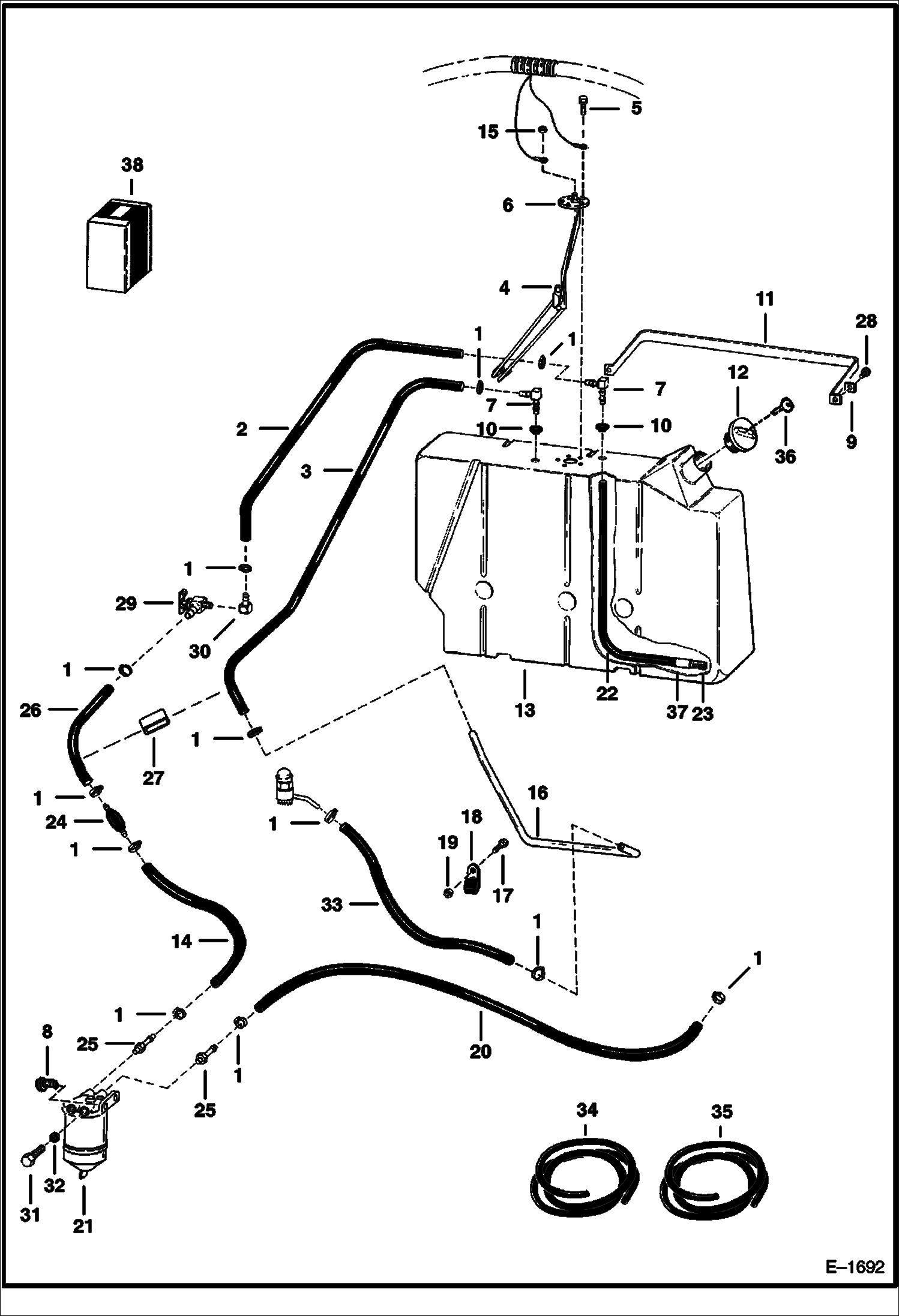

Запчасти Bobcat 800s FUEL SYSTEM MAIN FRAME

1

42HS04

CLAMP, HOSE Was 6515575 - A

2

HOSE NLA - 38'' (965,2 mm) - Order Ref. 34

3

HOSE NLA - 48'' (1219,2 mm) - Order Ref. 34

4

6568175

SENDER, FUEL

5

85G1008

SCREW

6

6630972

GASKET

7

6598908

ELBOW

8

84G3116

SCREW

9

6559447

WASHER square

10

6553411

BUSHING 0.38'' ID

11

6562605

BAND

12

6661114

CAP. DIESEL green - Was 6632468 - A

12

CAP NLA - locking - W/Ref. 36 - Code GC020 - Was 6654373 - A

12

6661696

CAP, FUEL LOCKING locking - W/Ref. 36 - Code PK510

13

6567944

TANK

14

HOSE NLA - 7'' (177,8 mm) - Order Ref. 35

15

14D10

NUT

16

6569319

TUBE

17

17C616

BOLT 5

18

30H31

CLAMP 10

19

85D6

NUT, 5

20

HOSE NLA - 40'' (1016 mm) - Order Ref. 35 - to injection pump

21

6560348

FITLER, FUEL ASSY See Illustration FUEL FILTER/ B5653

21

3885315

FILTER, FUEL 12

22

6564193

HOSE 22.5'' (571.5mm) of bulk 6569752

23

6650239

SCREEN, FUEL PICKUP Was 6598911 - A

24

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long - A

25

1324240

CONNECTOR

26

HOSE NLA - 23'' (584,2 mm) - Order Ref. 35

27

6515603

GROMMET

28

84G3716

SCREW 5

29

6632593

VALVE shut off

30

6598753

ELBOW

31

6515682

PLUG W/Ref. 32

32

6515466

WASHER

33

HOSE NLA - 23'' (584,2 mm) - Order Ref. 34

34

6577821

HOSE bulk - sold per foot - Was 672221 - A

35

6577822

HOSE bulk - sold per foot - Was 6562515 - A

36

6654374

KEY Code GC020

36

6587458

KEY Code PK510

37

6661213

RING, COMPRESSION
