Запчасти Bobcat 800s SEAT & SEAT BAR MAIN FRAME

1

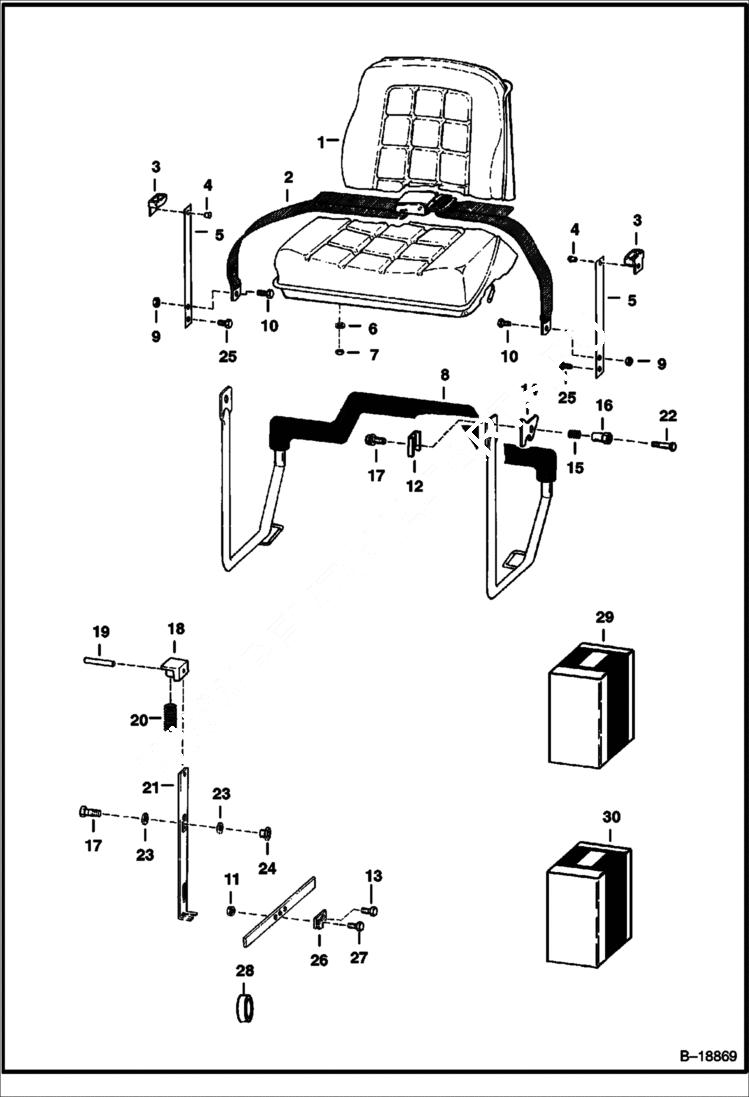

SEAT See Illustration SEAT/ B7185

2

SEAT BELT NLA - Order Ref. 30 - Was 6564774 - A

2

SEAT BELT NLA - Order 6675074 seat belts - Was 6667875 - A

2

SEAT BELT NLA - w/ spring plates - Order 6675074 seat belt & (2) of Ref. 5 (6725373 spring plate)

2

6675074

SEAT BELT W/O spring plates

3

GUIDE NLA - Order 6703703 - Was 6565355

4

6630207

RIVET 5 Was 6512797 - B

5

GUIDE ASSY. NLA - W/Ref. 3 & 4 - 13.75'' used W/NLA/6564774 - Was 6565354 - A

5

GUIDE ASSY. NLA - W/Ref. 3 & 4 - 12.25'' used W/NLA/6667875 - Order 6711908 spring plate, Ref. 3 & (2) of Ref. 4 - Was 6711907 - A

5

6711908

SPRING PLATE Use W/Ref. 2 (NLA/6667875 seat belt)

5

6725373

SPRING PLATE Use W/Ref. 2 (6675074 seal belt)

6

4E5

WASHER

7

61D5

NUT

8

6706324

SEAT BAR Was 6703301 - A

9

85D7

NUT

10

17C716

BOLT

11

83D6

NUT 5

12

6563557

WASHER

13

17C616

BOLT 5

14

6563313

RETAINER

15

6704453

SPRING Was 6503387 - A

16

6568742

BUSHING

17

17C612

BOLT 5

18

6563148

BLOCK, SPRING

19

14J2512

PIN 5

20

6702430

SPRING, COMPRESSION Was 6563149 - C

21

6563160

LOCK

22

35C608

BOLT

23

6563152

WASHER nylon

24

6559479

NUT

25

84G3712

BOLT 5

26

6563151

LINK

27

17C614

BOLT

28

6562956

CLAMP

29

KIT See Illustration SEAT BAR KIT/ C3341 - Gas Spring Seat Bar

30

KIT NLA - Order Ref. 2 (6675074 Seat Belt) & (2) of Ref. 5 (6725373 spring plate) - W/Ref. 2 & 5
