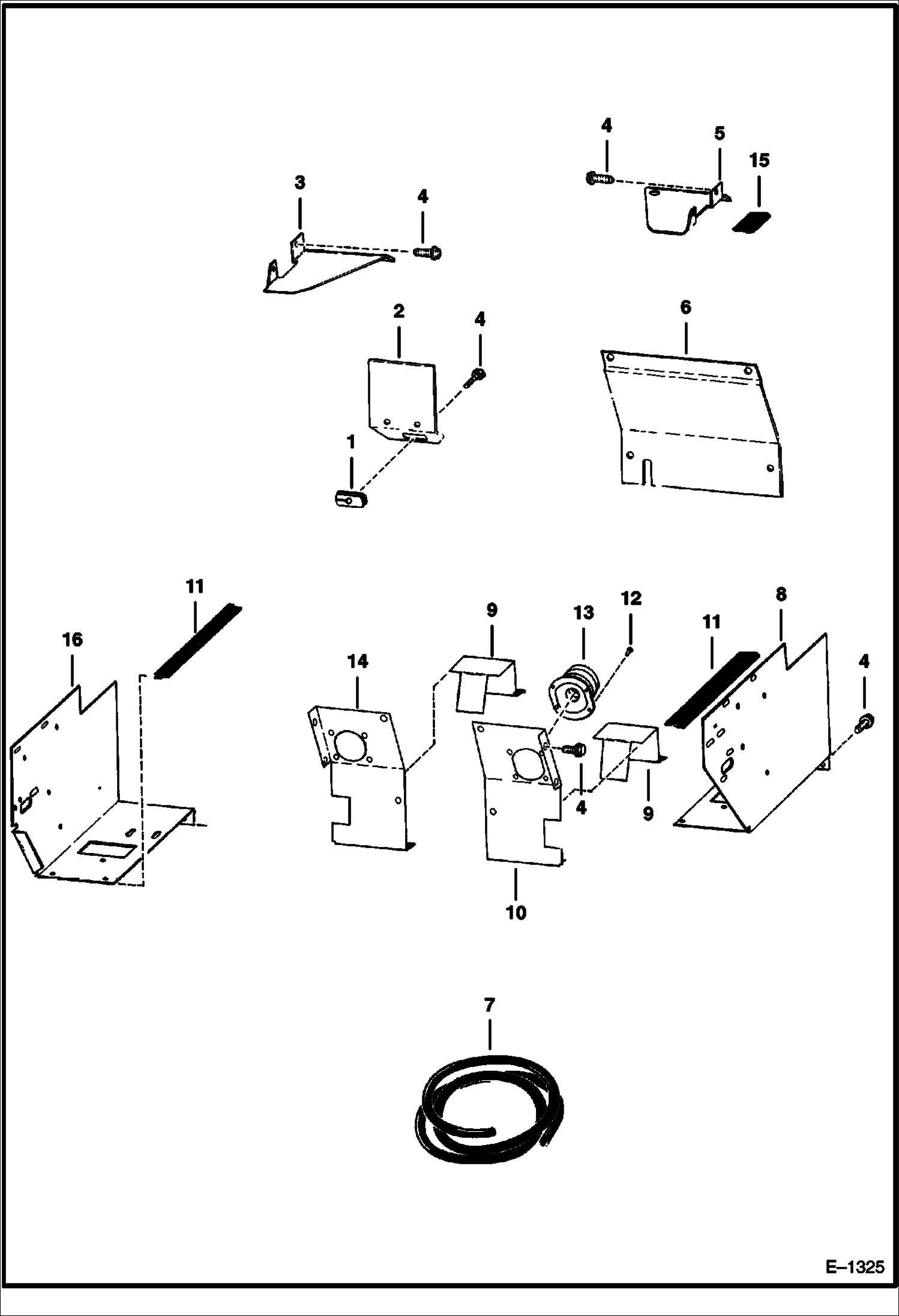

Запчасти Bobcat 800s PANELS MAIN FRAME

1

6553653

GROMMET

2

6562807

SHIELD

3

6562450

BRACE

4

84G3712

BOLT 5

5

6562451

BRACE

6

6562589

COVER

7

6646705

SEAL bulk - Sold Per Foot - Order Feet Required - Was 6559764 - A

8

6562590

SHIELD R.H.

9

6559762

STEP

10

6563546

PANEL R.H.

11

MOULDING NLA - 23'' (584,2 mm) - Order Ref. 7

12

6630207

RIVET 5

13

6532127

BOOT rubber - W/Metal plate - Was 6563540 - A

14

6563545

PANEL L.H.

15

MOULDING NLA - 5'' (127 mm) - Order Ref. 7

16

6562591

SHIELD L.H.
