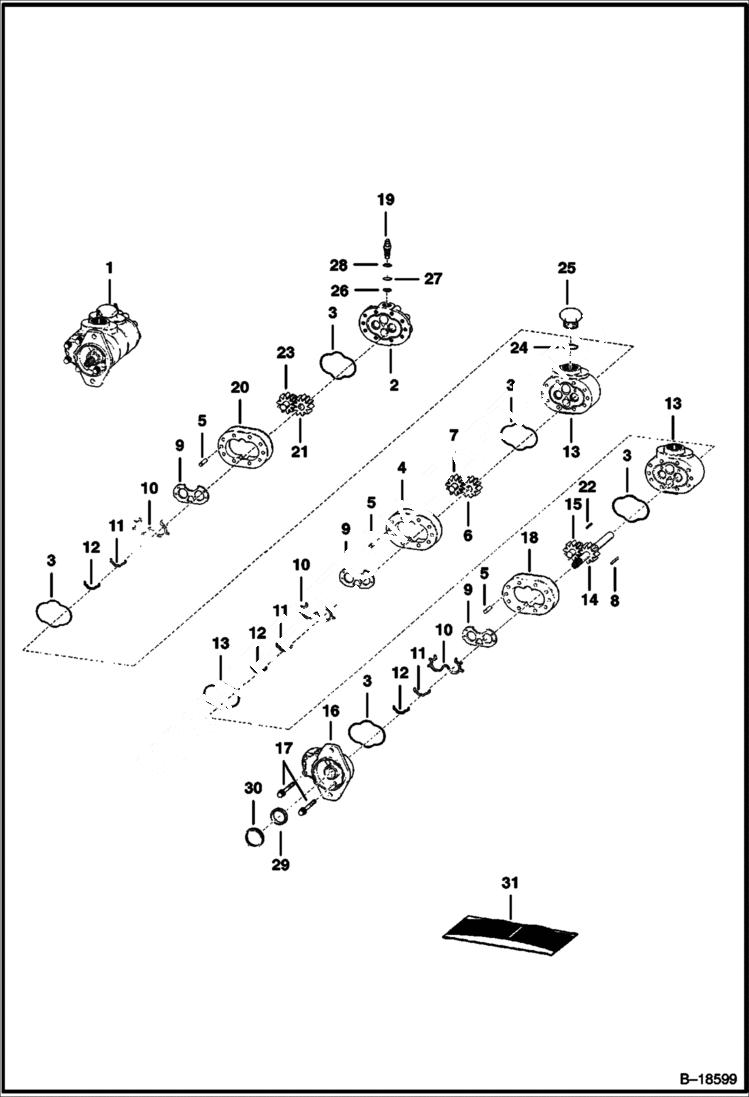

Запчасти Bobcat 800s HIGH HORSEPOWER HYDRAULICS (Triple Gear Pump) ACCESSORIES & OPTIONS

1

6649526

GEAR PUMP See BTI244 25386-RAR

1

6698251

PUMP, GEAR See BTI244 25386-RAV - Was 6651876 - A

2

6650613

PLATE back

3

O-RING NSS

4

6630357

BODY W/Ref. 5

5

455536

DOWEL

6

GEAR NLA - slip - Was 6630363 - A

7

NLA - Idler - Was 6630358 - A

8

6630351

KEY

9

PLATE NSS - wear

10

SEAL NSS

11

O-RING NSS - molded

12

GASKET NSS

13

6650614

PLATE adapter - W/Ref. 5

14

SHAFT NLA - idler & gear - Was 6650615 - A

15

GEAR NLA - idler - Was 6630360 - A

16

6650612

PLATE front - For 6649526 Pump

16

PLATE NLA - front - for 6651877 Pump - Was 6648916 - A

17

BOLT NLA - Was 6650617 - A

18

6630359

BODY W/Ref. 5

19

6650618

RELIEF VALVE

20

6631916

BODY

21

6631917

GEAR

22

6631924

KEY

23

6631913

GEAR idler

24

O-RING NSS

25

6650616

PLUG

26

O-RING NSS

27

BACK-UP RING NSS

28

WASHER NSS

29

WASHER NSS - Use only in 6551876 Pump

30

SEAL NSS - Use only in 6551876 Pump

31

SEAL KIT NLA - Ref. 3, 9-12 & 24-28 - For 6649526 Pump - Was 6650619 - A

31

6665872

SEAL KIT Ref. 3, 9-12 & 24-30 - For 6651876 Pump - Was 6659558 - A
