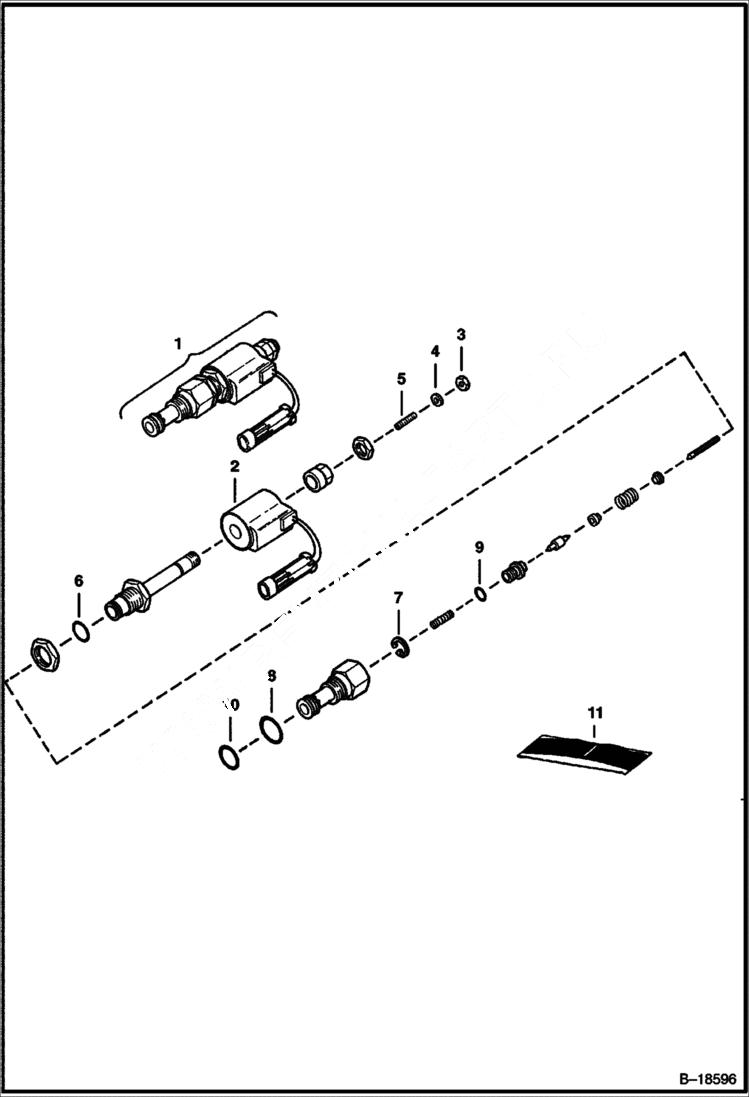

Запчасти Bobcat 800s HIGH HORSEPOWER HYDRAULICS (Main Relief Valve) ACCESSORIES & OPTIONS

1

RELIEF VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ B18597 NLA - Order Kit 6704615 - Was 6650690 - A

2

COIL ASSY NLA - Was 6670695 - A

3

6658425

NUT NSS - Sold in kit - Ref. 11

4

6658428

WASHER NSS - Sold in kit - Ref. 11

5

6658426

SCREW NSS - Sold in kit - Ref. 11

6

6658427

O-RING NSS - Sold in kit - Ref. 11

7

SNAP RING NSS - Was 6658429 - A

8

6650102

O-RING NSS - Sold in kit - Ref. 11

9

O-RING NSS - Was 6658430 - A

10

6650101

O-RING NSS - Sold in kit - Ref. 11

11

KIT NLA - Relief Valve W/Ref. 3-6, 8 & 10 - Order 6704615 - Was 6659496 - A
