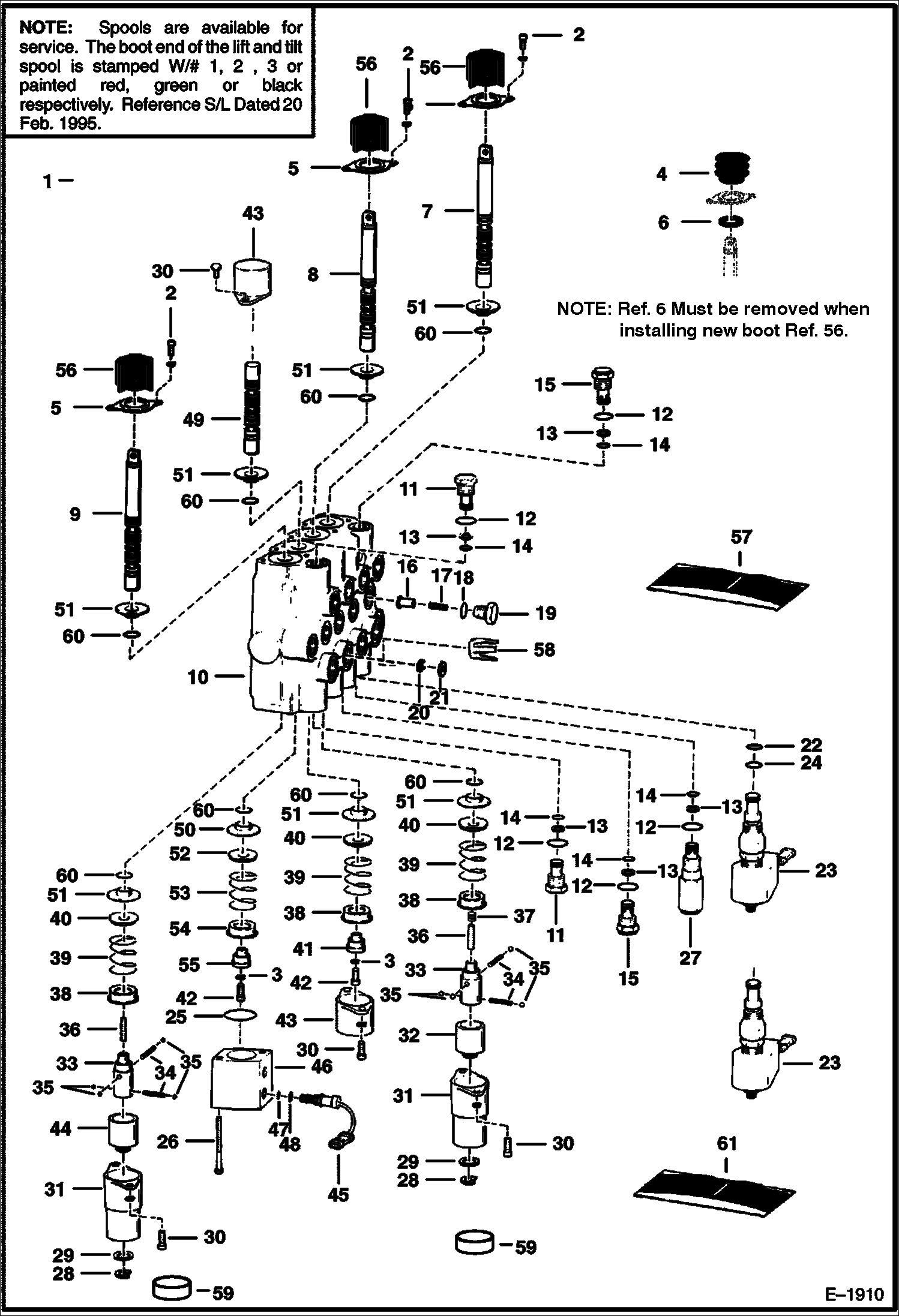

Запчасти Bobcat 800s HIGH HORSEPOWER HYDRAULICS Control Valve (S/N 50449 & Below) ACCESSORIES & OPTIONS

1

VALVE See BTI358 NLA - Ref. 2-44 & 46-50, 51 & 60 - Order 6586972 Valve, 755056 Adapter, 6704598 Hose, 19K-7 Tee & 6722172 Instructions - Was 6532141 - A

1

VALVE See BTI358 NLA - Order 6539333 Valve, (2) 6804920 Bushing, (2) 58K-127 O-ring & Ref. 46 From Old Valve - Was 6539332 - A

2

73G410

SCREW

3

22E4

WASHER

4

BOOT NLA - Order Ref. 56 - Was 6592122 - A

5

6592123

RETAINER

6

FILTER NLA - sintered - Not Use W/Ref. 56 - Was 6592124 - A

7

6666582

SPOOL lift - #1 or red - SEE NOTE

7

6666583

SPOOL lift - #2 or green - SEE NOTE

7

6666584

SPOOL lift - #3 or black - SEE NOTE

8

6666585

SPOOL tilt - #1 or red - SEE NOTE

8

6666586

SPOOL tilt - #2 or green - SEE NOTE

8

6666587

SPOOL tilt - #3 or black - SEE NOTE

9

6592119

SPOOL auxiliary - SEE NOTE

10

BODY NSS

11

6592720

PLUG W/Ref. 12-14

12

79K10

O RING 10

13

80K14

BACK-UP WASHER Was 73K000014B - B

14

58K014

O-RING 10 back-up washer required - Was 25K20016 - B

15

6667549

VALVE anti-cavity - W/Ref. 12-14 - Was 6661345 - A

16

6592115

SEAT

17

6592117

SPRING, LOAD CHECK

18

79K8

O RING 10

19

6592116

NUT load check

20

6592111

ORIFICE .161/.154

21

6593680

RETAINER

22

6650101

O-RING

23

RELIEF VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ B18597 See Illustration HIGH HORSEPOWER HYDRAULICS/ B18596

24

6650102

O-RING

25

1K127

O-RING 10 Was 93K127 - A

26

17C444

BOLT

27

6599161

RELIEF VALVE relief - W/Ref. 12-14

28

799119

RING

29

6592098

WASHER

30

6588163

SCREW Was 69G000412B - A

31

6592094

BONNET

32

6592096

SLEEVE lift

33

6587575

ADAPTER Was 6592099 - A

34

6592107

SPRING

35

6592105

BALL

36

6632374

SCREW

37

PLUG NLA - plastic - Order 6596807 Plug & 54K020002B O-ring - Was 6592752 - A

37

6596807

PLUG plastic - 0.46'' long

37

54K20002

O'RING 10

38

6592100

COLLAR

39

6592106

SPRING

40

7211397

WASHER, SPRING Was 6587523 - A

41

6592109

ADAPTER

42

74G416

SCREW

43

6592097

BONNET

44

6593349

SLEEVE

45

6649018

SOLENOID Pulsar

46

6531083

BLOCK

47

25K20010

O RING 10

48

79K6

O RING 10

49

6532704

SPOOL

50

6593359

BUSHING

51

6592103

BUSHING

52

6593364

WASHER

53

6593366

SPRING

54

6593365

COLLAR

55

6593358

ADAPTER

56

6583727

BOOT

57

6816716

SEAL KIT See BTI374 - complete valve - Was 6589857 - A

58

6532633

RESTRICTOR

59

6631704

CAP

60

6659554

SEAL See BTI374 lip

60

6646372

SEAL See BTI374 quad ring seal

61

6816250

KIT, SEAL See BTI374 Ref. 30, 56 & 60 - For One Spool - Was 6596310 - A
