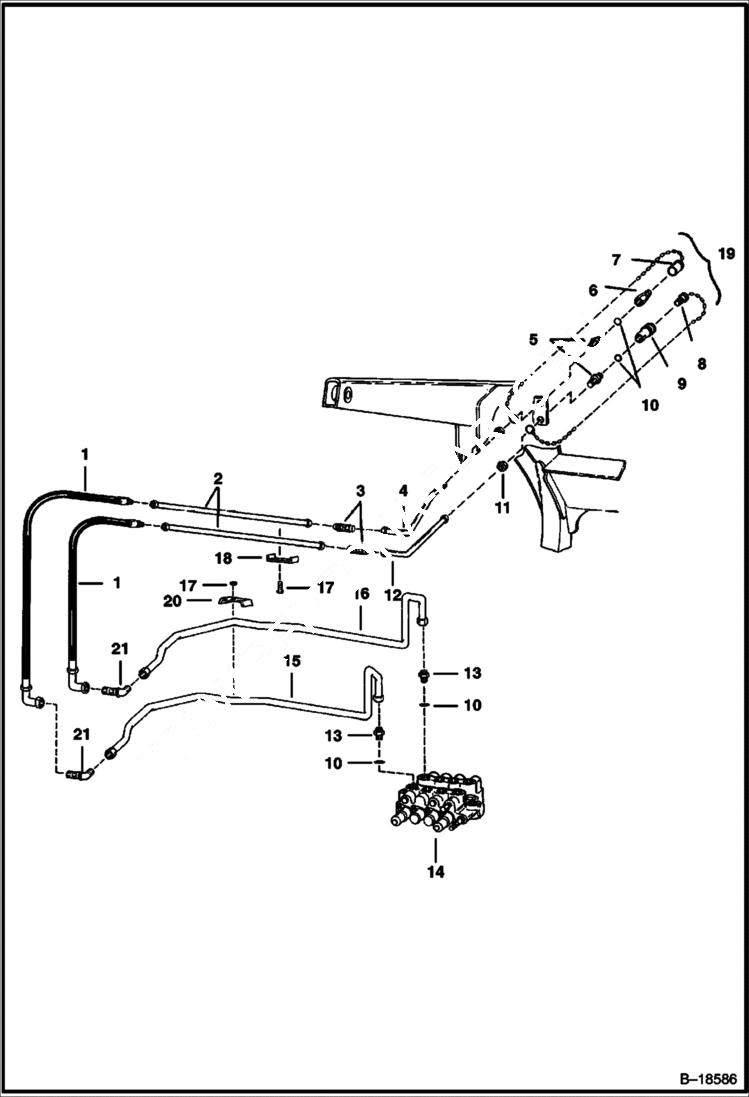

Запчасти Bobcat 800s HIGH HORSEPOWER HYDRAULICS Auxiliary Hydraulics (S/N 50450 & Above) ACCESSORIES & OPTIONS

1

6701027

HOSE

2

6559442

TUBE

3

77F7

ELBOW

4

6559500

TUBE

5

45K7

CONNECTR W/Ref. 10

6

6598757

COUPLER, POPPET MALE straight

7

6515168

CAP Steel

8

6515167

PLUG Steel

9

6598758

COUPLER, POPPET FEMALE straight

9

48K16

O RING 10

10

79K10

O RING 10

11

86F7

LOCK NUT

12

6559501

TUBE

13

15K7

FITTING W/Ref. 10

14

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ B18587 See Illustration HIGH HORSEPOWER HYDRAULICS/ E1910

15

6701024

TUBE

16

6701023

TUBE

17

85D6

NUT, 5

18

6559459

WASHER

19

6513709

CAP PLUG W/plug assy. - Rubber

20

6502203

CLAMP

21

46K7

ELBOW
