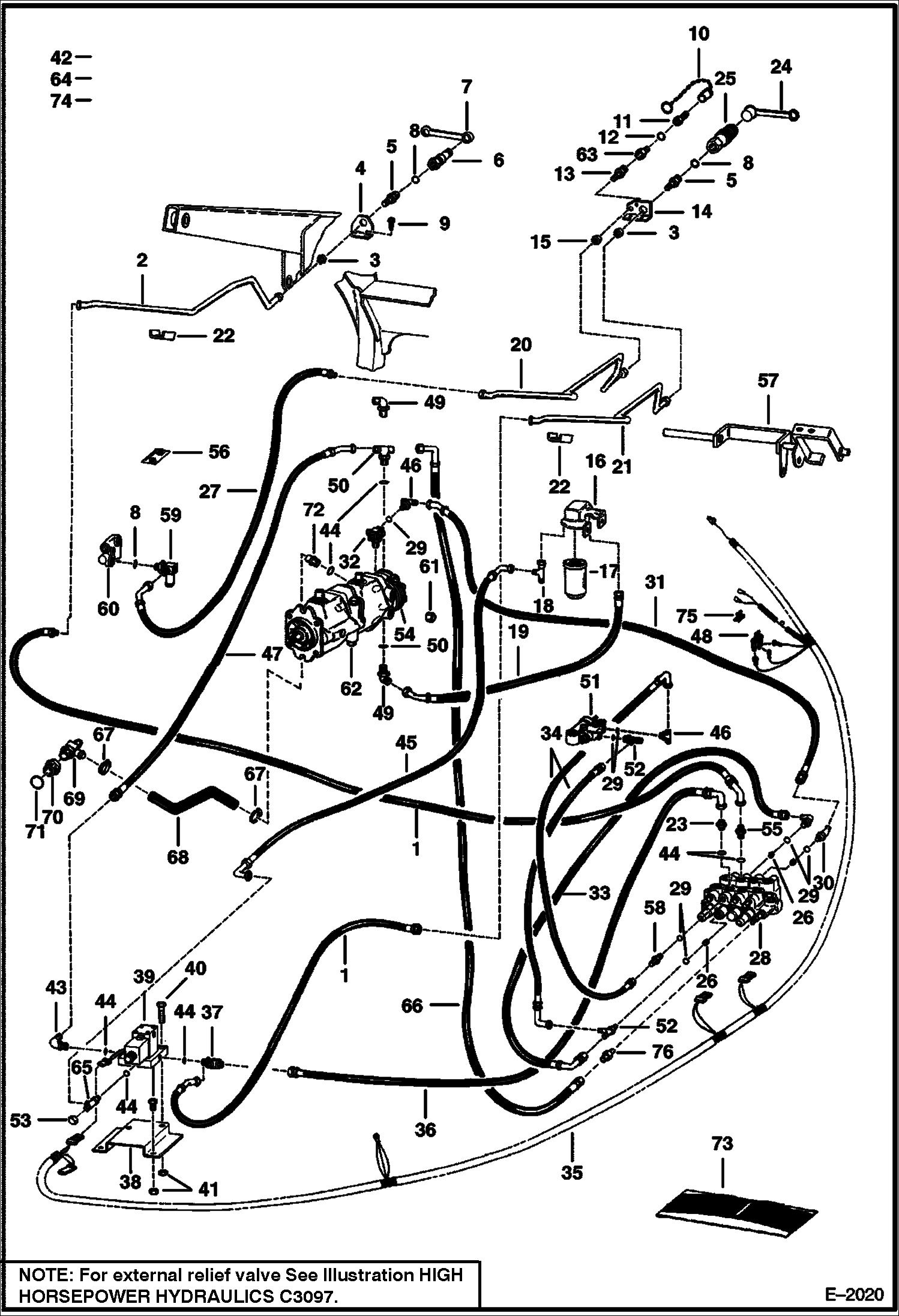

Запчасти Bobcat 800s HIGH HORSEPOWER HYDRAULICS (S/N 50450 & Above) ACCESSORIES & OPTIONS

1

6578649

HOSE

2

6702794

TUBE Also Order Ref. 74 - Was 6578339 - A

3

86F8

NUT 5

4

6578538

MOUNT

5

45K8

ADAPTOR Use With O-ring Couplers

5

6700267

ADAPTER Use With Pipe Thread Couplers

6

6641358

COUPLER Male - O-ring Thread

6

6515597

QUICK COUPLER Male - Pipe Thread

7

6645232

DUST COVER For O-ring Threads

7

6515599

CAP For Pipe Threads

8

79K12

O RING 10

9

84G3116

SCREW

10

6515168

CAP for 6598757 Coupler

10

6658255

DUST CAP for 6658253 Coupler

11

6598757

COUPLER, POPPET MALE straight - A

11

6658253

QUICK COUPLER Male - Screw together

12

79K8

O RING 10

13

45K6

CONNECTR

14

6578539

MOUNT

15

86F6

NUT

16

HEAD See Illustration HYDROSTATIC CIRCUITRY/ E2030 See Illustration HYDROSTATIC CIRCUITRY/ B18518 filter

17

6630977

ELEMENT filter

18

13K7

FITTING

19

6578627

HOSE

20

6578340

TUBE

21

6578338

TUBE

22

6579110

CLAMP

23

15K7

FITTING

24

6645231

DUST COVER For O-ring Thread

24

6515598

PLUG For Pipe Thread

25

6641359

COUPLER Female - O-ring Thread

25

6515596

QUICK COUPLER Female - Pipe Thread

25

25K40110

O RING 10

25

73K219

BK UP RG

26

6654362

ORIFICE

27

6579223

HOSE .025'' (0,63 mm)

28

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ B18587 See Illustration HIGH HORSEPOWER HYDRAULICS/ E1910

29

79K4

O RING 10

30

18K3

ELBOW W/Ref. 29

31

6577412

HOSE

32

6577257

TEE Was 6565557 - B

33

6701854

HOSE

34

6809329

HOSE Was 6578644 - A

35

6701100

HARNESS Was 6578566 - A

36

6578645

HOSE

37

6578640

TEE

38

6578511

MOUNT

39

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ B18598 solenoid

40

17C536

BOLT

41

85D5

NUT 5

42

17C516

BOLT

43

17K7

ELBOW W/Ref. 44

44

79K10

O RING 10

45

6579564

HOSE

46

19K3

FITTING W/Ref. 29

47

6579638

HOSE

48

6654228

SWITCH toggle

49

17K7

ELBOW W/Ref. 50 - Was 17K000008B - B

50

19K7

TEE Was 79K000012B - B

51

SERVO See Illustration SERVO/ D1660

52

21K3

CONNECTOR W/Ref. 29

53

36K7

FITTING

54

6649526

GEAR PUMP See Illustration HIGH HORSEPOWER HYDRAULICS/ B18599 triple

55

730963

CONNECTR

56

6701101

DECAL Was 6578856 - A

57

6578848

SHAFT

58

15K3

CONNECTOR

59

6579182

FITTING W/Ref. 8

60

PORT BLOCK See Illustration HYDROSTATIC CIRCUITRY/ E2030 See Illustration HYDROSTATIC CIRCUITRY/ B18518

61

36K8

CAP

62

PUMP See Illustration HYDROSTATIC PUMP/ D1518 See Illustration HYDROSTATIC PUMP/ D1518A See Illustration HIGH HORSEPOWER HYDRAULICS/ B18599 NLA - 78552-RAJ W/Gear Pump - For Breakdown of Hydrostatic P

62

6651692

PUMP See Illustration HYDROSTATIC PUMP/ D1518 See Illustration HYDROSTATIC PUMP/ D1518A See Illustration HIGH HORSEPOWER HYDRAULICS/ B18599 78552-RAL W/Gear Pump - For Breakdown of Hydrostatic Pump Se

63

6651223

ADAPTER Use W/Standard Quick Coulper

63

6702981

ADAPTER Use W/Screw together Quick Coulper

64

17K3

ELBOW

65

13K7

FITTING W/Ref. 44 - Was 21K000007B - B

66

6704598

HOSE

67

42H32

HS CLAMP5

68

6700118

HOSE

69

6700146

TEE

70

6700145

ADAPTER

71

79K24

O RING 10

72

6567885

ADAPTER

73

6648561

SEAL KIT Includes Seals For 6641358 & 6641359 Couplers

74

11K8

ELBOW

75

6515510

COVER Switch

76

755056

CONNECTR
