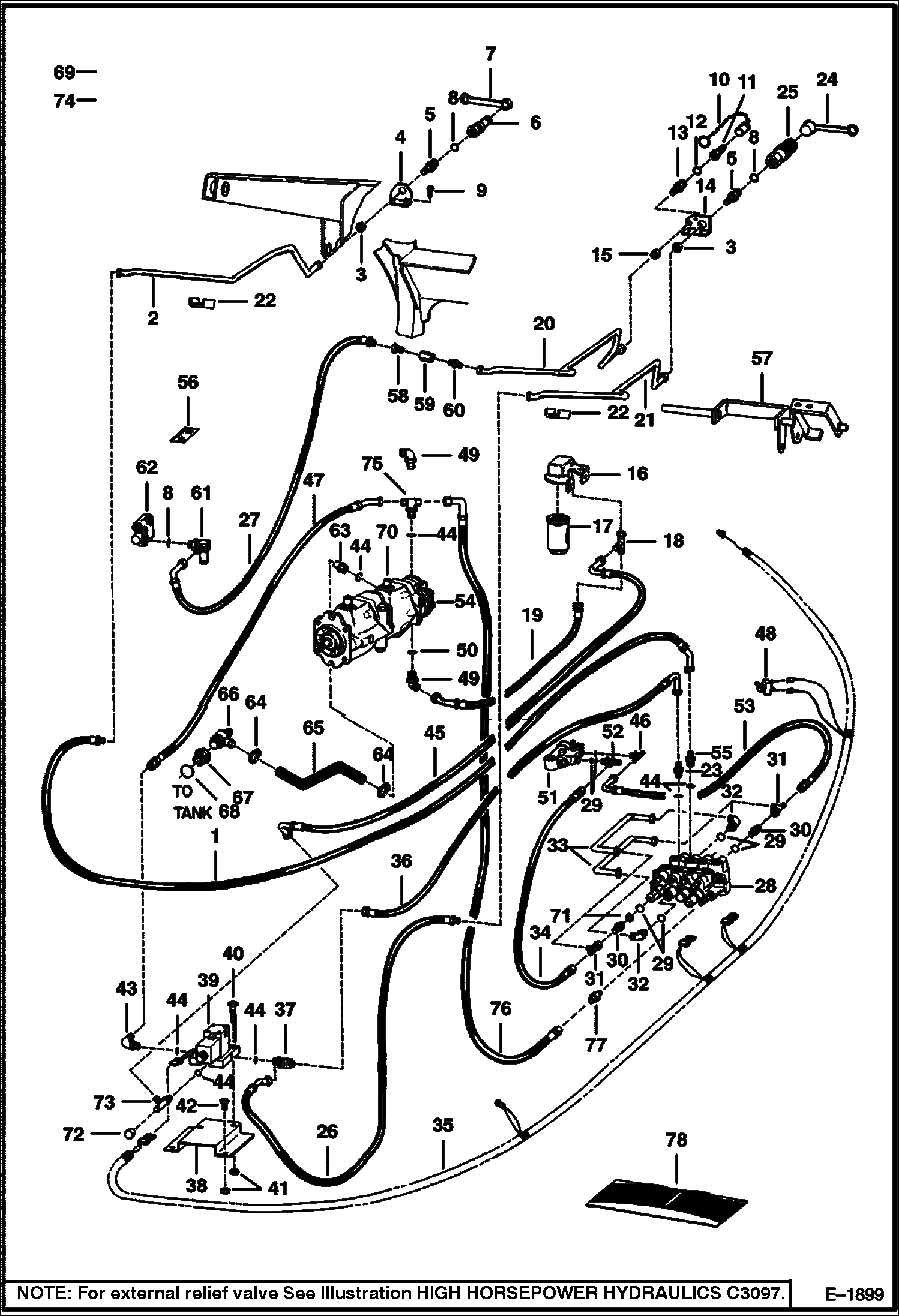

Запчасти Bobcat 800s HIGH HORSEPOWER HYDRAULICS (S/N 50449 & Below) ACCESSORIES & OPTIONS

1

6578649

HOSE

2

6702794

TUBE Also Order Ref. 74 - Was 6578339 - A

3

86F8

NUT 5

4

6578538

MOUNT

5

45K8

ADAPTOR Use With O-ring Couplers

5

6700267

ADAPTER Use With Pipe Thread Couplers - Was 65700267 - A

6

6641358

COUPLER Male - O-ring Thread

6

6515597

QUICK COUPLER Male - Pipe Thread

7

6645232

DUST COVER For O-ring Threads

7

6515599

CAP For Pipe Threads

8

79K12

O RING 10

9

84G3116

SCREW

10

3679001

CAP

11

6630093

COUPLER Male

12

79K8

O RING 10

13

45K6

CONNECTR

14

6578539

MOUNT

15

86F6

NUT

16

HEAD See Illustration HYDROSTATIC CIRCUITRY/ E2030 See Illustration HYDROSTATIC CIRCUITRY/ B18518 filter

17

6630977

ELEMENT filter

18

13K7

FITTING

19

6578627

HOSE

20

6578340

TUBE

21

6578338

TUBE

22

6579110

CLAMP

23

15K7

FITTING

24

6645231

DUST COVER For O-ring Thread

24

6515598

PLUG For Pipe Thread

25

6641359

COUPLER Female - O-ring Thread

25

6515596

QUICK COUPLER Female - Pipe Thread

25

25K40110

O RING 10

25

73K219

BK UP RG

26

6578648

HOSE

27

6579223

HOSE

28

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ B18587 See Illustration HIGH HORSEPOWER HYDRAULICS/ E1910

29

79K4

O RING 10

30

15K3

CONNECTOR W/Ref. 29

31

13K3

TEE

32

17K3

ELBOW W/Ref. 29

33

6578626

TUBE

34

6809329

HOSE Was 6578644 - A

35

6578566

HARNESS

36

6578645

HOSE

37

6578640

TEE

38

6578511

MOUNT

39

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ B18598 solenoid

40

17C536

BOLT

41

85D5

NUT 5

42

17C516

BOLT

43

17K7

ELBOW W/Ref. 44

44

79K10

O RING 10

45

6579564

HOSE Was 6578646 - A

46

19K3

FITTING W/Ref. 29

47

6579638

HOSE Was 6578647 - A

48

6654228

SWITCH toggle - Was 6515521 - A

49

17K8

FITTING W/Ref. 50 - Use W/Elec. Relief Valve

50

79K12

O RING 10

51

SERVO See Illustration SERVO/ D1660

52

21K3

CONNECTOR W/Ref. 29

53

6578643

HOSE

54

GEAR PUMP See Illustration HIGH HORSEPOWER HYDRAULICS/ B18599 triple

55

730963

CONNECTR

56

6578856

DECAL

57

6578848

SHAFT

58

9K2

ADAPTER reducer

59

80F6

NUT

60

87F6

FITTING

61

6579182

FITTING W/Ref. 8

62

PORT BLOCK See Illustration HYDROSTATIC CIRCUITRY/ E2030 See Illustration HYDROSTATIC CIRCUITRY/ B18518

63

6567885

ADAPTER

64

42H32

HS CLAMP5

65

6700118

HOSE

66

6700146

TEE

67

6576669

ADAPTER

67

6700145

ADAPTER

68

79K24

O RING 10

69

36K8

CAP

70

PUMP See Illustration HYDROSTATIC PUMP/ D1518 See Illustration HYDROSTATIC PUMP/ D1518A See Illustration HIGH HORSEPOWER HYDRAULICS/ B18599 NLA - 78552-RAJ W/Gear Pump - For Breakdown of Hydrostatic P

70

6651692

PUMP See Illustration HYDROSTATIC PUMP/ D1518 See Illustration HYDROSTATIC PUMP/ D1518A See Illustration GEAR PUMP/ B18526 78552-RAL W/Gear Pump - For Breakdown of Hydrostatic Pump See Illustrations D

71

6531153

RESTRICTOR .025 - Was 6654362 - A

72

36K7

FITTING

73

21K7

TEE W/Ref. 44

74

11K8

ELBOW

75

19K7

TEE

76

6704598

HOSE

77

755056

CONNECTR

78

6648561

SEAL KIT includes seals for 6641358 & 6641359 couplers
