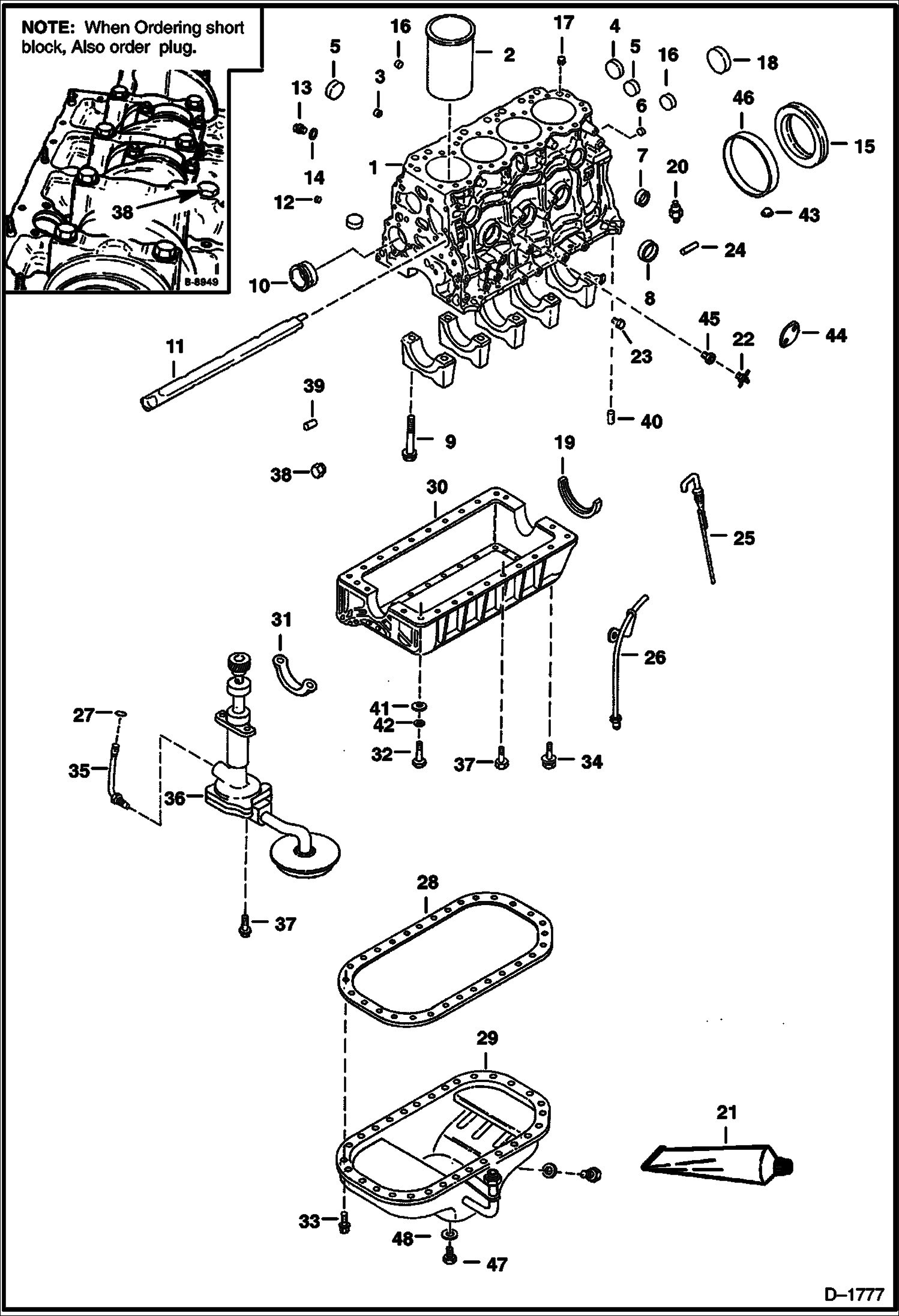

Запчасти Bobcat 800s CYLINDER BLOCK & OIL PAN POWER UNIT

1

6631768

BLOCK W/Ref. 2-10

1

BLOCK NLA - W/Ref. 2-10 - Was 6655862 - A

2

6631853

LINER, CYL CRANKCASE

2

LINER NLA - Kit, W/Liner, Piston, Rings, Rod Bushing - For Complete Engine - Was 6664579 - A

3

6631743

PLUG sealing - 18 mm

4

6631745

CUP sealing - 38,42 mm

5

6631746

PLUG sealing - 36 mm

6

6631738

CUP sealing - size not available

7

6669706

CUP sealing - 31,75 mm - Was 6667158 - A

8

6631730

CUP sealing - 44,6 mm

9

6631893

BOLT

10

6636008

BEARING SET camshaft std. - Was 6631842 - A

10

BEARING SET NLA - camshaft - 0.25 mm - Was 6640808 - A

10

BEARING SET NLA - camshaft - 0.50mm - Was 6630639 - A

10

BEARING SET NLA - camshaft - 0.75 mm - Was 6640810 - A

10

6640811

BEARING SET camshaft - 1.00 mm

11

6658192

DUCT water - Was 6631792 - A

12

6631739

PLUG taper oil gallery

13

6631824

PLUG oil gallery

14

3674009

GASKET

15

6656476

SEAL fabric lip seal - Was 6631847 - A

16

6670643

CUP sealing - 16 mm - Was 6512964 - A

17

6631895

DOWEL

18

6631922

CUP sealing - 56 mm

19

6660009

GASKET Was 6632961 - A

20

SWITCH See Illustration ENGINE ELECTRICAL/ E1767 oil pressure

21

6650388

SEALANT gasket - Between Ref. 30 & 1 - Was 1802303B - A

22

6569288

VALVE drain - Was 6569258 - A

23

6631891

PLUG water drain

24

6631887

PIN rear plate

25

6659342

DIPSTICK Was 6631867 - A

26

6659931

TUBE W/Nut - Was 6632957 - A

27

6631740

O-RING

28

6660325

GASKET Was 6632958 - A

29

6659930

PAN Was 6632956 - A

30

6659927

CRANKCASE Was 6632959 - A

31

6665210

GASKET Was 6632962 - A

32

6632968

BOLT

33

6667582

BOLT Was 6631879 - A

34

6661096

BOLT Was 6632970 - A

35

6658199

PIPE W/Nut - Also Order Ref. 27 - Was 6631773 - A

36

6660007

OIL PUMP See Illustration OIL PUMP/ C2929 Was 6632963 - A

37

6658214

BOLT Was 3676977B - A

38

6513010

PLUG oil jet

39

6631886

PIN

40

6632965

PIN

41

6632969

WASHER

42

6512736

WASHER

43

6632964

CAP sealing

44

6632960

COVER With Gasket

45

6569287

ADAPTER

46

SPEEDI SLEEVE NLA - not to be used with fabric lip seal Order Ref. 15 - Was 6653217 - A

47

6631907

OIL PLUG

48

6667583

GASKET
