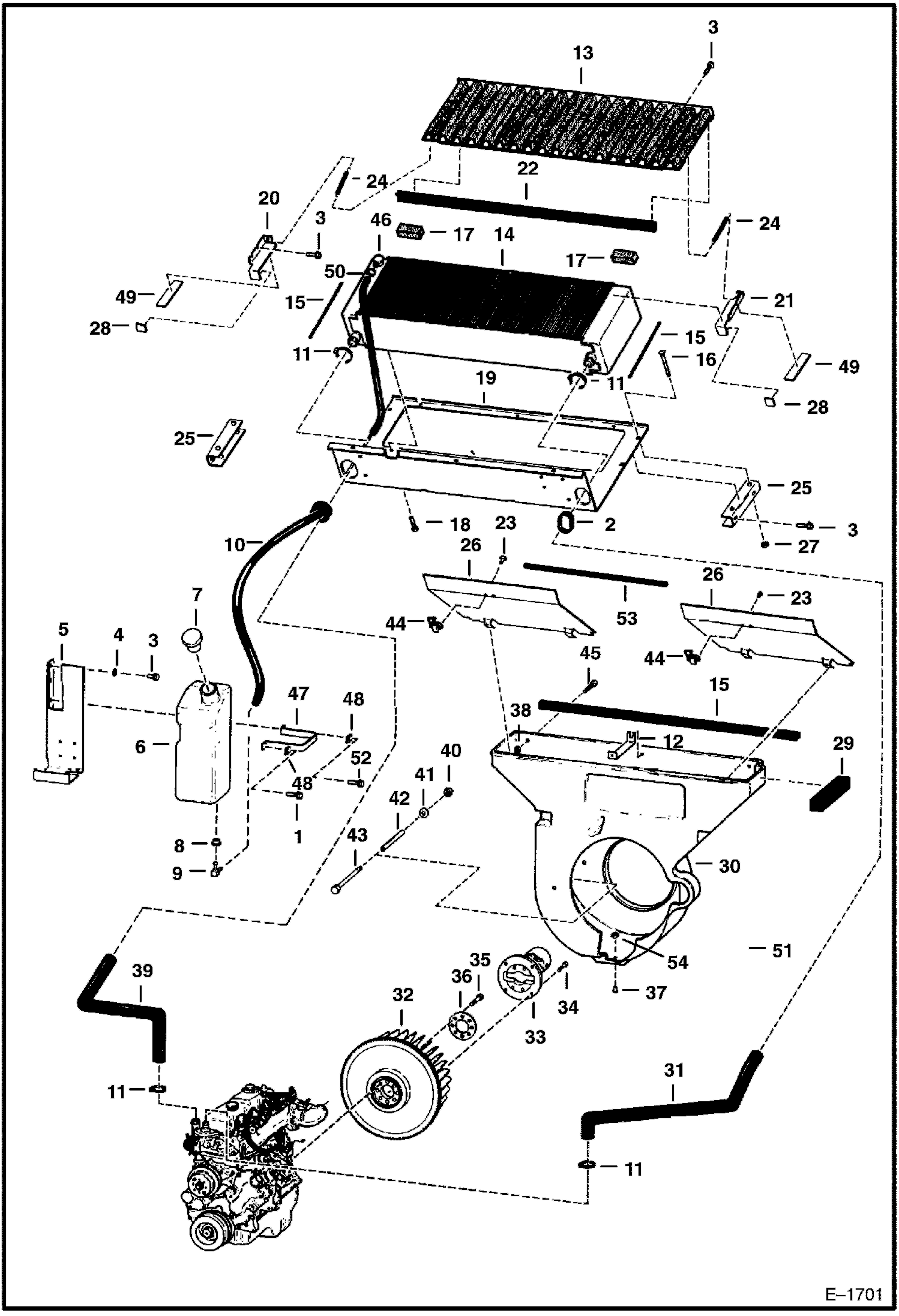

Запчасти Bobcat 800s ENGINE & ATTACHING PARTS POWER UNIT

1

84G3716

SCREW 5

2

6512067

GROMMET

2

6512686

MOULDING bulk - sold per foot - Was 6620417 - A

3

84G3712

BOLT 5

4

6E6

WASHER

5

6567509

MOUNT

6

6567508

TANK

7

6702797

CAP Was 6558658 - A

8

6553411

BUSHING

9

6553412

ELBOW

10

6562603

HOSE

11

42H32

HS CLAMP5

12

6568898

BRACE

13

6567714

GRILL

14

6648799

RADIATOR Was 6569934 - A

15

6511855

SEAL self adhesive - bulk - sold per foot

16

7C536

BOLT

17

6554274

INSULATION bulk - Sold Per Foot

18

1C506

BOLT Was 17C000506B - A

19

6567715

SHIELD

20

6567893

RETAINER W/Ref. 49 & 50

21

6567892

RETAINER W/Ref. 49 & 50

22

4126590

MOULDING bulk - sold per foot

23

6631024

RIVET

24

6630533

SPRING

25

6567719

CHANNEL

26

6567718

COVER

27

57D5

NUT

28

6567895

STRIP rubber

29

6560690

STRIP foam

30

6562211

BLOWER SHROUD blower

31

6568983

HOSE

32

6577048

BLOWER WHEEL blower - W/Ring Gear - Was 6569025 - A

32

6513662

RING GEAR

33

U-JOINT See Illustration UNIVERSAL JOINT/ B8970

34

17C624

BOLT 5

35

6665036

BOLT Was 6631605 - A

36

6631606

WASHER

37

RIVET NLA - Order 35C-620 & 59D-6 - Was 1316539 - A

37

35C620

BOLT 5

38

83D6

NUT 5

39

6568982

HOSE

40

85D6

NUT, 5

41

25E18

WASHER

42

6565333

BOLT

43

6563592

BUSHING

44

6598955

LATCH

45

84G3724

BOLT Was 84G003720B - B

46

6666606

RADIATOR CAP radiator - Was 6630156 - A

47

6567510

BAND

48

6567511

WASHER

49

6567894

STRIP rubber

50

42HS04

CLAMP, HOSE Was 6515575 - A

51

57D6

NUT 5

52

17C620

BOLT

53

6578062

SEAL bulk - Sold Per Foot

54

59D6

NUT
