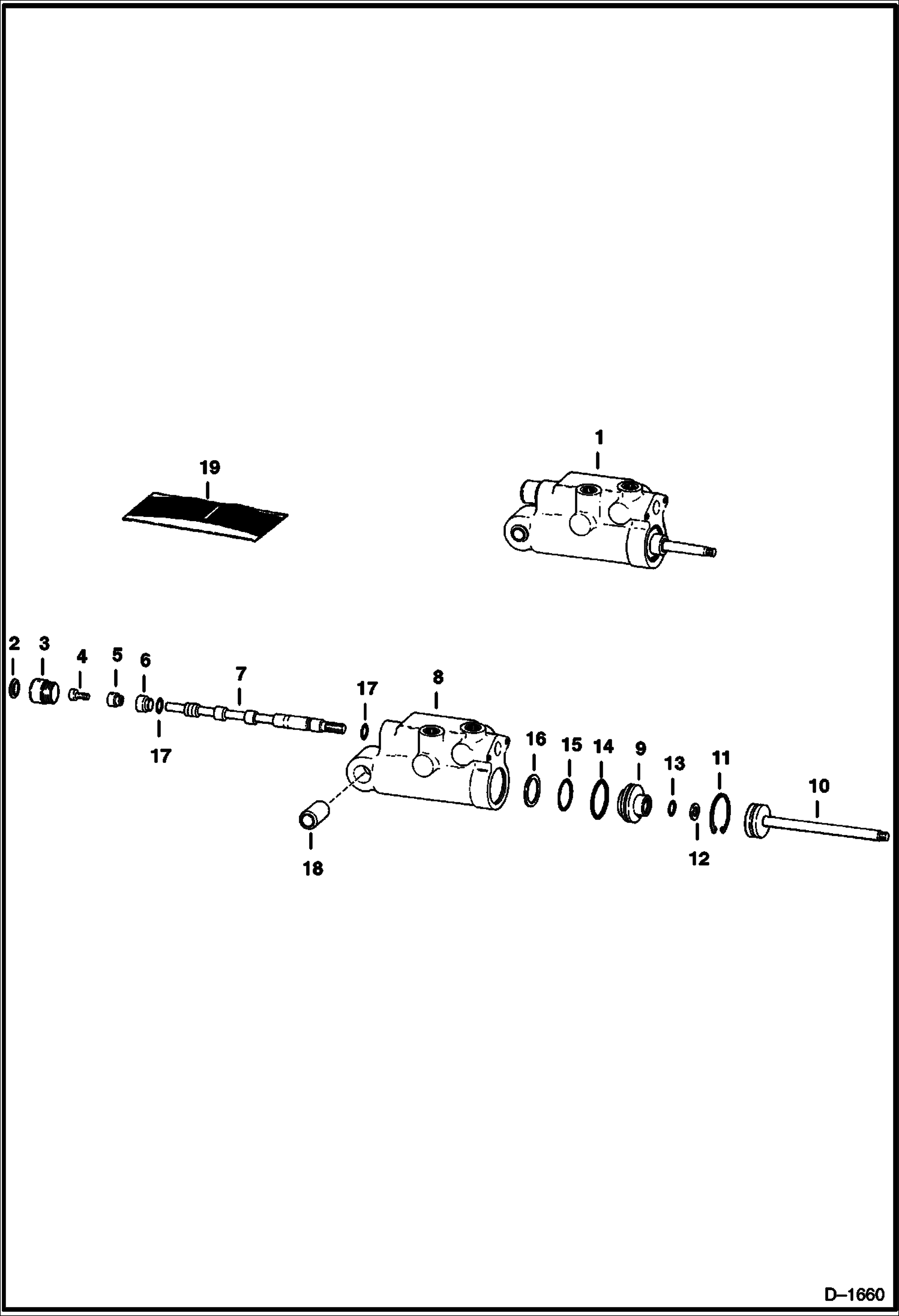

Запчасти Bobcat 800s SERVO (S/N 26001 & Above) HYDROSTATIC SYSTEM

1

6631608

SERVO Ref. 2-18

2

2509193

PLUG

3

6598863

CAP

4

73G416

SCREW Was 11G000416B - A

5

6599743

STOP

6

994785

RETAINER

7

SPOOL NSS

8

BODY NSS

9

6598866

HEAD

10

6630483

ROD & PISTON assy

11

661415

SNAP RING

12

WIPER SEAL NSS

13

O-RING NSS

14

O-RING NSS

15

O-RING NSS

16

RING NSS - slipper

17

O-RING NSS

18

6598865

BUSHING

19

6598864

SEAL KIT Ref. 11-17
