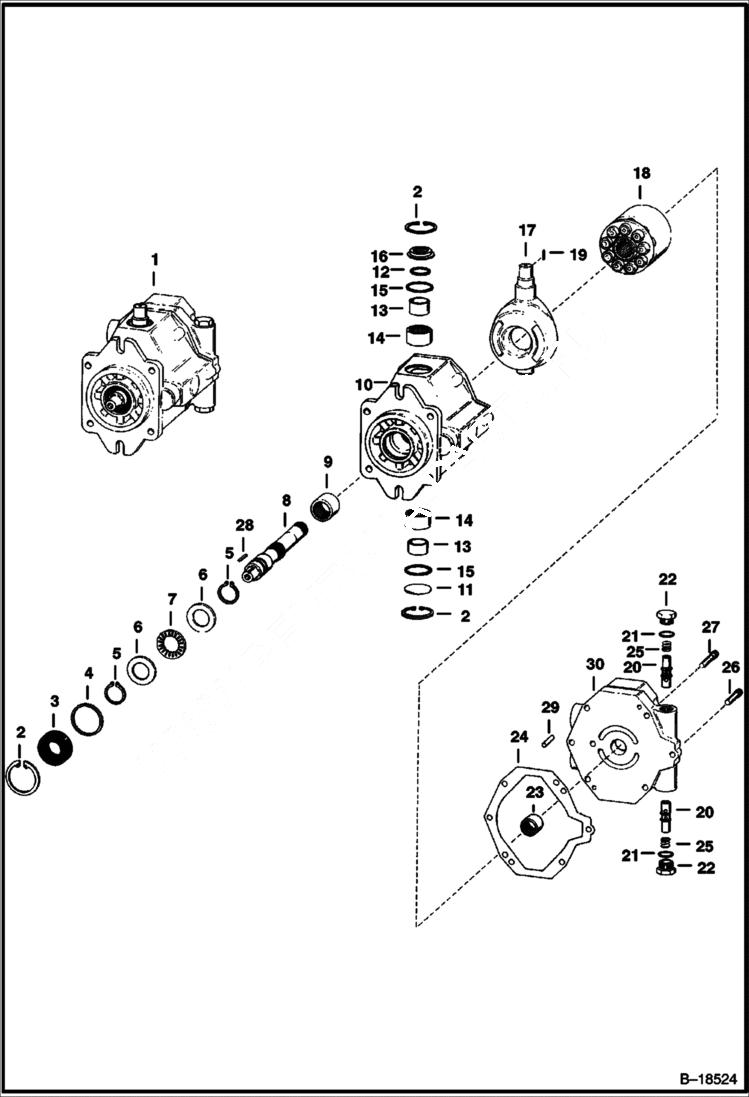

Запчасти Bobcat 800s HYDROSTATIC PUMP (Rear)(S/N 34222-49999) HYDROSTATIC SYSTEM

1

6513976

PUMP, HYD REAR rear - New - 70543-RAA

1

PUMP NLA - 70543-RAA - Was 6599512REM - A

2

952149

SNAP RING

3

6630611

SEAL shaft

4

6513982

WASHER

5

658128

RING, SNAP

6

6513983

RACE

7

6513984

BEARING thrust

8

6513999

SHAFT drive

9

BEARING NLA - Was 6514008 - A

10

6514000

HOUSING W/Ref. 9

11

6513996

COVER

12

6514011

SEAL

13

6513990

RACE

14

6513987

PLATE

15

58K225

O RING 10

16

6513988

RETAINER seal

17

6513993

YOKE

18

6513994

GROUP, ROTATING

19

6513986

KEY

20

6513978

RELIEF VALVE

21

58K118

O RING 10 Was 58K000111B - D

22

6513998

PLUG

23

6514009

BEARING

24

6631911

GASKET

25

6514010

SPRING

26

93G728

BOLT cap

27

93G736

SCREW cap

28

7J3010

KEY

29

886203

PIN ROLL

30

6514001

PLATE
