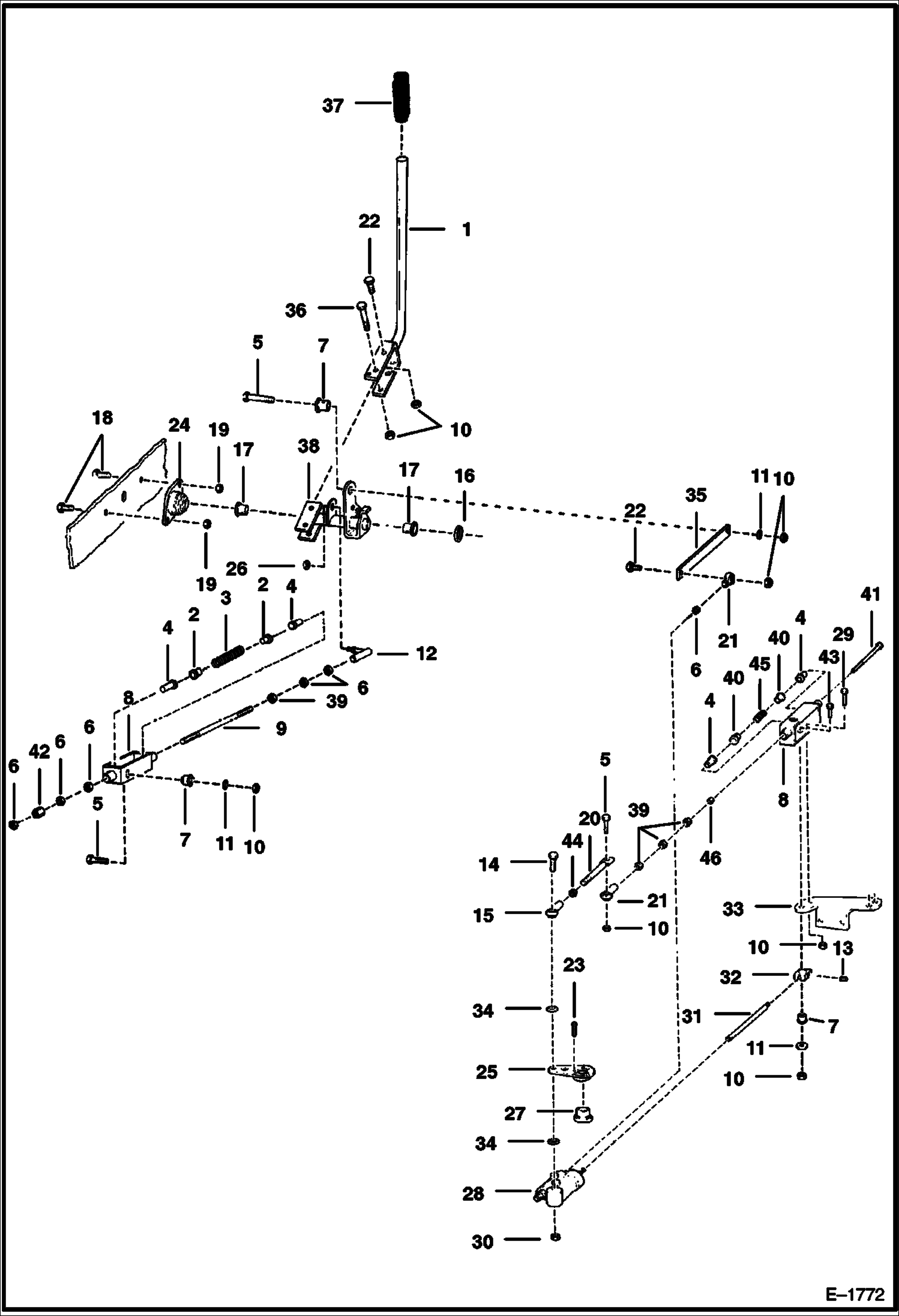

Запчасти Bobcat 800s HAND CONTROLS (LEFT SIDE) (S/N 29870-34222, 50000-59999 & 85000 & Above) HYDROSTATIC SYSTEM

1

6569496

LEVER

2

6579990

WASHER

3

SPRING NLA - Order Ref. 3, 6, 9 & 41

3

6700916

SPRING

4

6578582

BUSHING

5

17C624

BOLT 5

6

62D6

NUT 5 Was 8D000006B - B

7

6665701

BUSHING, PRESS FIT neoprene - Was 6630081 - A

8

6578581

BRACKET

9

6700647

ROD Was 6569188 - A

10

85D6

NUT, 5

11

6563914

WASHER

12

6599744

BALL JOINT

13

33G504

SET SCREW

14

17C1064

BOLT 5

15

6649696

END

16

6569563

WASHER

17

6512027

BUSHING

18

35C612

BOLT

19

83D6

NUT 5

20

6578575

LINK

21

6649660

ROD END

22

17C620

BOLT

23

21G1016

SCREW Was 21G001020B - B

24

6558736

FLANGE

25

6577746

LEVER L.H.

26

86D6

NUT

27

6630874

BUSHING

28

SERVO See Illustration SERVO/ D1660

29

17C616

BOLT 5

30

85D10

NUT, 5

31

6568627

ROD

32

6584289

BLOCK

33

6578585

BRACKET

34

6584863

SPACER

35

6568632

LINK

36

6569141

BOLT

37

6513963

GRIP

38

6578494

BELLCRANK

39

62D6

NUT 5

40

6571988

BUSHING

41

6578577

ROD See Illustration BACK-UP ALARM KIT/ B18538 1/2'' (12,7 mm) Head - For 1'' (25,4 mm) Head

42

6700648

STOP

43

17C626

BOLT

44

62D10

NUT

45

6579407

SPRING

46

6578583

BUSHING
