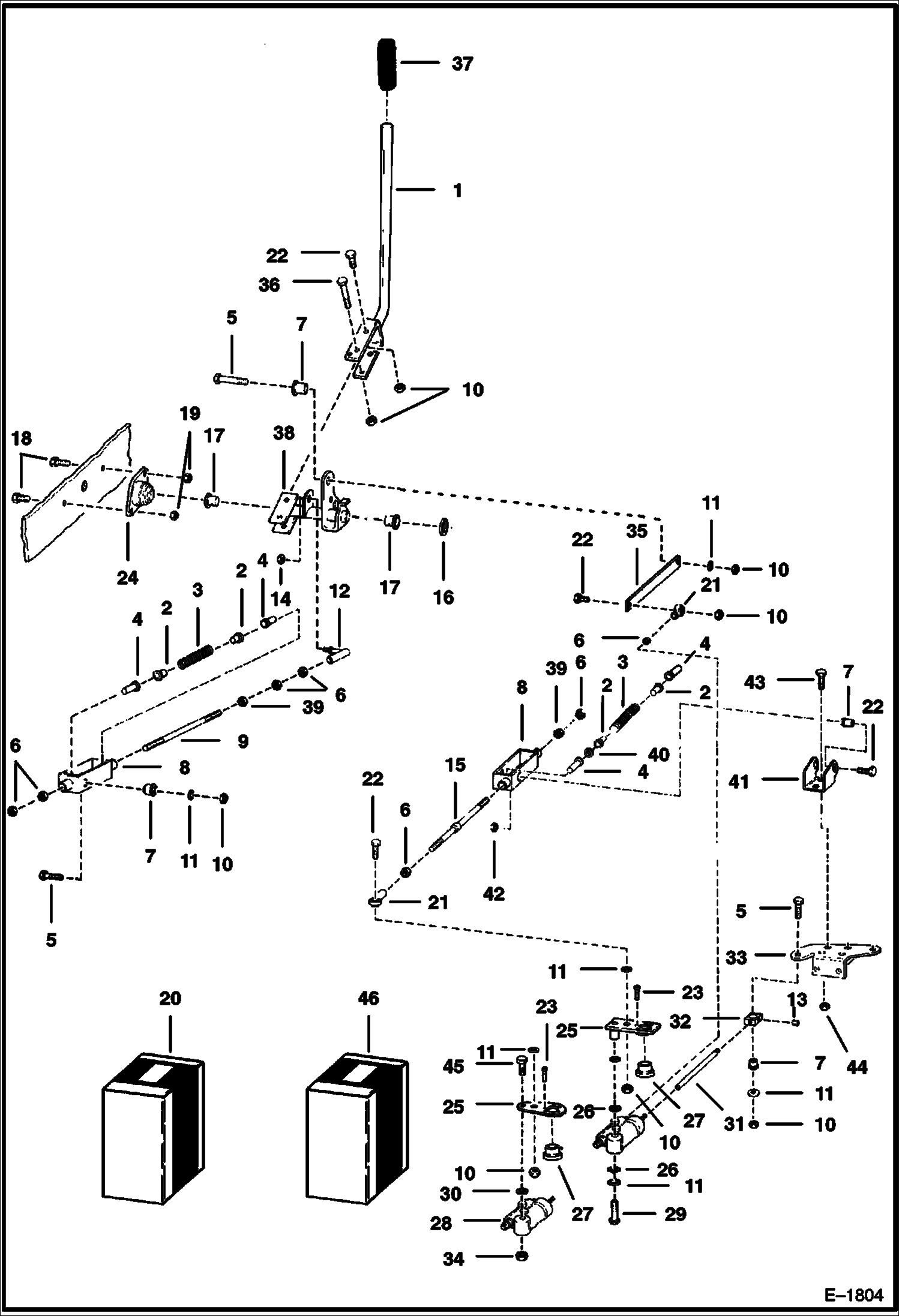

Запчасти Bobcat 800s HAND CONTROLS (LEFT SIDE) (S/N 26001-29869) HYDROSTATIC SYSTEM

1

6569496

LEVER

2

6579990

WASHER Was 6558429 - A

3

6569181

SPRING Was 6577186 - A

4

6569260

BUSHING

5

17C624

BOLT 5

6

8D6

NUT 5

7

6665701

BUSHING, PRESS FIT neoprene - Was 6630081 - A

8

6577361

BRACKET

9

6569188

ROD Was 6577250 - D

10

85D6

NUT, 5

11

6563914

WASHER

12

6599744

BALL JOINT

13

33G504

SET SCREW

14

86D6

NUT

15

6577250

ROD

16

6569563

WASHER

17

6512027

BUSHING

18

35C612

BOLT

19

83D6

NUT 5

20

6578087

KIT L.H. Pintle Lever - Ref. 23, 25, 30 34 & 45

21

6512954

ROD END R.H. threads

22

17C620

BOLT

23

21G1024

SCREW 1.5'' (38,1 mm) Use W/Square Lever

23

21G1020

SCREW 1.25'' (31,7 mm) Use W/Teardrop Lever

24

6558736

FLANGE

25

LEVER NLA - L.H. - Order Ref. 20

26

6584863

SPACER Was 6577156 - A

27

6630874

BUSHING

28

SERVO See Illustration SERVO/ D1660

29

17C616

BOLT 5 Was 17C000612B - B

30

6584863

SPACER

31

6568627

ROD

32

6584289

BLOCK

33

6577327

BRACKET

34

85D10

NUT, 5

35

6568632

LINK

36

6569141

BOLT

37

6513963

GRIP

38

6578494

BELLCRANK Was 6576596 - A

39

62D6

NUT 5

40

6557831

WASHER

41

6577287

BRACKET

42

7D6

NUT lock - Was 17C000622B - B

43

17C512

BOLT 5

44

85D5

NUT 5

45

17C1048

BOLT

46

6701020

KIT See Illustration STEERING KIT/ B18615 for latest controls
