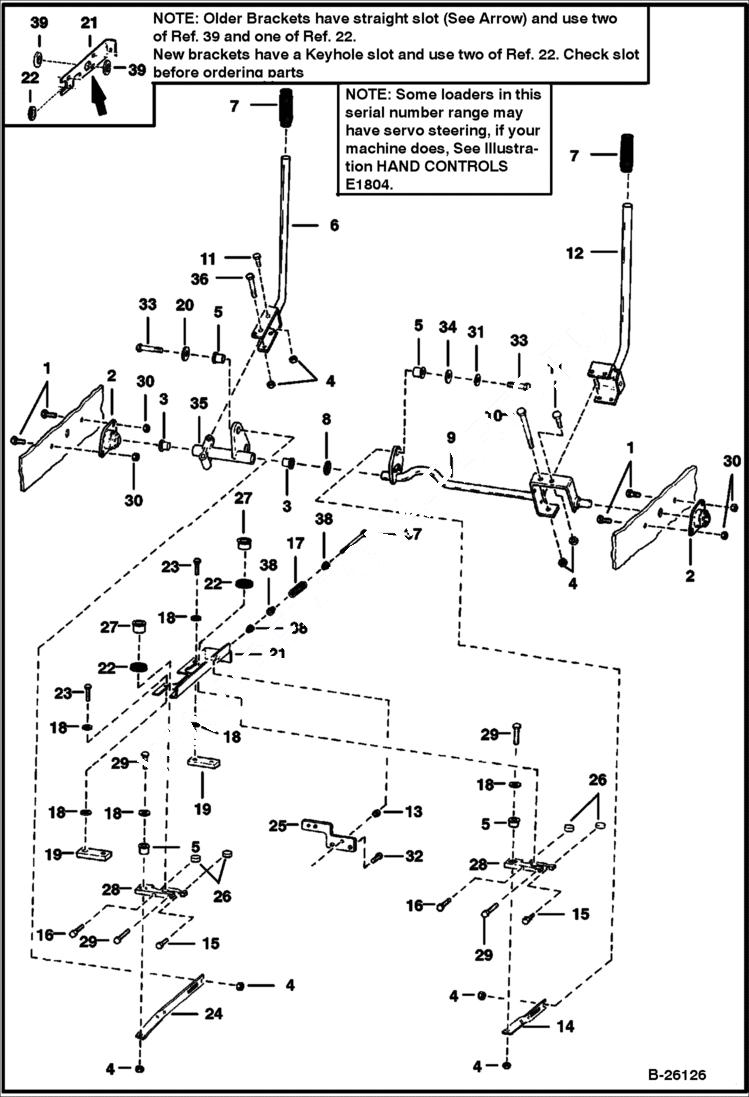

Запчасти Bobcat 800s HAND CONTROLS (S/N 24001-25999 & 34222-49999) HYDROSTATIC SYSTEM

1

35C612

BOLT

2

6558736

FLANGE

3

6512027

BUSHING

4

85D6

NUT, 5

5

6665701

BUSHING, PRESS FIT Was 6630081 - A

6

6569496

LEVER

7

6513963

GRIP

8

25E29

WSHR

9

6564727

SHAFT

10

6553081

BOLT

11

17C620

BOLT

12

6558615

HANDLE

13

85D8

NUT, 5

14

6565602

LINKAGE

15

17C614

BOLT

16

17C624

BOLT 5

17

6571904

SPRING

18

6557831

WASHER

19

6562281

BAR

20

6569505

WASHER

21

6702989

BRACKET SEE NOTE - Was 6571899 - A

22

6558436

GUIDE SEE NOTE

23

8C616

SCREW

24

6565601

LINKAGE

25

6571909

MOUNT

26

6562062

CAM lever

27

6567973

HUB

28

6565751

LEVER, PINTLE pintle

29

17C628

BOLT

30

83D6

NUT 5

31

6563914

WASHER

32

17C712

BOLT

33

17C626

BOLT

34

6563965

WASHER

35

6569507

LEVER

36

6569141

BOLT

37

17C896

BOLT Was 17C000696B - B

38

6571900

BUSHING

39

6558680

WASHER SEE NOTE
