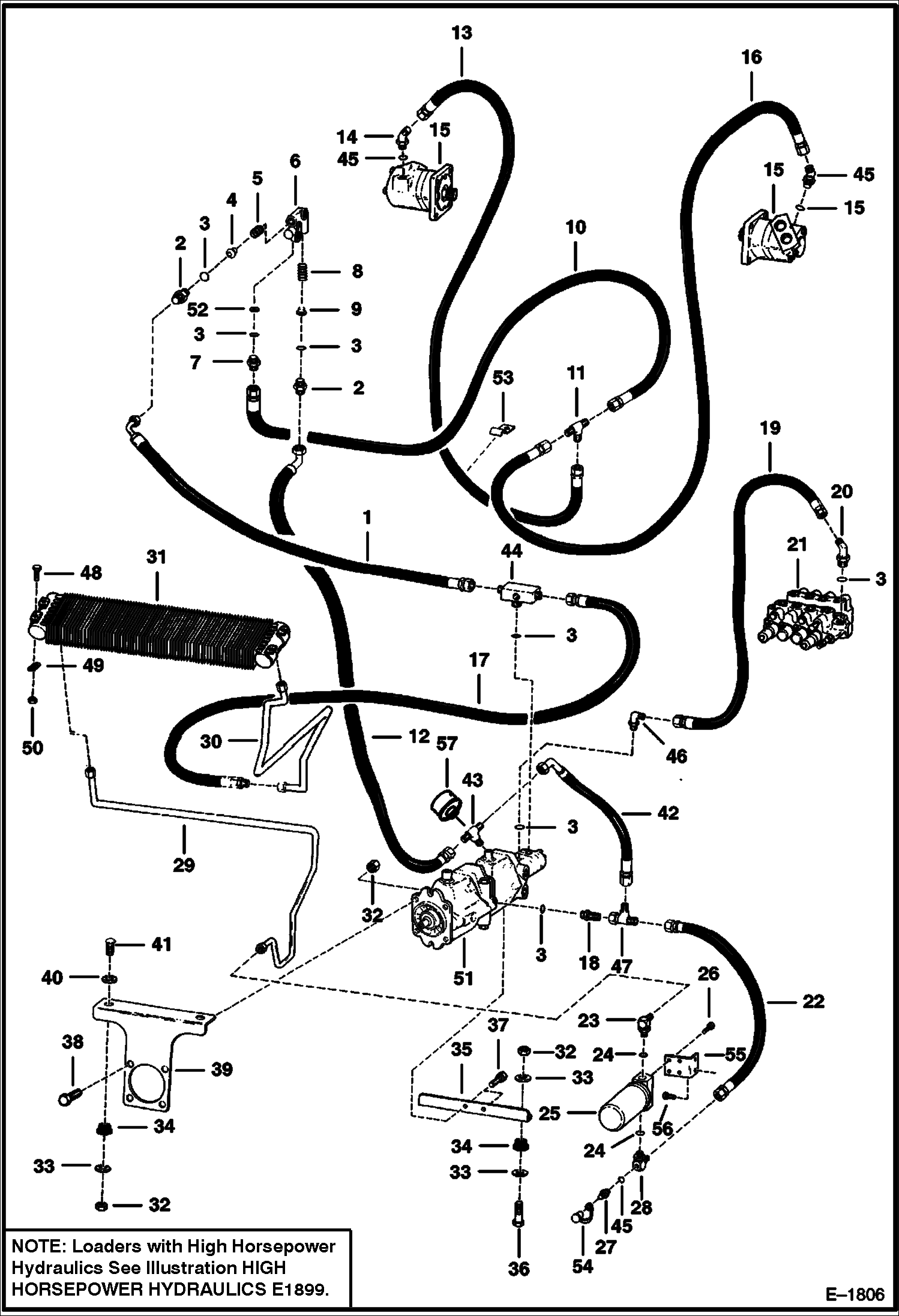

Запчасти Bobcat 800s HYDROSTATIC CIRCUITRY (S/N 26001 & Above) HYDROSTATIC SYSTEM

1

6577042

HOSE

2

15K7

FITTING W/Ref. 3

3

79K10

O RING 10

4

6515078

POPPET

5

6565425

SPRING

6

6565619

BLOCK port

7

731795

CONNECTR

8

6567020

SPRING

9

6565620

POPPET

10

1535863

HOSE

11

10K5

TEE

12

6567506

HOSE

13

6542521

HOSE

14

18K5

ELBOW W/Ref. 45

15

MOTOR See Illustration HYDROSTATIC MOTOR/ D1526

16

1326228

HOSE

17

6565991

HOSE

18

16K7

FITTING W/Ref. 3

19

6575845

HOSE

20

18K7

FITTING W/Ref. 3

21

VALVE See Illustration CONTROL VALVE/ B18453

22

6577411

HOSE Was 6577278 - A

23

17KB1012

FITTING, HYD ELBOW W/Ref. 24 - Was 1302104 - A

24

79K12

O RING 10

25

FILTER See Illustration HYDROSTATIC OIL FILTER/ C2818

26

17C610

BOLT

27

6630168

COUPLER diagnostic - Male - Order Female from OTC MEL-1218

28

6565999

ELBOW

29

6568582

TUBE

30

6567252

TUBE

31

6598438

OIL COOLER

32

85D8

NUT, 5

33

6564692

WASHER

34

6560633

DAMPENER rubber

35

6559453

MOUNT

36

17C836

BOLT

37

17C712

BOLT

38

17C824

BOLT 5

39

6562301

MOUNT

40

6560899

WASHER

41

35C840

BOLT

42

6575688

HOSE

43

6571583

TEE

44

6577257

TEE

45

79K6

O RING 10

46

17K7

ELBOW W/Ref. 3

47

13K7

FITTING

48

7C536

BOLT

49

774220

NUT

50

85D5

NUT 5

51

PUMP See Illustration HYDROSTATIC PUMP/ D1518A See Illustration HYDROSTATIC PUMP/ D1518

52

6599654

ORIFICE

53

5H8

CLIP

54

6630367

CAP dust

55

6565336

BRACKET

56

84G3720

BOLT

57

SENDER See Illustration ENGINE ELECTRICAL/ E1767
