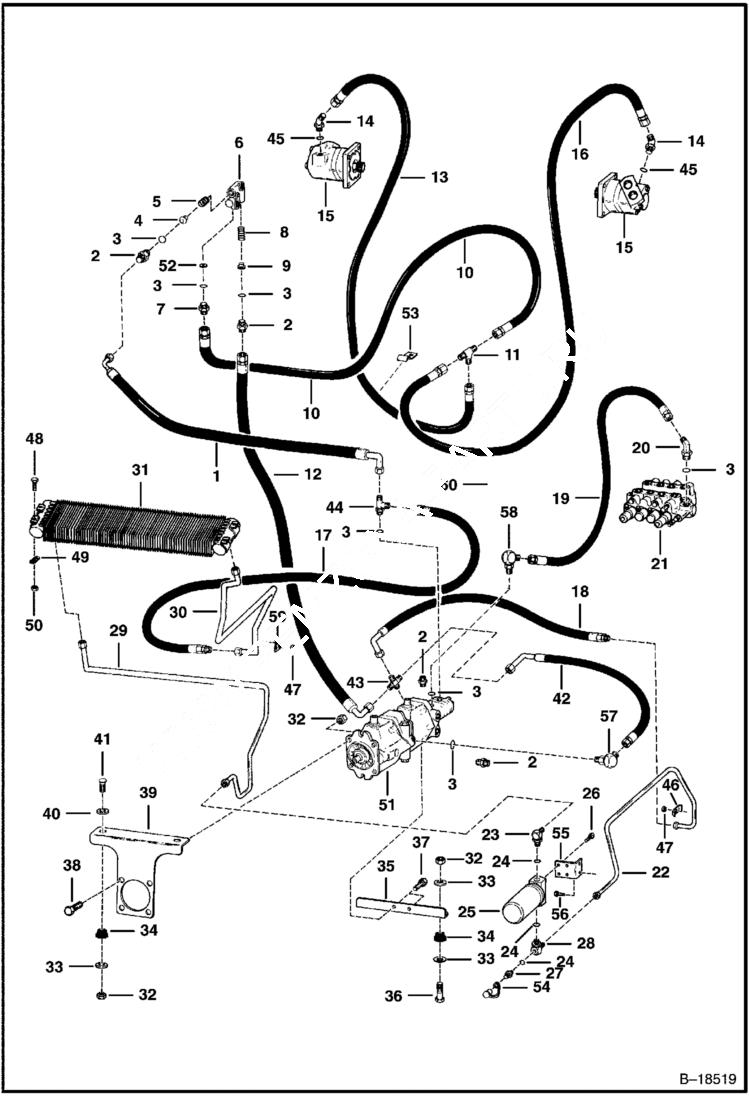

Запчасти Bobcat 800s HYDROSTATIC CIRCUITRY (S/N 24001 thru 25999) HYDROSTATIC SYSTEM

1

6568967

HOSE

2

15K7

FITTING W/Ref. 3

3

79K10

O RING 10

4

6515078

POPPET

5

6565425

SPRING

6

6565619

BLOCK

7

731795

CONNECTR

8

6567020

SPRING

9

6565620

POPPET

10

1535863

HOSE

11

10K5

TEE

12

6567506

HOSE

13

6542521

HOSE

14

18K5

ELBOW W/Ref. 45

15

MOTOR See Illustration HYDROSTATIC MOTOR/ D1526

16

1326228

HOSE

17

6565991

HOSE

18

6565625

HOSE

19

6575845

HOSE Was 6567347 - A

20

18K7

FITTING W/Ref. 3

21

VALVE See Illustration CONTROL VALVE/ B18453

22

6568584

TUBE

23

17KB1012

FITTING, HYD ELBOW W/Ref. 24 - Was 1302104 - A

24

79K12

O RING 10

25

FILTER See Illustration HYDROSTATIC OIL FILTER/ C2818

26

17C610

BOLT

27

6630168

COUPLER diagnostic - Male - Order Female from OTC MEL-1218

28

6565999

ELBOW

29

6568582

TUBE

30

6567252

TUBE

31

6598438

OIL COOLER

32

85D8

NUT, 5

33

6564692

WASHER

34

6560633

DAMPENER rubber

35

6559453

MOUNT

36

17C836

BOLT

37

17C712

BOLT

38

17C824

BOLT 5

39

6562301

MOUNT

40

6560899

WASHER

41

35C840

BOLT

42

TUBE NLA - Order 6575688 & Ref. 57 - Was 6569104 - A

42

6575688

HOSE

43

6567025

FITTING

44

21K7

TEE

45

79K6

O RING 10

46

6502203

CLAMP

47

85D6

NUT, 5

48

7C536

BOLT

49

774220

NUT

50

85D5

NUT 5

51

PUMP See Illustration HYDROSTATIC PUMP/ D1518A See Illustration HYDROSTATIC PUMP/ D1518

52

6599654

ORIFICE

53

5H8

CLIP

54

6630367

CAP dust

55

6565336

BRACKET

56

84G3720

BOLT

57

6519195

ELBOW W/Ref. 3

58

17K7

ELBOW W/Ref. 3

58

19K7

TEE W/Ref. 3

59

6H16

CLSD CLIP

60

36K7

FITTING
