Запчасти Bobcat 800s BUCKET POSITIONING VALVE (S/N 26662 & Below) HYDRAULIC SYSTEM

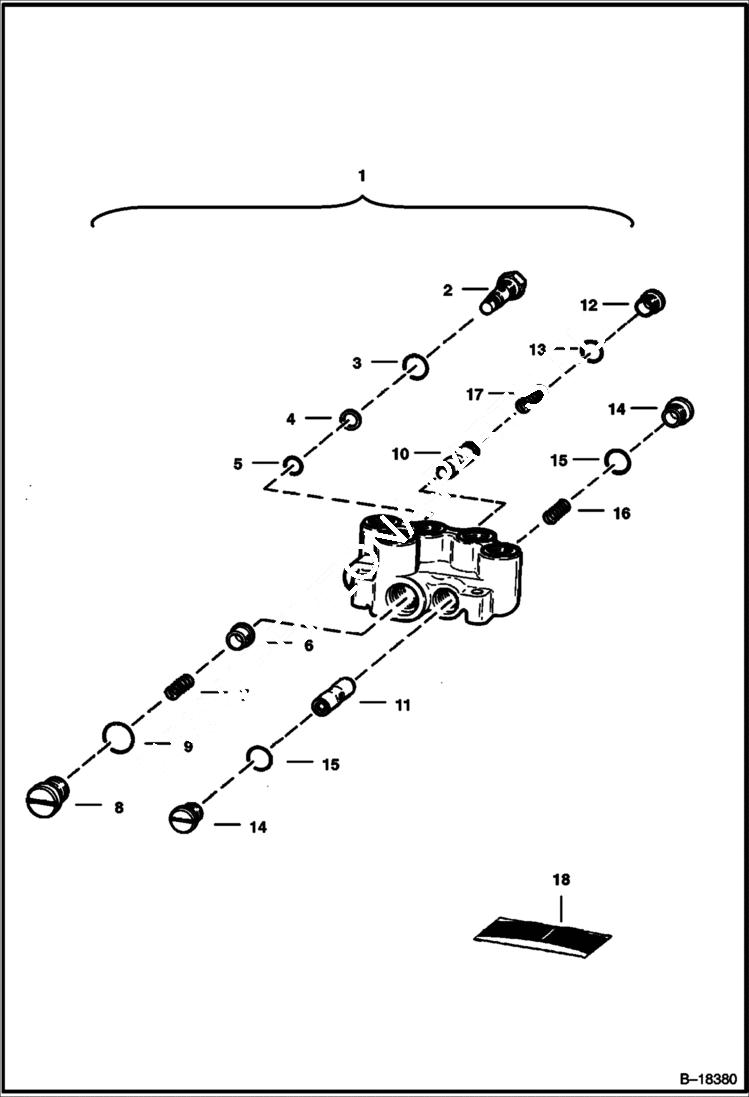

Схема запчастей Bobcat 800s - BUCKET POSITIONING VALVE (S/N 26662 & Below) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

VALVE NLA - Was 6630065 - A

2

6630333

RELIEF VALVE

3

O-RING NSS

4

WASHER NSS - back-up

5

O-RING NSS

6

947717

PLUNGER

7

947737

SPRING

8

6511372

PLUG W/Ref. 9

9

58K111

O RING 10

10

SPOOL NSS

11

SPOOL NSS

12

6630119

PLUG W/Ref. 13

13

58K114

O RING 10

14

6630120

PLUG W/Ref. 15

15

58K115

O RING

16

6630121

SPRING

17

6630115

SPRING

18

6630130

SEAL KIT W/Ref. 3-5, 9, 13 & 15

Выбрано товаров: 18
