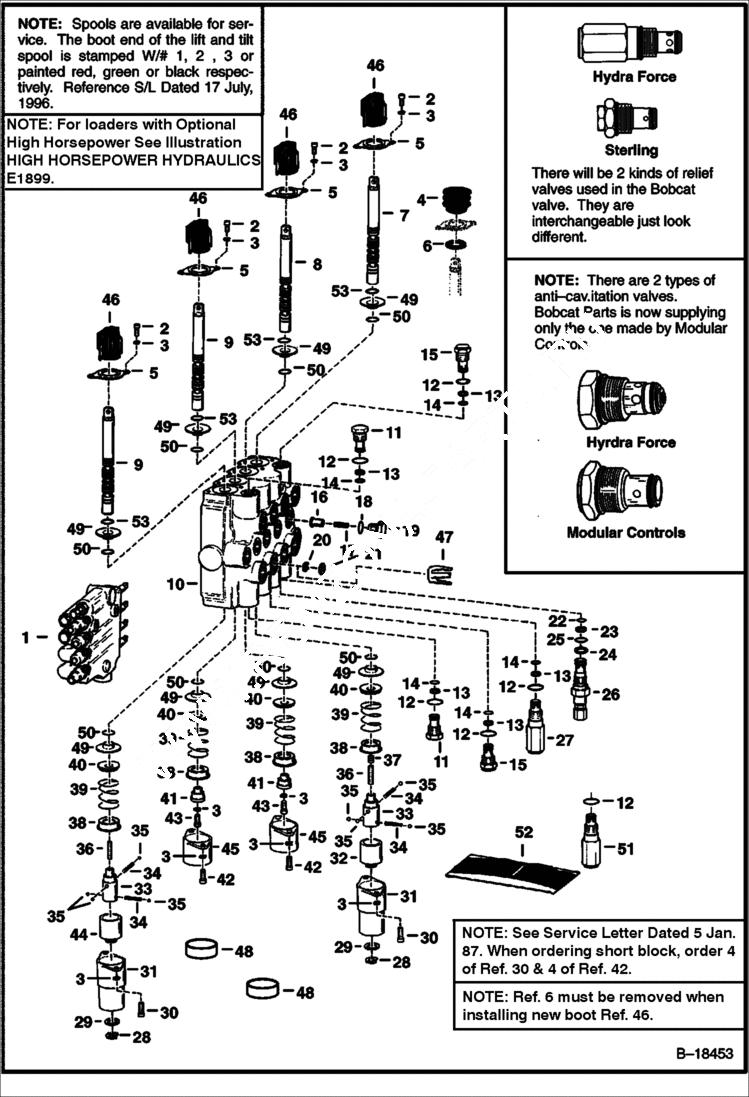

Запчасти Bobcat 800s CONTROL VALVE (Bobcat) HYDRAULIC SYSTEM

1

VALVE NLA - Order components - Ref. 2-48 - See instruction that comes with valve - Was 6539333 - A

1

6592740

SHORT BLOCK Ref. 2-10, 37, 49 & 50 - See Service Letter

2

73G410

SCREW

3

22E4

WASHER

4

BOOT NLA - Order Ref. 46 - Was 6592122 - A

5

6589564

RETAINER

6

FILTER NLA - sintered - Not Use W/Ref. 46 - Was 6592124 - A

7

6666582

SPOOL lift - #1 or red - SEE NOTE

7

6666583

SPOOL lift - #2 or green - SEE NOTE

7

6666584

SPOOL lift - #3 or black - SEE NOTE

8

6666585

SPOOL tilt - #1 or red - SEE NOTE

8

6666586

SPOOL tilt - #2 or green - SEE NOTE

8

6666587

SPOOL tilt - #3 or black - SEE NOTE

9

6592119

SPOOL auxiliary - SEE NOTE

10

6804529

VALVE, CONTROL SERVICE body

11

6592720

PLUG W/Ref. 12-14

12

79K10

O RING 10

13

80K14

BACK-UP WASHER Was 73K000014B - B

14

58K014

O-RING 10 back-up washer required - Was 25K20016 - B

14

6677106

O-RING BACK-UP WASHER NOT REQUIRED

15

6667549

VALVE anti-cavity - W/Ref. 12-14 - SEE NOTE - Was 6661345 - A

16

6592115

SEAT

17

6592117

SPRING, LOAD CHECK

18

79K8

O RING 10

19

6592116

NUT load check

20

6592111

ORIFICE .161/.154

21

6593680

RETAINER

22

O-RING NSS

23

WASHER NSS - back-up

24

O-RING NSS

25

WASHER NSS - back-up

26

VALVE NLA - Main Relief - W/Ref. 22-25 - Pressure Preset At Factory - Was 6676199 - A

26

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

27

6599161

RELIEF VALVE W/Ref. 12-14 - SEE NOTE

28

799119

RING

29

6592098

WASHER

30

6588163

SCREW Was 69G000412B - B

31

6592094

BONNET

32

6592096

SLEEVE lift

33

6587575

ADAPTER Was 6592099 - A

34

6592107

SPRING

35

6592105

BALL

36

6586918

SCREW Was 6535747 - A

37

PLUG NLA - plastic - Order 6596807 Plug & 54K-20002 O-ring - Was 6592752 - A

37

6596807

PLUG plastic - 0.46'' long

37

54K20002

O'RING 10

38

6592100

COLLAR

39

6587580

SPRING Was 6592106 - A

40

7211397

WASHER, SPRING Was 6587523 - A

41

6592109

ADAPTER

42

69G414

BOLT Was 6588164 - A

43

74G416

SCREW

44

6593349

SLEEVE auxiliary

45

7101345

BONNET, DETENT HYD VALVE Order Ref. 42, 45 & 48 - Was 6587633 - A

45

7101345

BONNET, DETENT HYD VALVE Order Ref. 42, 45 & 48

46

6587763

BOOT Was 6583727 - A

47

6532633

RESTRICTOR 0.153

48

6662848

CAP

49

6592103

BUSHING See Service Letter dated 5 Jan. 87

49

6538466

BUSHING With part # stamped on face - Was 6534866 - D

50

6665089

SEAL See BTI374 lip seal - Was 6659554 - A

50

6646372

SEAL See BTI374 quad ring seal

50

6665846

SEAL Use W/Ref. 53

51

6664373

VALVE optional port relief & anti cav. W/Ref. 12 - Use in tilt cylinder base end port

52

6816251

KIT, SEAL See BTI374 - Ref. 12-14, 18, 22-25, 37, 46, 50 & 53 - Was 6816717 - A

52

6816250

KIT, SEAL Ref. 30, 46, 49 & 50 - For One Spool - Was 6803605 - A

52

6661328

SEAL KIT main relief seal - Ref. 22-25

52

6809425

SEAL KIT Upper Deck - Ref. 12-14 & 18 - Was 6586461 - A

53

1K127

O-RING 10 Was 93K127 - A
