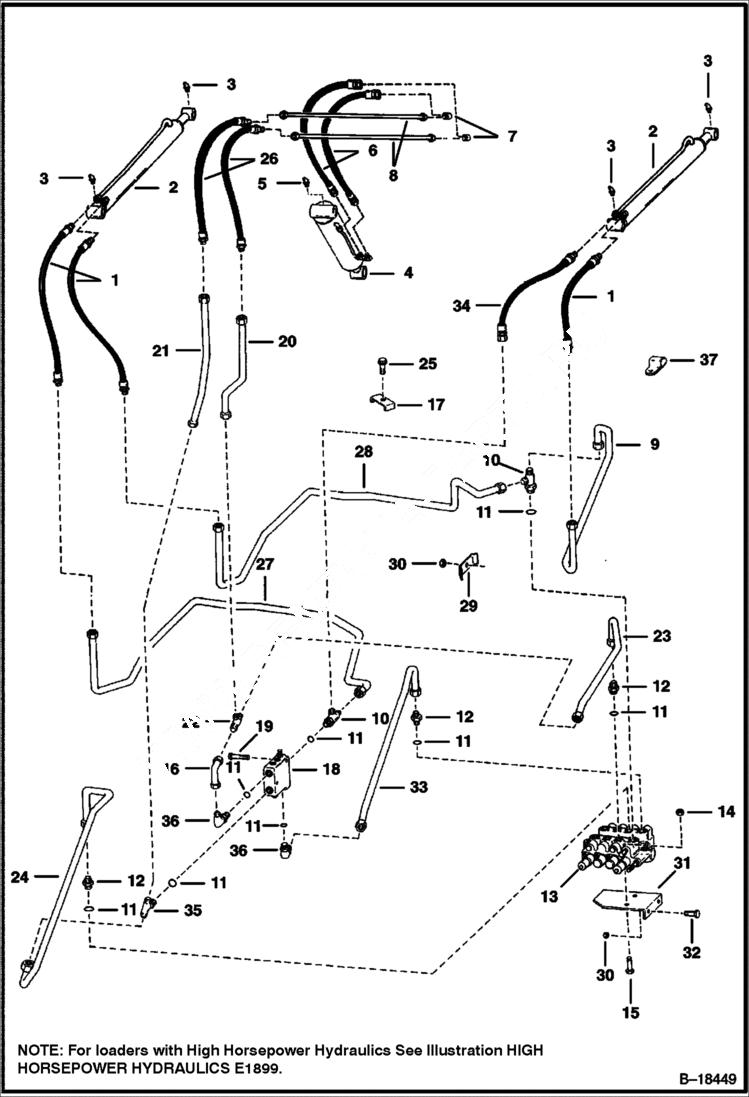

Запчасти Bobcat 800s HYDRAULIC CIRCUITRY (S/N 26663 & Above) HYDRAULIC SYSTEM

1

6543063

HOSE

2

CYLINDER See Illustration LIFT CYLINDER/ B18253 Lift

3

11H25

FITTING10

4

CYLINDER See Illustration TILT CYLINDER/ B18257 Tilt

5

10H25

FITTING, GREASE 5

6

659892

HOSE ASSY

7

77F7

ELBOW

8

6559442

TUBE

9

6569415

TUBE

10

21K7

TEE W/Ref. 11

11

79K10

O RING 10

12

15K7

FITTING W/Ref. 11

13

VALVE See Illustration CONTROL VALVE/ B18453

14

85D5

NUT 5

15

17C560

BOLT

16

6569420

TUBE

17

6591804

CLAMP

18

VALVE See Illustration BUCKET POSITIONING VALVE/ B18380 See Illustration BUCKET POSITIONING VALVE/ C3062 bucket positioning

19

17C540

BOLT

20

6569419

TUBE

21

6569418

TUBE

22

10K7

TEE

23

6569414

TUBE

24

6569413

TUBE

25

84G3724

BOLT

26

6560402

HOSE

27

6569411

TUBE

28

6578852

TUBE Was 6569412 - A

29

6502203

CLAMP

30

85D6

NUT, 5

31

6565558

MOUNT valve

32

17C616

BOLT 5

33

6569416

TUBE

34

6577040

HOSE

35

19K7

TEE W/Ref. 11

36

17K7

ELBOW W/Ref. 11

37

6H16

CLSD CLIP
