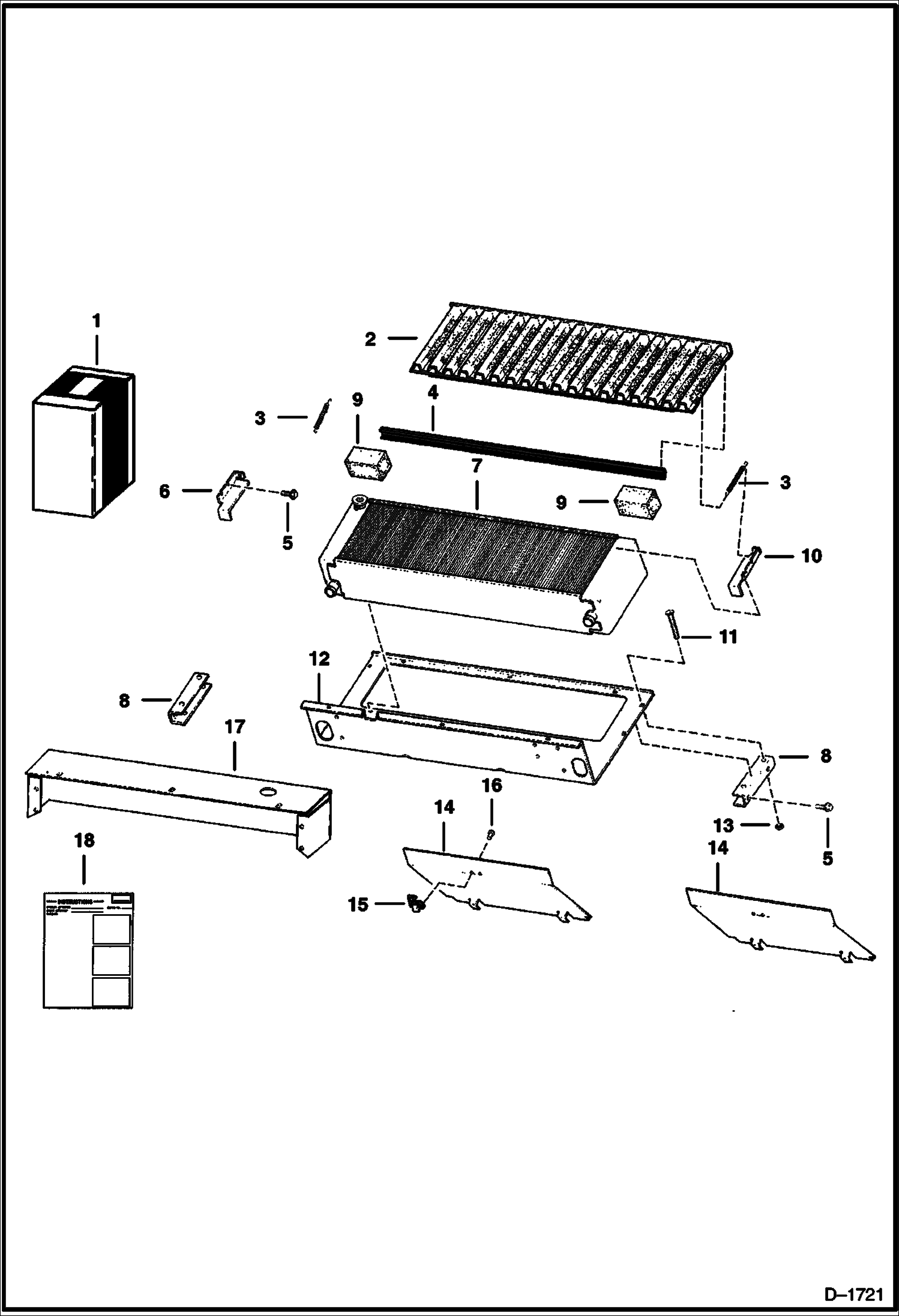

Запчасти Bobcat 800s ENGINE COOLANT KIT ACCESSORIES & OPTIONS

1

6569297

KIT

2

6567714

GRILL rear

3

6630533

SPRING

4

4126590

MOULDING bulk - sold per foot

5

84G3712

BOLT 5 self-threading

6

6567893

RETAINER retainer

7

6630558

RADIATOR

8

6567719

CHANNEL channel

9

6554274

INSULATION foam - Bulk - Sold Per Foot

10

6567892

RETAINER retainer

11

7C536

BOLT

12

6567715

SHIELD heat

13

57D5

NUT

14

6567718

COVER

15

6598955

LATCH

16

6631024

RIVET

17

6567720

SHIELD muffler

18

INSTRUCTIONS NLA - Print Instructions from BASS - Was 6570084 - A
